| Product characteristics |
| Frequency range [Hz] |
0.1...12000 |
| Application |
| Design |
parameter setting via PC software VES004 |
| Application |
continuous vibration monitoring |
| Electrical data |
| Operating voltage tolerance [%] |
20 |
| Operating voltage [V] |
24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) |
| Current consumption [mA] |
200; ((24 V DC)) |
| Protection class |
III |
| Inputs / outputs |
| Total number of inputs and outputs |
8; (configurable) |
| Number of inputs and outputs |
Number of analogue inputs: 2; number of dynamic inputs: 4; Number of digital outputs: 2; Number of analogue outputs: 1 |
| Inputs |
| Total number of inputs |
6 |
| Number of analogue inputs |
2 |
| Analogue input (current) [mA] |
4...20 |
| Resolution of analogue input |
12 |
| Number of dynamic inputs |
4 |
| Dynamic input - signal |
0...10 mA / IEPE / 4...20 mA |
| Dynamic input - resolution [bit] |
16 |
| Dynamic input - frequency range [Hz] |
0,1...12000 |
| Dynamic input - sampling rate [kSamples] |
100 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal |
| Electrical design |
PNP |
| Number of digital outputs |
2; (configurable) |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
100 |
| Number of analogue outputs |
1; (configurable) |
| Analogue current output [mA] |
4...20 |
| Max. load [Ω] |
500 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Frequency range [Hz] |
0.1...12000 |
| Interfaces |
| Communication interface |
Ethernet |
| Transmission rate |
10 MBaud; 100 MBaud |
| Protocol |
PROFINET IO |
| Operating conditions |
| Ambient temperature [°C] |
0...60 |
| Storage temperature [°C] |
0...60 |
| Protection |
IP 20 |
| Tests / approvals |
| EMC |
| EN 61000-4-2 ESD |
4 kV contact discharge / 15 kV air discharge |
| EN 61000-4-3 |
10 V/m (80...2700 MHz) |
| EN 61000-4-4 Burst |
4 kV capacitive coupling probe, earthed |
| EN 61000-4-6 |
10 V 0,15...80 MHz |
| EN 61000-6-4 |
industrial environments |
|
| MTTF [years] |
92 |
| UL approval |
| Ta |
0...60 °C |
| Enclosure type |
open Type |
| power supply |
Limited Voltage/Current |
| UL Approval no. |
L001 |
|
| Mechanical data |
| Weight [g] |
415.1 |
| Housing |
plastic housing |
| Type of mounting |
rail; (TH35/EN60715) |

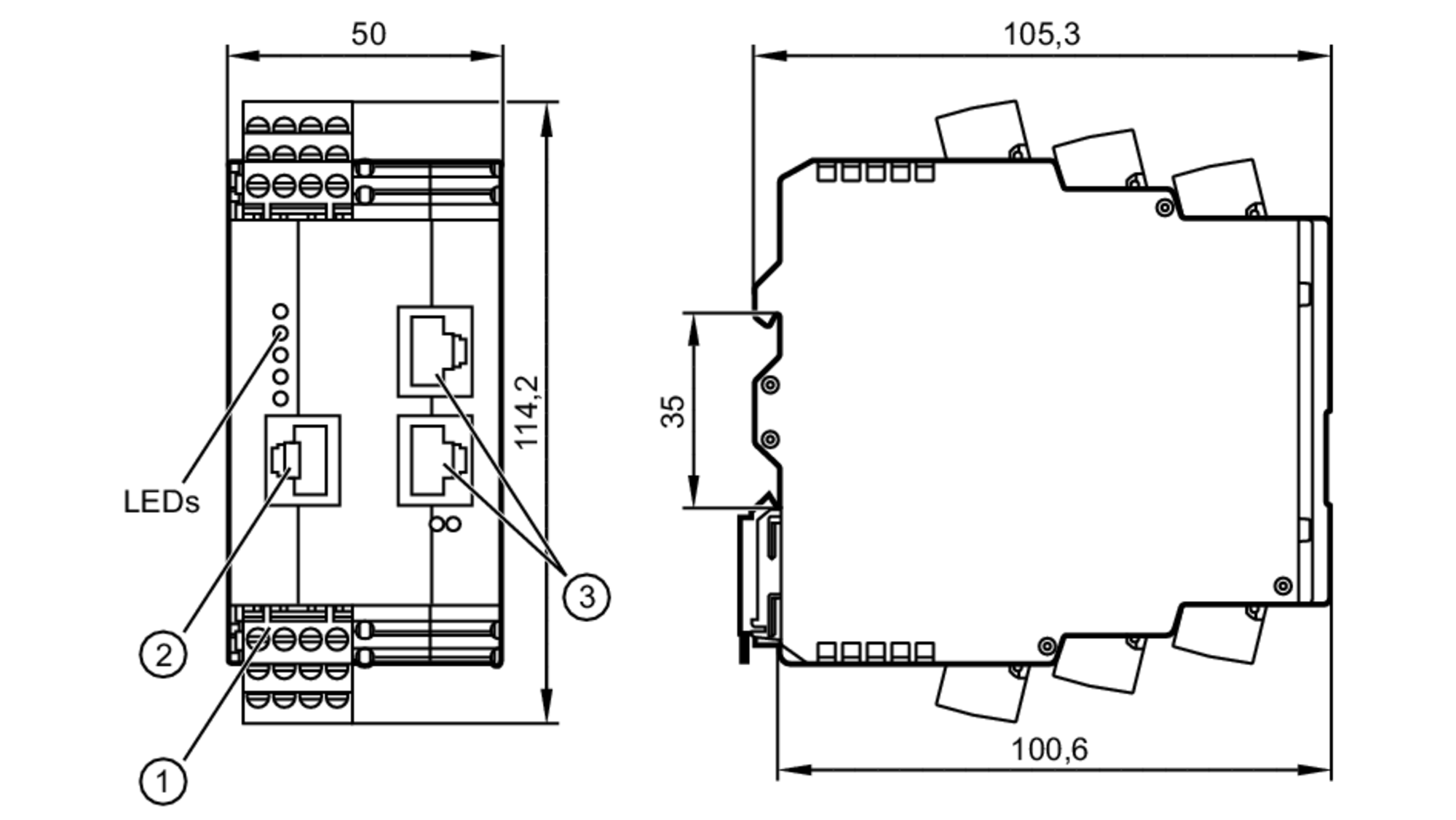

| Dimensions [mm] |
114.2 x 50 x 105.3 |
| Materials |
PA |
| Data memories |
| Real-time clock |
yes; |
| Accessories |
| Accessories (optional) |
| cross-over Ethernet patch cable for the direct connection to the PC |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
COMBICON: |
