| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Measuring range |
| -50...150 °C |
-58...302 °F |
|
| Process connection |
threaded connection G 1/2 |
| Installation length EL [mm] |
150 |
| Application |
| Special feature |
Gold-plated contacts |
| Measuring element |
1 x Pt 1000; (to DIN EN 60751, class A) |
| Media |
liquids and gases |
| Pressure rating [bar] |
250 |
| Electrical data |
| Operating voltage [V] |
18...32 DC; ("supply class 2" to cULus) |
| Current consumption [mA] |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
1 |
| Integrated watchdog |
yes |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
250 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4...20 |
| Max. load [Ω] |
500 |
| Analogue voltage output [V] |
0...10 |
| Min. load resistance [Ω] |
2000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
| -50...150 °C |
-58...302 °F |
|
| Factory setting |
-50...150 °C |
| Set point SP |
| -49.8...150 °C |
-57.6...302 °F |
|
| Reset point rP |
| -50...149.8 °C |
-58...301.6 °F |
|
| Analogue start point |
| -50...145 °C |
-58...293 °F |
|
| Analogue end point |
| -45...150 °C |
-49...302 °F |
|
| In steps of |
|
| Resolution |
| Resolution of switching output [K] |
0.1 |
| Resolution of analogue output [K] |
current output: MS / 4096; voltage output: MS / 3561 |
| Resolution of display [K] |
0.1 |
| Accuracy / deviations |
| Switch point accuracy [K] |
± 0,3 + (± 0,1 % MS) |
| Precision analogue output [K] |
± 0,3 + (± 0,1 % MS) |
| Display accuracy [K] |
± 0,3 + (± 0,1 % MS) |
| Temperature coefficient [% of the span / 10 K] |
0,1; (in case of deviation from the reference condition 25 ± 5 °C) |
| Response times |
| Dynamic response T05 / T09 [s] |
1 / 3; (to DIN EN 60751) |
| Software / programming |
| Parameter setting options |
hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit; current/voltage output |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| Operating conditions |
| Ambient temperature [°C] |
-25...80 |
| Storage temperature [°C] |
-40...100 |
| Protection |
IP 67 |
| Tests / approvals |
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-3 |
|
|
| Shock resistance |
| DIN IEC 68-2-27 |
50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
20 g (10...2000 Hz) |
|
| MTTF [years] |
207 |
| UL approval |
|

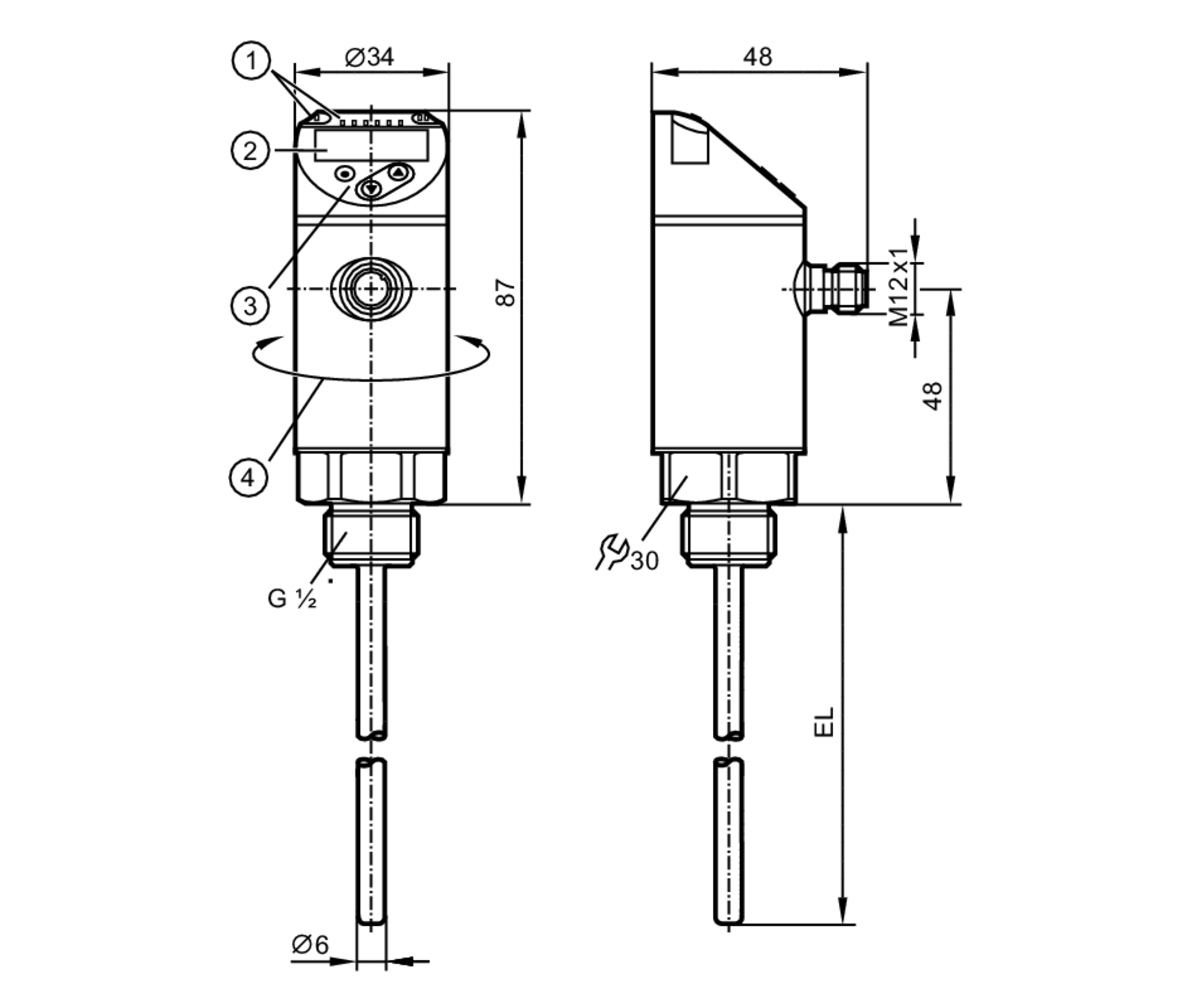

| Mechanical data |
| Weight [g] |
311 |
| Materials |
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); O-ring: FKM |
| Tightening torque [Nm] |
45 |
| Process connection |
threaded connection G 1/2 |
| Installation length EL [mm] |
150 |
| Displays / operating elements |
| Display |
| Display unit |
2 x LED, green |
| switching status |
2 x LED, yellow |
| measured values |
alphanumeric display, red/green 4-digit |
|
| Remarks |
| Remarks |
| MS = set measuring span |
| The values for accuracy apply to flowing water. |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
