| Product characteristics |
| Measuring range |
| -1...40 bar |
-14.6...580.2 psi |
-0.1...4 MPa |
|
| Process connection |
threaded connection G 1/2 external thread sealing cone |
| Application |
| Special feature |
Gold-plated contacts |
| Measuring element |
ceramic-capacitive pressure measuring cell |
| Temperature monitoring |
yes |
| Application |
flush mountable for the food and beverage industry |
| Media |
viscous media and liquids with suspended particles; liquids and gases |
| Conditionally suitable for |
use in gases at pressures > 25 bar only on request |
| Medium temperature [°C] |
-25...125; (< 1h : 150) |
| Min. bursting pressure |
|
| Pressure rating |
|
| Vacuum resistance [mbar] |
-1000 |
| Type of pressure |
relative pressure |
| No dead space |
yes |
| MAWP (for applications according to CRN) [bar] |
51.5 |
| Electrical data |
| Operating voltage [V] |
18...30 DC |
| Min. insulation resistance [MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Integrated watchdog |
yes |
| 2-wire |
| Current consumption [mA] |
3.5...21.5 |
| Power-on delay time [s] |
< 1 |
| 3-wire |
| Current consumption [mA] |
< 45 |
| Power-on delay time [s] |
< 0.5 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
analogue signal; IO-Link |
| Analogue current output [mA] |
4...20; (scalable; 1:5) |
| Max. load [Ω] |
700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA) |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
| -1...40 bar |
-14.6...580.2 psi |
-0.1...4 MPa |
|
| Analogue start point |
| -1...32 bar |
-14.6...462.2 psi |
-0.1...3.2 MPa |
|
| Analogue end point |
| 7...40 bar |
101.6...580.2 psi |
0.7...4 MPa |
|
| In steps of |
| 0.02 bar |
0.2 psi |
0.002 MPa |
|
| Factory setting |
| ASP = 0.0 bar |
AEP = 40.0 bar |
|
|
| Temperature monitoring |
| Measuring range |
| -25...150 °C |
-13...302 °F |
|
| Accuracy / deviations |
| Repeatability [K] |
± 0,2 |
| Resolution [K] |
0.2 |
| Repeatability [% of the span] |
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation [% of the span] |
< ± 0,5; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation [% of the span] |
< ± 0,15; (Turn down 1:1) |
| Hysteresis deviation [% of the span] |
< ± 0,15; (Turn down 1:1) |
| Long-term stability [% of the span] |
< ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point [% of the span / 10 K] |
< ± 0,1 (-25...85 °C); < ± 0,3 (85...150 °C) |
| Temperature coefficient span [% of the span / 10 K] |
< ± 0,1 (-25...85 °C); < ± 0,3 (85...150 °C) |
| Temperature monitoring |
| Accuracy [K] |
± 2.5 K + (0.045 x (ambient temperature - medium temperature)) |
| Response times |
| Damping for the analogue output dAA [s] |
0...4 |
| 2-wire |
| Step response time analogue output [ms] |
30 |
| 3-wire |
| Step response time analogue output [ms] |
7 |
| Temperature monitoring |
| Dynamic response T05 / T09 [s] |
< 10 / < 25; (DIN EN 60751 water; > 0,9 m/s) |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor ED2: Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A) |
| SIO mode |
no |
| Required master port type |
A; (when pin 2 not connected: B) |
| Min. process cycle time [ms] |
4.5 |
| IO-Link resolution pressure [bar] |
0.01 |
| IO-Link resolution temperature [K] |
0.2 |
| IO-Link process data (cyclical) |
| function |
bit length |
| pressure |
16 |
| temperature |
16 |
| device status |
4 |
|
| IO-Link functions (acyclical) |
application specific tag; internal temperature |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
1018 |
|
| Operating conditions |
| Ambient temperature [°C] |
-25...80 |
| Storage temperature [°C] |
-40...100 |
| Protection |
IP 67; IP 68; IP 69K |
| Tests / approvals |
| EMC |
|
| Shock resistance |
| DIN EN 60068-2-27 |
50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
20 g (10...2000 Hz) |
|
| MTTF [years] |
322 |
| Note on approval |
| factory certificate available as download at www.factory-certificate.ifm |
|
| UL approval |
| UL Approval no. |
J024 |
| File number UL |
E174189 |
|

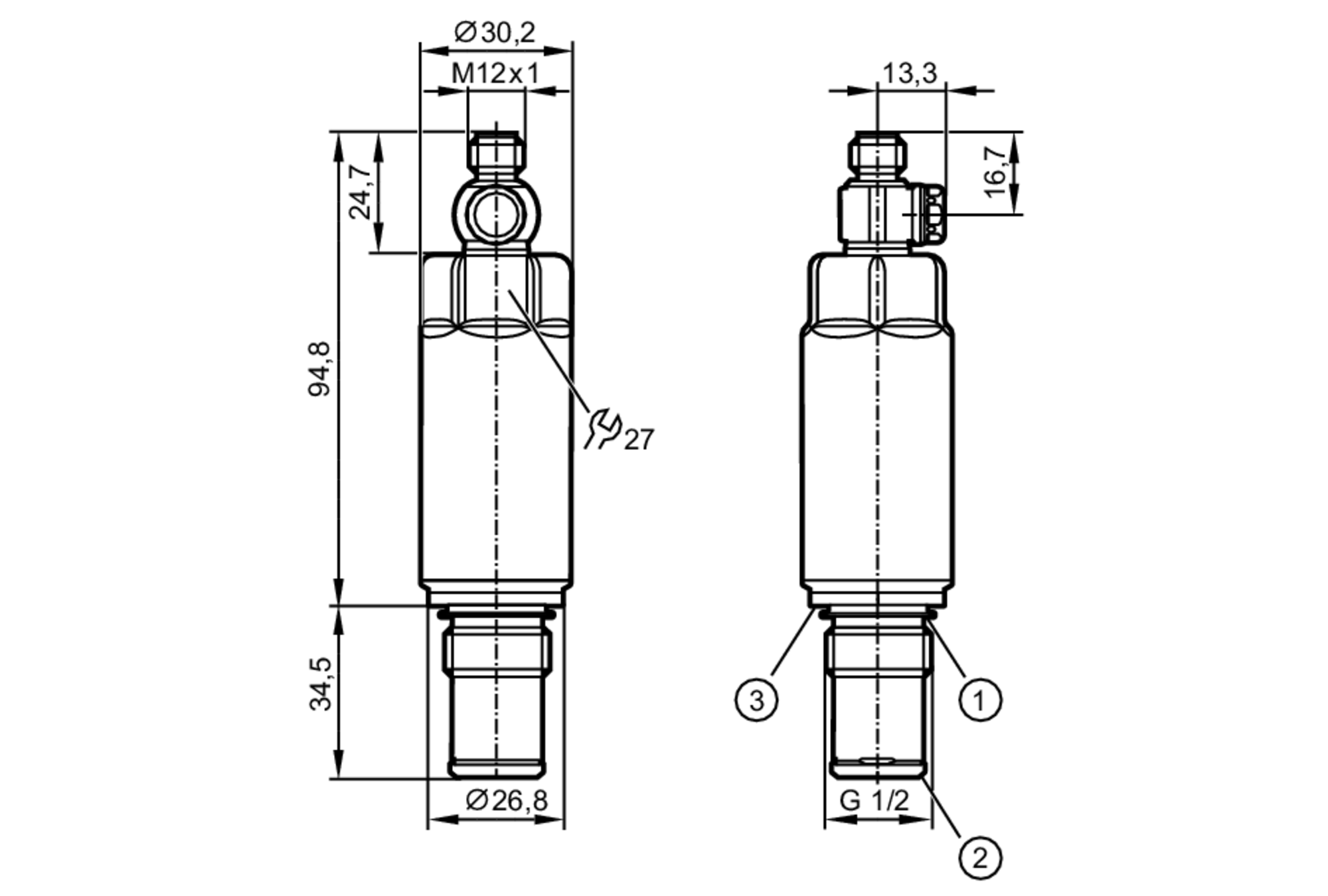

| Mechanical data |
| Weight [g] |
266.6 |
| Materials |
stainless steel (1.4404 / 316L); PTFE; FKM |
| Materials (wetted parts) |
ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PEEK; PTFE |
| Min. pressure cycles |
100 million |
| Tightening torque [Nm] |
20 |
| Process connection |
threaded connection G 1/2 external thread sealing cone |
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
