Through-beam sensor receiver

OGE302

OGE-DPKG/6M

Through-beam sensor receiver

OGE302

OGE-DPKG/6M

  • Robust stainless steel housing for use in the food and beverage industry
  • Resistant to high-pressure cleaning with aggressive cleaning agents
  • High protection rating for the requirements of harsh industrial environments
  • Ready for operation immediately thanks to fixed setting
  • Very long range
{{ifmVariantName}}

PDF data sheet
  • ce
  • ukca
  • eac
  • cul
Technical details
Product characteristics
Type of light red light
Housing threaded type
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 10
Protection class II
Reverse polarity protection yes
Type of light red light
Outputs
Electrical design PNP
Output function dark-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 150; (200 (...60 °C))
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Transmitter / receiver receiver
Range [m] < 20
Range adjustable no
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65; IP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1112
Mechanical data
Weight [g] 255.8
Housing threaded type
Dimensions [mm] M18 x 1 / L = 68.6
Thread designation M18 x 1
Materials housing: stainless steel (1.4404 / 316L); Sealing: EPDM
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Items supplied
lock nuts: 2 x
Remarks
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity 1 pcs.

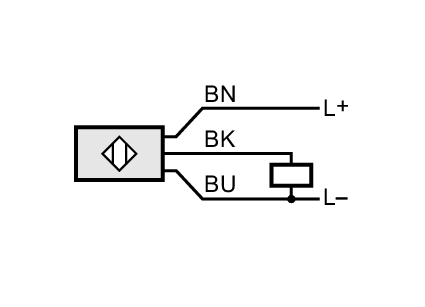

Electrical connection
Connection Cable: 6 m, PVC; 3 x 0.34 mm²
Diagrams and graphs

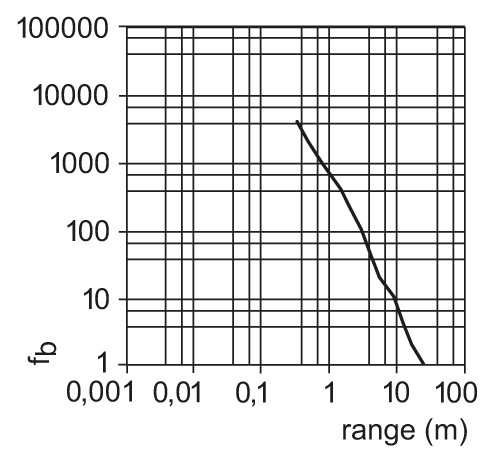

excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGE302-00 — 07.07.2009 —
