IER200

Inductive full-metal sensor

IEK3002BBPKG/AM/SC/US-104-DPS

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • For use in machine tools and metalworking
  • Resistant to weld slag thanks to non-stick coating
  • Metal sensing face for heavy duty
  • Long sensing range for high uptime
  • Excellent price/performance ratio
  • ce
  • eac
  • cul
Download
Technische Details
Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 2
Housing threaded type
Dimensions [mm] M8 x 1 / L = 60
Application
Special feature Gold-plated contacts; Increased sensing range; Full-metal housing; anti-spatter
Application Use in welding applications
Pressure rating [bar] 100
Note on pressure rating
sensing face
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 20
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 100
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range [mm] 2
Real sensing range Sr [mm] 2 ± 10 %
Operating distance [mm] 0...1.6
Increased sensing range yes
Accuracy / deviations
Correction factor stainless steel: 0.6 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr] 1...15
Switch point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] 0...85
Protection IP 67; IP 68
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
Impact resistance
EN 60068-2-27 Ehc 1 J
MTTF [years] 1978
UL approval
Ta 0...40 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current
File number UL E174191
Mechanical data
Weight [g] 20.9
Housing threaded type
Mounting flush mountable
Dimensions [mm] M8 x 1 / L = 60
Thread designation M8 x 1
Materials housing: stainless steel (1.4404 / 316L) anti-spatter; sensing face: stainless steel (1.4404 / 316L) anti-spatter; lock nuts: stainless steel (1.4404 / 316L) anti-spatter
Tightening torque [Nm] 3.5
Full-metal housing yes
Displays / operating elements
Display
switching status 4 x LED, yellow
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Connector: 1 x M12; Contacts: gold-plated
Diagrams and graphs

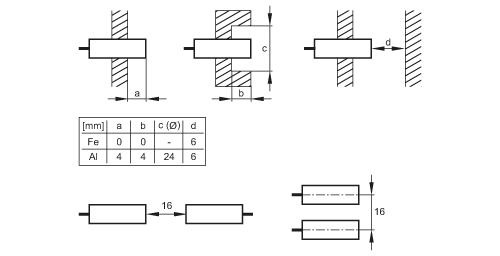

Installation
