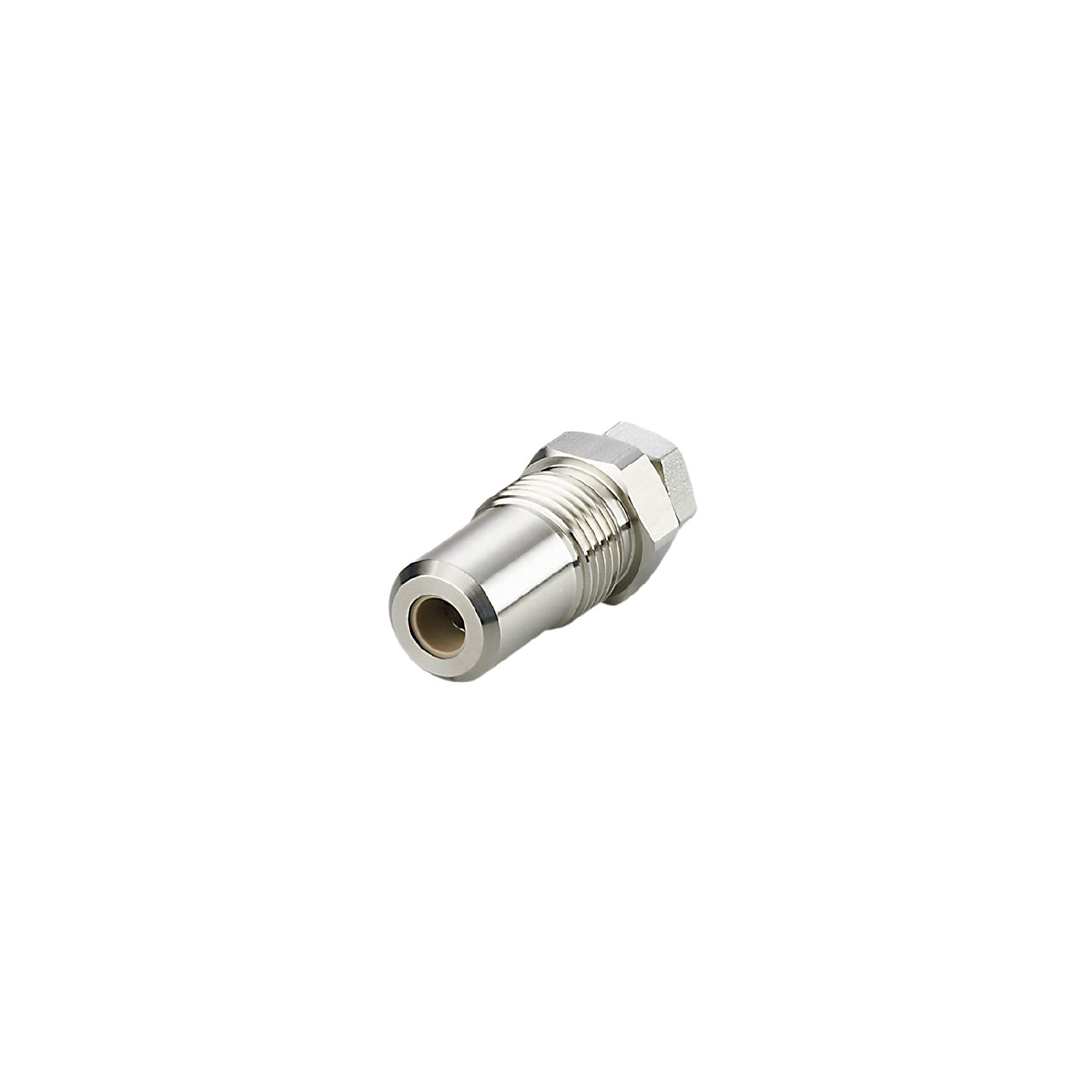

Clamp fitting for process sensors

E43020

G 1/2" COMPRESSION FITTING 8MM

Clamp fitting for process sensors

E43020

G 1/2" COMPRESSION FITTING 8MM

  • For the installation of flow and temperature sensors in containers and pipes
  • Easy, quick and secure mounting
  • Easy adjustment of the immersion depth of the sensor
  • Stainless steel adapter for the requirements of the food and beverage industry
  • fda
  • ec19352004
Application
Application hygienic systems
Installation Clamp fitting
Media viscous media and liquids with suspended particles
Pressure rating [bar] 10
No dead space yes
Operating conditions
Ambient temperature [°C] -10...150
Mechanical data
Weight [g] 100
Materials stainless steel (1.4404 / 316L); clamping ring: PEEK
Tightening torque [Nm] < 10; (screw-in adapter; 10 ± 1 Clamp adapter)
Sensor connection Ø 8 mm
Process connection threaded connection G 1/2 sealing cone
Remarks
Pack quantity 1 pcs.
