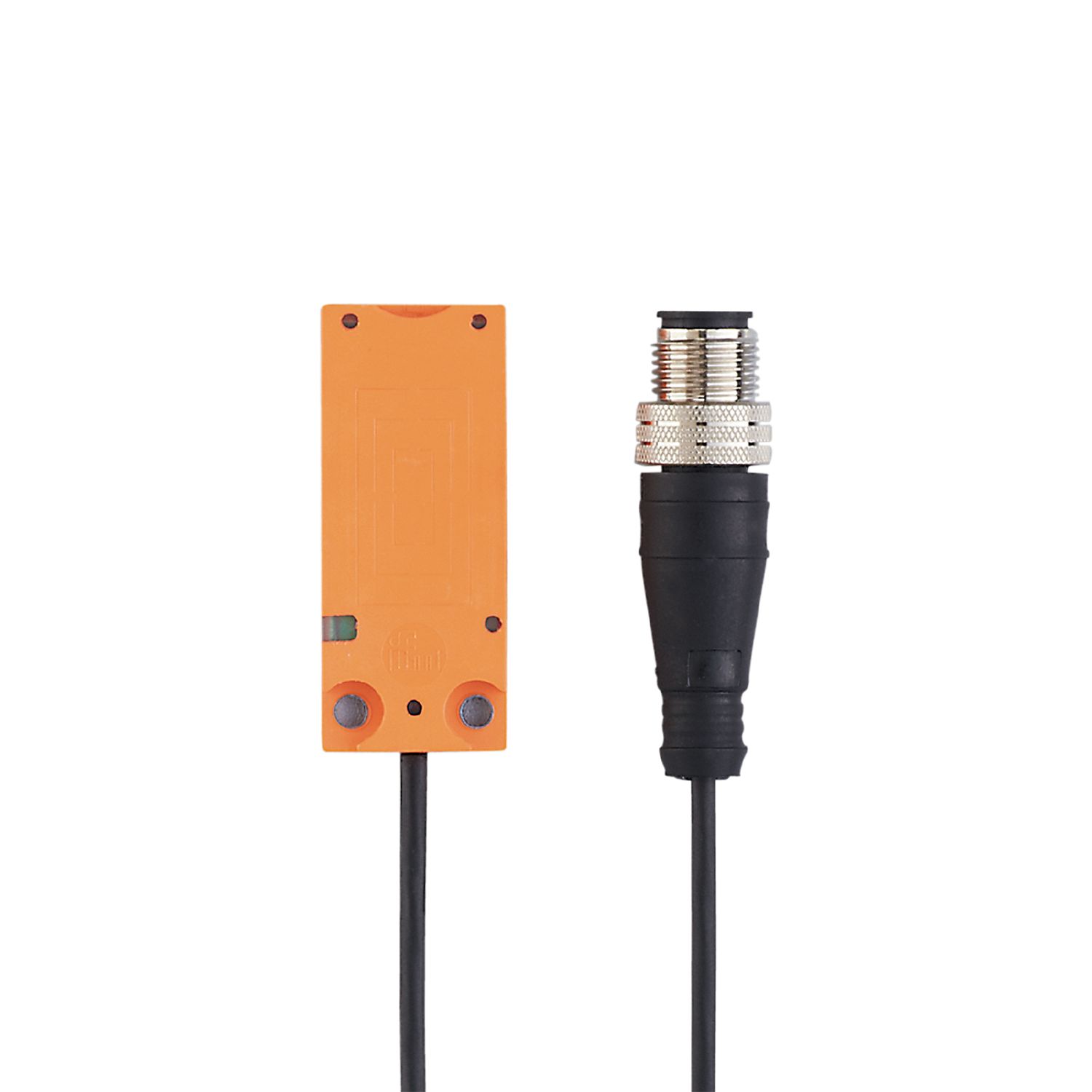

RFID read/write head HF

DTRHF KQRWIOUS03

DTI516

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • ce
  • cul
  • iolink
Download
Technische Details
Application
Application detection of objects on transport equipment
Radio approval for Europe; Japan; Australia; China; Taiwan; India; Singapore
Electrical data
Operating voltage [V] 19.2...28.8 DC
Current consumption [mA] < 50
Protection class III
Operating frequency [MHz] 13,56
RFID standard ISO 15693
Detection zone
Distance write/read head front [mm] 120
Distance write/read head side [mm] 100
Distance to the ID tag [mm]
referred to 30 mm coin tag and antenna installed on metal, I-CODE SLI : ≤ 32
Interfaces
Communication interface IO-Link
Transmission type COM2 (38.4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
IO-Link device ID 967 d / 00 03 C7 h
Profiles Smart Sensor: Device Identification
SIO mode no
Required master port type A
Operating conditions
Ambient temperature [°C] -20...60
Storage temperature [°C] -25...80
Protection IP 67; IP 69K
Tests / approvals
EMC
DIN EN 301489-3
Shock resistance
EN 60068-2-27 40 g 6 ms / repetitive
EN 60068-2-27 50 g 11 ms / not repetitive
Vibration resistance
EN 60068-2-6 20 g 10...2000 Hz
Radio approval EN 300 330 V2.1.1
Mechanical data
Weight [g] 88
Housing rectangular
Mounting non-flush mountable
Dimensions [mm] 20 x 7 x 48
Materials PBT; TPU; stainless steel
Displays / operating elements
Display
operation 1 x LED, green
tag communication 1 x LED, yellow
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PUR; 3 x 0.14 mm²
Connection Connector: 1 x M12
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTI516-00 — 04.06.2019 —
