| Application |
| Application |
I/O modules for field applications |
| Daisy-chain function |
power supply; fieldbus interface |
| Electrical data |
| Operating voltage [V] |
20...30 DC; (US; to SELV/PELV) |
| Current consumption [mA] |
300...3900; (US) |
| Protection class |
III |
| Additional voltage supply [V] |
20...30 DC; (UA) |
| Actuator supply UA |
| Max. current load total [A] |
8 |
| Current rating per port [A] |
2; (adjustable: 0...2; Factory setting: 2) |
| Sensor supply US |
| Max. current load total [A] |
3.6 |
| Current rating per port [A] |
2; (adjustable: 0...2; Factory setting: 0,45) |
| Inputs / outputs |
| Total number of inputs and outputs |
8; (configurable) |
| Number of inputs and outputs |
Number of digital inputs: 4; Number of digital outputs: 8 |
| Inputs |
| Number of digital inputs |
4; (IO-Link Port Class B: 4 x 1) |
| Switching level high [V] |
11...30 |
| Switching level low [V] |
0...5 |
| Digital inputs protected against short circuits |
yes |
| Outputs |
| Number of digital outputs |
8; (IO-Link Port Class B: 4 x 2) |
| Short-circuit proof |
yes |
| Actuator supply UA |
| Max. current load per output [mA] |
2000 |
| Sensor supply US |
| Max. current load per output [mA] |
2000 |
| Interfaces |
| Communication interface |
Ethernet; IO-Link |
| Ethernet - EtherCAT |
| Transmission standard |
100Base-TX |
| Transmission rate |
100 MBit/s |
| Protocol |
EtherCAT |
| Factory settings |
| MAC address: see type label |
|
| Note on interfaces |
| AoE (ADS over EtherCAT) |
| CoE (CANopen over EtherCAT) |
| EoE (Ethernet over EtherCAT) |
| FoE (File Access over EtherCAT) |
|
| IO-Link Master |
| Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| Number of ports class B |
4 |
| Operating conditions |
| Ambient temperature [°C] |
-25...60 |
| Storage temperature [°C] |
-25...85 |
| Max. relative air humidity [%] |
90 |
| Protection |
IP 65; IP 66; IP 67 |
| Protection rating (NEMA 250) |
6P |
| Pollution degree |
2 |
| Chemical media |
| ISO 16750-5 |
AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 |
AA |
|
| Tests / approvals |
| EMC |
| EN 61000-6-2 |
|
| EN 61000-6-4 |
|
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 2009-04 |
|
| DIN EN 60068-2-6 2008-10 |
|
|

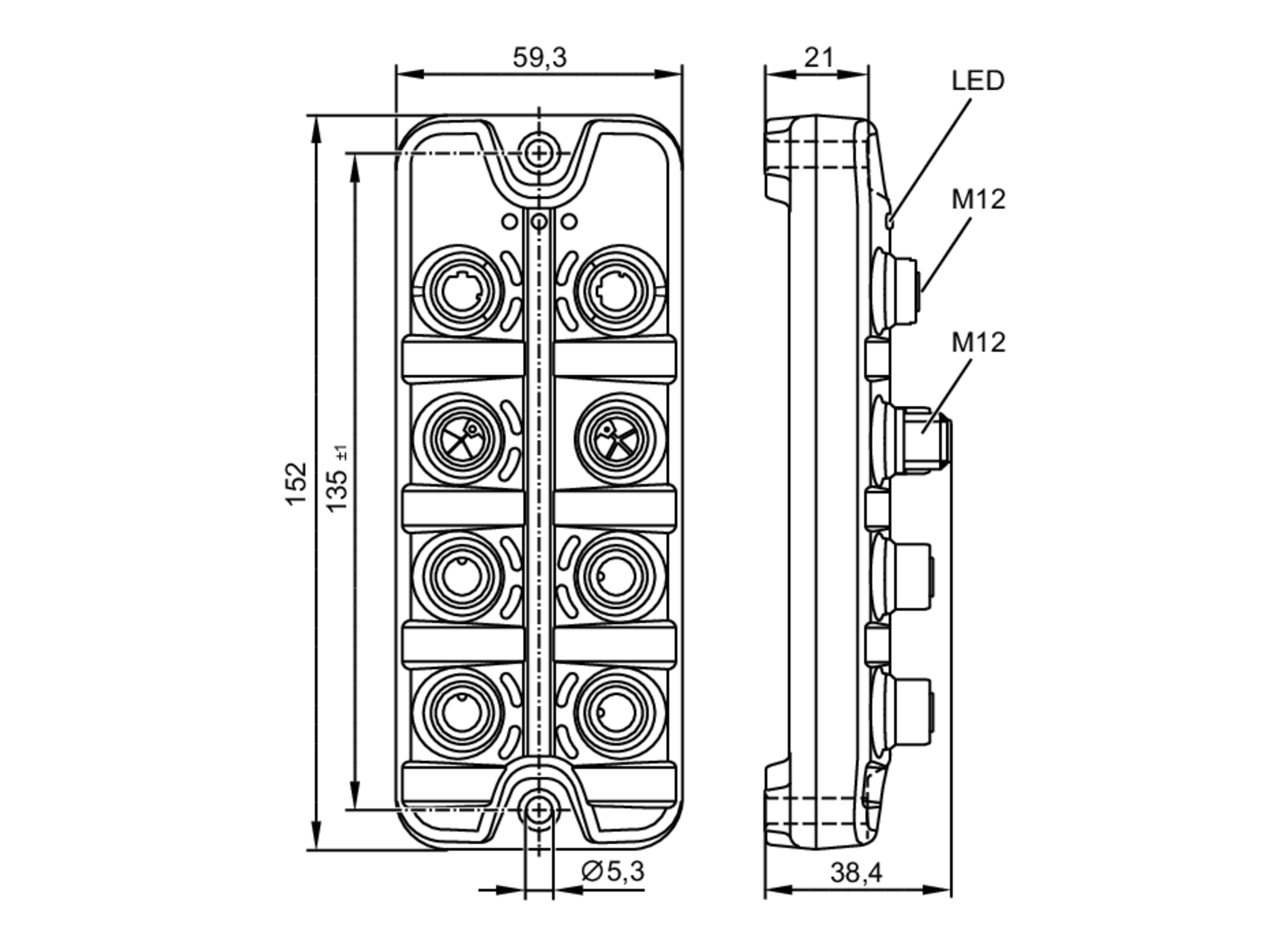

| Mechanical data |
| Weight [g] |
312.6 |
| Materials |
housing: PA orange; socket: brass nickel-plated |
| Sealing material |
FKM |
| Remarks |
| Remarks |
| For further information please see the operating instructions. |
|
| Pack quantity |
1 pcs. |
