Diffuse reflection sensor with background suppression

OGH-FPKG/US/CUBE

OGH580

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • ce
  • eac
  • cul
  • iolink
Download
Technische Details
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...30 DC; ("supply class 2" to cULus)
Rated insulation voltage [V] 32
Current consumption [mA] 25
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 300
Type of light red light
Wave length [nm] 645
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Minimum load current [mA] 5
Max. leakage current [mA] 0.05
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Detection zone
Range [mm] 15...200; (white paper 200 x 200 mm 90 % remission)
Range on white object (90 % remission) [mm] 15...200
Range on grey object (18 % remission) [mm] 15...200
Range on black object (6 % remission) [mm] 15...200
Range adjustable yes
Max. light spot diameter [mm] 13
Light spot dimensions refer to at maximum range
Background suppression available yes
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
IO-Link device ID 1132 d / 00 04 6C h
Profiles Measuring Sensor, Identification and Diagnosis, Switching Signal Channel, Teach Channel
SIO mode yes
Required master port type A
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -40...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 782
UL approval
Ta -25...60 °C
Enclosure type Type 1
voltage supply Class 2
File number UL E174191
Mechanical data
Weight [g] 60.5
Housing rectangular
Dimensions [mm] M18 x 1
Thread designation M18 x 1
Materials diecast zinc; PEI
Lens material
PEI
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
Operating elements
switch point pushbutton
Output function pushbutton
Accessories
Accessories (supplied)
lock nut: 1 x
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

a: sensor
b: object
c: background
x: distance sensor/object [mm]
y: min. distance object/background [mm]

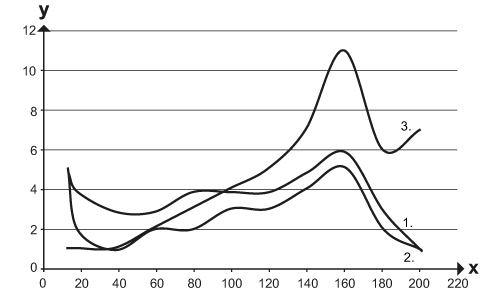

accuracy graph
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
Other data
Repeatability / precision: 6 σ
repeatability of the measured values
Abstand white (90 % remission) black (6 %...90 % remission)
20 mm 0.5 mm 1.0 mm
50 mm 0.8 mm 2.0 mm
100 mm 1.5 mm 4.5 mm
150 mm 3.0 mm 9.0 mm
200 mm 6.0 mm 20.0 mm
Accuracy
Abstand white (90 % remission) black (6 %...90 % remission)
20 mm ± 2.0 mm ± 2.5 mm
50 mm ± 3.5 mm ± 4.5 mm
100 mm ± 6.0 mm ± 7.5 mm
150 mm ± 7.5 mm ± 11.0 mm
200 mm ± 10.0 mm ± 17.0 mm
The values apply at
Extraneous light on the object < 10 klx
constant ambient conditions 23 °C / 960 hPa
minimum power-on time in minutes 10
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGH580-03 — 15.02.2019 —
