Diffuse reflection sensor


{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Particularly small housing for use where space is restricted
  • For the reliable position detection in feeding and handling technology
  • Precise detection of very small, very flat or highly reflective components
  • Easy setting of the range with IO-Link
  • Very long range
  • ce
  • eac
  • iolink
Technische Details
Product characteristics
Type of light red light
Housing rectangular
Dimensions [mm] 28.1 x 8.1 x 14.4
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 20; ((24 V))
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 633
Electrical design PNP
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Detection zone
Range [mm] 0...180; (white paper 200 x 200 mm)
Max. light spot diameter [mm] 18
Light spot dimensions refer to at maximum range
Communication interface IO-Link
Transmission type COM2 (38.4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
IO-Link device ID 788 d / 00 03 14 h
Profiles Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Binary Data Channel
SIO mode yes
Required master port type A
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65; IP 67
Tests / approvals
EN 60947-5-2
MTTF [years] 1054
Mechanical data
Weight [g] 38.2
Housing rectangular
Dimensions [mm] 28.1 x 8.1 x 14.4
Materials housing: ABS; stainless steel (1.4404 / 316L)
Lens material
Lens alignment side lens
Displays / operating elements
switching status 1 x LED, yellow
operation 1 x LED, green
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm²
Diagrams and graphs

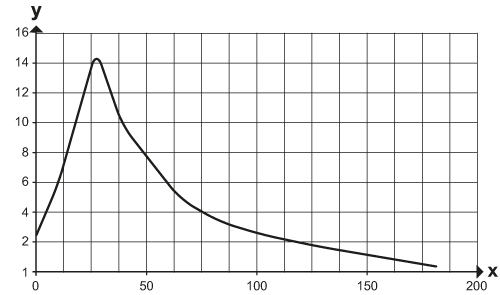

excess gain graph
x: Abstand [mm]
y: Funktionsreservefaktor
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O8T200-00 — 28.02.2017 —
