Incremental encoder with solid shaft and display

RVP510

INCREMENTAL ENCODER PERFORMANCE LINE

Incremental encoder with solid shaft and display

RVP510

INCREMENTAL ENCODER PERFORMANCE LINE

  • Can be configured as encoder, speed monitor or counter
  • Clearly visible LED display with red/green colour change
  • High shock and vibration resistance thanks to magnetic sensing principle
  • Resolution freely programmable from 1 ... 10,000
  • User-friendly communication and parameterisation via IO-Link
  • cmim
  • ce
  • ukca
  • cul
  • iolink
Product characteristics
Resolution 1...10000; (parameterisable; Factory setting: 1024) resolution
Communication interface IO-Link
Shaft design solid shaft
Shaft diameter [mm] 10
Application
Function principle incremental
Detection system magnetic
Application encoder; Speed monitor; counter
Electrical data
Operating voltage [V] 4.75...30 DC
Current consumption [mA] < 350
Protection class III
Reverse polarity protection yes
Max. revolution electrical [U/min] 12000
Outputs
Electrical design HTL/TTL
Switching frequency [kHz] 1000
Factory setting
Output function: HTL (50 mA)
Short-circuit protection yes
Phase difference A and B [°] 90
Measuring/setting range
Resolution 1...10000; (parameterisable; Factory setting: 1024) resolution
Speed monitor
Set point SP
-9994...9999 U/min -166.6...166.7 Hz
Reset point rP
-9999...9994 U/min -166.7...166.6 Hz
Counter
Preset point 1...9999
Accuracy / deviations
Accuracy [°] 0.1
Software / programming
Parameter setting options encoder; Resolution; direction of rotation; HTL; TTL; Speed monitor; Resolution
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SIO mode yes
Min. process cycle time [ms] 2.3
Operating conditions
Ambient temperature [°C] -40...85
Storage temperature [°C] -40...85
Max. relative air humidity [%] 95; (condensation not permissible)
Protection IP 65; (on the housing: IP 67; on the shaft: IP 64)
Tests / approvals
Shock resistance
100 g
Vibration resistance
20 g
MTTF [years] 218
Mechanical data
Weight [g] 429
Dimensions [mm] Ø 58 / L = 80.2
Materials flange: aluminium; housing: stainless steel (1.4521 / 444); display window: PEI
Max. revolution, mechanical [U/min] 12000
Max. starting torque [Nm] 1
Reference temperature torque [°C] 20
Shaft design solid shaft
Shaft diameter [mm] 10
Shaft material
stainless steel
Max. shaft load axial (at the shaft end) [N] 40
Max. shaft load radial (at the shaft end) [N] 60
Fixing flange clamping flange
Displays / operating elements
Display
10-segment display, red/green 4-digit parameterisable
2 x LED, yellow
5 x LED, green
Electrical connection
IO-Link Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (316 / 1.4401); Maximum cable length: 100 m; (IO-Link: max. 20 m)
Diagrams and graphs

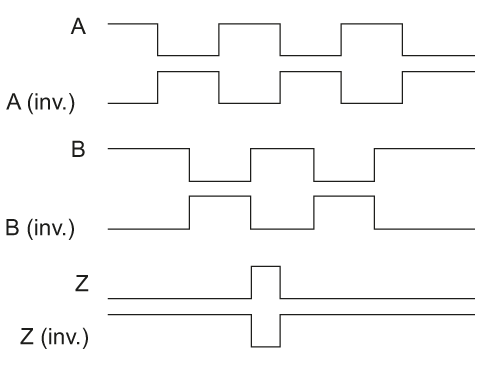

Pulse diagram
direction of rotation clockwise (looking at the shaft)
