- RP1413
Product characteristics
| Resolution | 3600 resolution |
|---|---|
| Shaft design | continuous hollow shaft |
| Shaft diameter [mm] | 50 |
Electrical data
| Operating voltage tolerance [%] | 10 |
|---|---|
| Operating voltage [V] | 5 DC |
| Current consumption [mA] | < 150 |
Outputs
| Electrical design | TTL |
|---|---|
| Max. current load per output [mA] | 20 |
| Switching frequency [kHz] | 300 |
| Phase difference A and B [°] | 90 |
Measuring/setting range
| Resolution | 3600 resolution |
|---|
Operating conditions
| Ambient temperature [°C] | -30...75 | ||
|---|---|---|---|
| Note on ambient temperature |
|
||
| Max. relative air humidity [%] | 75; (briefly: 95 %; condensation not permissible) | ||
| Protection | IP 64 |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
Mechanical data
| Weight [g] | 933.8 | |
|---|---|---|
| Dimensions [mm] | Ø 87 / L = 55 | |
| Materials | aluminium | |
| Max. revolution, mechanical [U/min] | 4000 | |
| Max. starting torque [Nm] | 20 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | continuous hollow shaft | |
| Shaft diameter [mm] | 50 | |
| Shaft fit | H7 | |
| Shaft material |
|
|
| Max. axial shaft misalignment [mm] | 1,5; (Only to compensate for installation tolerances and thermal expansion.; No dynamic movement allowed.) |
Electrical connection
| Cable: 1 m, PUR; radial |
Diagrams and graphs
|

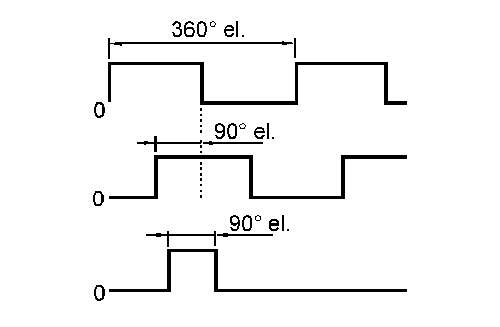

Pulse diagram
|
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RP1413-03 — 12.03.2015 —
