| Product characteristics |
| Resolution |
3600 resolution |
| Shaft design |
continuous hollow shaft |
| Shaft diameter [mm] |
12 |
| Application |
| Function principle |
incremental |
| Electrical data |
| Operating voltage tolerance [%] |
10 |
| Operating voltage [V] |
5 DC |
| Current consumption [mA] |
< 150 |
| Outputs |
| Electrical design |
TTL |
| Max. current load per output [mA] |
20 |
| Switching frequency [kHz] |
300 |
| Phase difference A and B [°] |
90 |
| Measuring/setting range |
| Resolution |
3600 resolution |
| Operating conditions |
| Ambient temperature [°C] |
-30...100 |
| Storage temperature [°C] |
-30...100 |
| Max. relative air humidity [%] |
75; (briefly: 95 %; condensation not permissible) |
| Protection |
IP 64 |
| Tests / approvals |
| Shock resistance |
|
| Vibration resistance |
|
| Mechanical data |
| Weight [g] |
450.4 |
| Dimensions [mm] |
Ø 58 / L = 54.4 |
| Materials |
aluminium |
| Max. revolution, mechanical [U/min] |
12000; (when using both shaft clamping rings) |
| Max. starting torque [Nm] |
2.5 |
| Reference temperature torque [°C] |
20 |
| Shaft design |
continuous hollow shaft |
| Shaft diameter [mm] |
12 |
| Shaft fit |
H7 |
| Shaft material |
|
| Installation depth of shaft [mm] |
15...24 |
| Max. axial shaft misalignment [mm] |
1 |
| Remarks |
| Notes |
discontinued article |
| Electrical connection |
|
Cable: 1 m, PUR; radial |
| Diagrams and graphs |

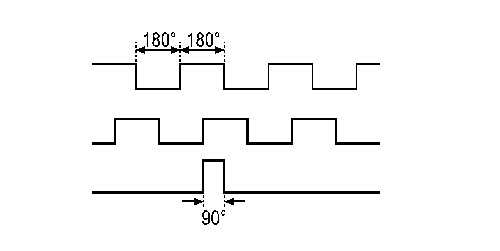

| Pulse diagram |
|
|
Output A |
|
|
Output B |
|
|
0 index |
|
