  5. Type M18 in plastic housing
  6. OGP102

Retro-reflective sensor

OGP-DNKG/US

OGP102

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Very long range
  • For use in conveying and materials handling
  • Ready for operation immediately thanks to fixed setting
  • Excellent price/performance ratio
  • Low-cost alternative to units with metal housing
  • ce
  • eac
  • cul
Download
Technische Details
Application
Function principle Retro-reflective sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 20
Protection class III
Reverse polarity protection yes
Type of light red light
Outputs
Electrical design NPN
Output function dark-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Overload protection yes
Detection zone
Range referred to prismatic reflector [m] 0.05...2.5; (Prismatic reflector Ø 80 E20005)
Range adjustable no
Max. light spot diameter [mm] 200
Light spot dimensions refer to at maximum range
Polarisation filter available yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67; (in conjunction with a corresponding connector)
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1161
Mechanical data
Weight [g] 14.6
Housing threaded type
Dimensions [mm] M18 x 1 / L = 44
Thread designation M18 x 1
Materials housing: ABS
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Accessories (supplied)
lock nuts: 2 x
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

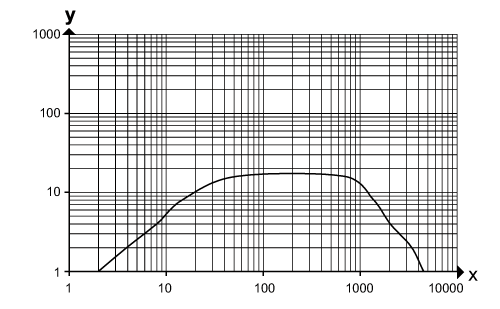

excess gain graph
x: distance [mm]
y: excess gain factor
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGP102-00 — 13.08.2010 —
