- E30390
IO-Link interface
E30390
USB IO-LINK MASTER
IO-Link interface
E30390
USB IO-LINK MASTER
- For connecting sensors with IO-Link capability to a PC
- For quick and easy parameter setting and set-up
- Clearly visible powerful LEDs for displaying operation, switching status, function and error
- Reading of the current measured values, process values and parameter settings
- Complete set with power supply for the sensors
phase-out article
Alternative articles: ZZ1060 Product comparison: E30390 / ZZ1060 When selecting an alternative article and accessories please note that technical data may differ!
Application
| Application | parameter setting and analysis of units |
|---|
Electrical data
| Nominal voltage DC [V] | 5; (mains operation: 24 V DC) |
|---|---|
| Current consumption [mA] | < 500; (mains operation: < 1000 mA) |
| Protection class | III |
Outputs
| Short-circuit protection | yes |
|---|
Interfaces
| Communication interface | IO-Link |
|---|
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| Number of ports class A | 1 |
Operating conditions
| Ambient temperature [°C] | -25...45 |
|---|---|
| Protection | IP 20 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 572.4 |
|---|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|||
|---|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - socket
| Connector: M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30390-00 — 08.11.2013 —
E30390 –
USB IO-LINK MASTER
- 1
- socket USB type Mini-B
- 2
- LED operating status
- 3
- 24 V DC
- 4
- LED errors / CH2 (DI/DO) / CH1 (C/Q)

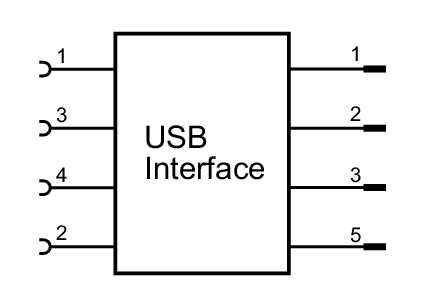

Electrical connection - socket
- 1:
- +24 V
- 2:
- SIO CH2 (DI/DO)
- 3:
- GND
- 4:
- IO-Link CH1 (C/Q)
- 5:
- not used
Connector: M12; coding: A
Electrical connection
Connection
Electrical connection - socket
Connector: USB
