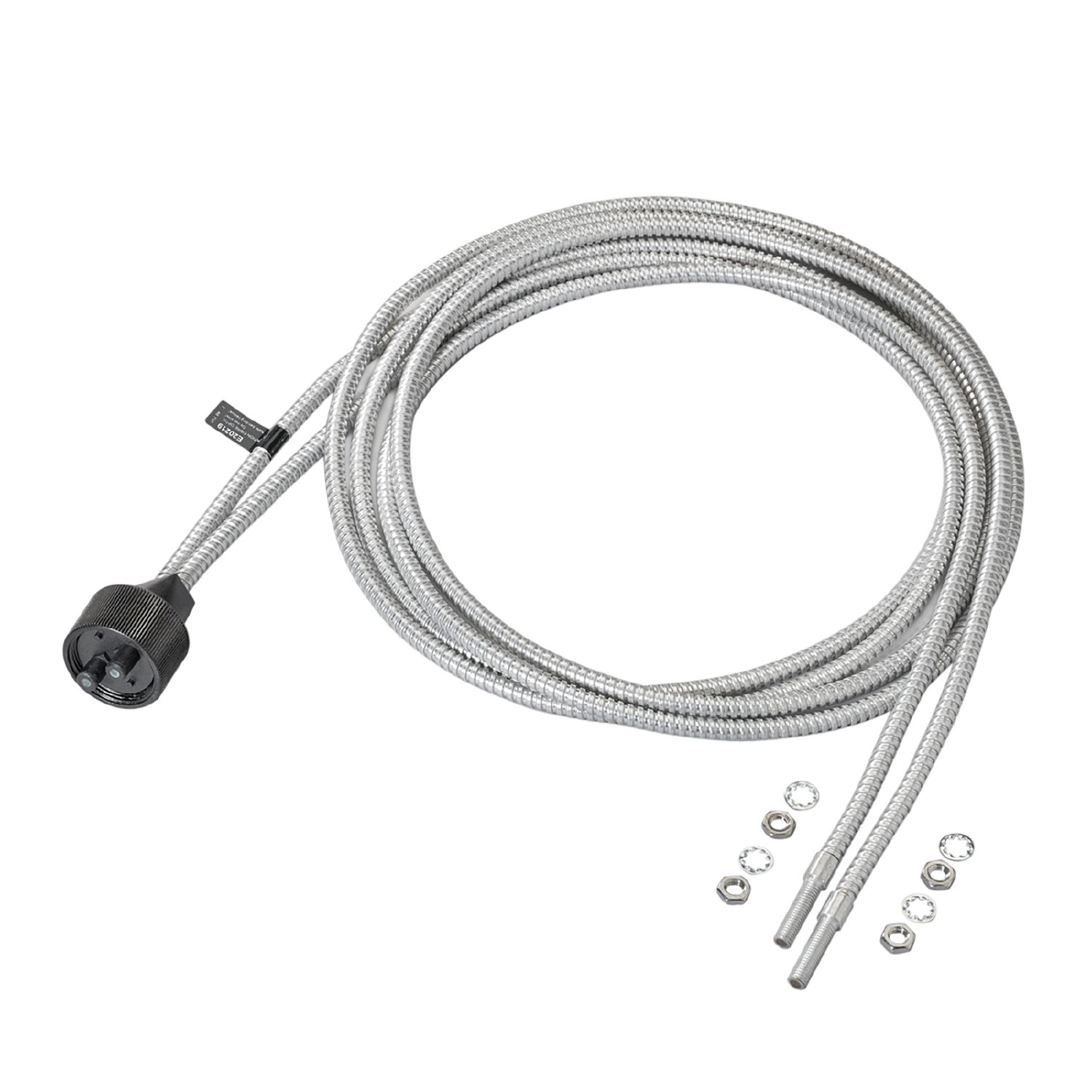

Fibre optic through-beam sensor

E20219

FE-30-A-A-M6/2M

Fibre optic through-beam sensor

E20219

FE-30-A-A-M6/2M

  • For applications in high-temperature areas
  • Aluminium sheathing for use up to 290 °C
  • Installation in places where access is difficult
  • Resistant to various aggressive chemicals
  • Small bending radius
Application
Function principle Through-beam sensor
Application High temperature resistance; Robust design for use in harsh industrial environments
Detection zone
Range with fibre-optic amplifier type OIF
OIF
Range of fibre optics [mm] 240
Operating conditions
Ambient temperature [°C] -40...290
Mechanical data
Weight [g] 201
Version of sensing head straight
Sensing head thread M6
Total length [mm] 2000
Min. bending radius [mm] 30; (for fixed installation)
Fibre arrangement
Materials Adapter: PA
Fibre material glass
Fibre head material aluminium
Fibre sheath material aluminium
Accessories
Items supplied
hexagon nuts: 4 x M6, stainless steel
tooth lock washers: 4
knurled nut: 1 x M30
Remarks
Pack quantity 1 pcs.
