Switched-mode power supply 24 V DC

DN4218

PSU-1AC/24VDC-12A/IOL/IP67

Switched-mode power supply 24 V DC

DN4218

PSU-1AC/24VDC-12A/IOL/IP67

  • Protection of the wiring via configurable electronic circuit breakers
  • Installation without control cabinet
  • Additional diagnostics by measuring current, voltage and mains quality as well as counting operating hours
  • Energy-efficient generation of extra-low voltage without power loss
  • Output voltage, load currents, output circuit states and trigger cause are communicated via IO-Link
  • Switching the output circuits on and off as well as resetting the circuit breakers is possible via IO-Link
  • ce
  • ukca
  • iolink
  • cul
Electrical data
Nominal voltage AC [V] 230
Nominal voltage DC [V] 300
Nominal frequency AC [Hz] 50...60
Input voltage DC [V] 110...300
Input voltage range AC [V] 100...240
Output voltage DC [V] 24...28
Protection class I
Max. power-on delay time [ms] 1.3
Max. output current at min. output voltage [A] 12.5
Max. output current at max. output voltage [A] 10.7
Output power (permanent) [W] 300
Output power (peak) [W] 600
Power factor (nominal voltage 230 V AC / 50 Hz) 0.97
Number of output circuits 4
Efficiency (nominal voltage 120 V AC / 60 Hz) [%] 94.3
Efficiency (nominal voltage 230 V AC / 50 Hz) [%] 95.7
Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms] 44
Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] 44
Input current (nominal voltage 120 V AC / 60 Hz) [A] 3.2
Input current (nominal voltage 230 V AC / 50 Hz) [A] 1.68
Interfaces
Communication interface IO-Link
Transmission type COM3 (230,4 kBaud)
IO-Link revision 1.1
SIO mode yes
Min. process cycle time [ms] 2.2
Operating conditions
Ambient temperature [°C] -25...55
Note on ambient temperature
the derating of the current load indicated in the operating instructions is to be taken into account at the following ambient temperature: 70 °C
Storage temperature [°C] -40...85
Max. relative air humidity [%] 95; (relative humidity)
Max. height above sea level [m] 5000
Protection IP 65; IP 67
Pollution degree 3
Tests / approvals
EMC
EN 61000-4-2 CD 8 kV / failure criterion A
EN 61000-4-2 AD 15 kV / failure criterion A
EN 61000-4-3 80 Mhz...2.7 GHz / 20 V/m failure criterion A
EN 61000-4-3 2.7 GHz...6 GHz kV / 10 V/m failure criterion A
EN 61000-4-8 50 / 60 Hz / 30 A/m failure criterion A
EN 61000-4-4 Burst 4 kV / failure criterion A
EN 61000-4-5 Surge 2 kV Lx / Ly / failure criterion A
EN 61000-4-5 Surge 4 kV L / PE / failure criterion A
EN 61000-4-5 Surge 1 kV + / - / failure criterion A
EN 61000-4-5 Surge 1 kV + - / PE / failure criterion A
EN 61000-4-5 Surge 1 kV + - / PE / failure criterion A
EN 61000-4-5 Surge 1 kV DC-OK / PE / failure criterion A
EN 61000-4-6 0.15...80 MHz / 20 V failure criterion A
EN 61000-4-11 0 V up to 1 cycle / failure criterion A
EN 61000-4-11 40 % of V / 200 ms failure criterion A
EN 61000-4-11 70 % of V / 500 ms failure criterion A
EN 61000-4-11 0 V / 5000 ms failure criterion C
VDE 0160 1550 V / 1.3 ms failure criterion A
EN 55032 Class B
EN 55032 Class B
EN 55011 Class B
EN 61000-3-2
EN 61000-3-3
Continuous shock resistance
IEC 60068-2-27 30 g 6 ms / 20 g 11 ms
Vibration resistance
IEC 600068-2-6 2...17.8 Hz ± 1.6mm / 17.8...500 Hz 2 g
Mechanical data
Weight [g] 1524.5
Dimensions [mm] 182 x 183 x 59
Materials housing: aluminium alloy; housing cap: PC; screws: steel bronzed
Remarks
Pack quantity 1 pcs.
Electrical connection - IO-Link
Connector: 1 x M12; coding: A; Locking: brass
Electrical connection - Output voltage
Connector: 2 x M12; coding: A; Locking: brass
Electrical connection - power supply
Connector: 1 x 7/8"; Locking: brass
Diagrams and graphs

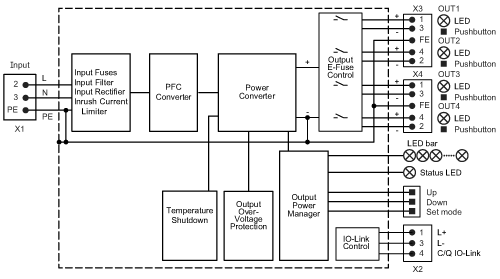

block diagram

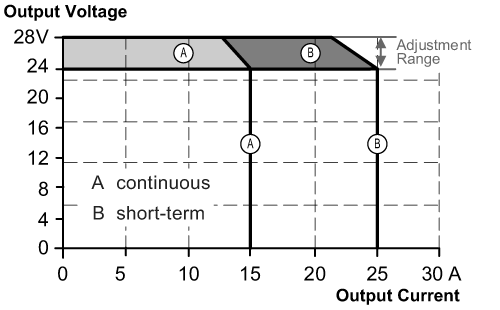

output characteristics

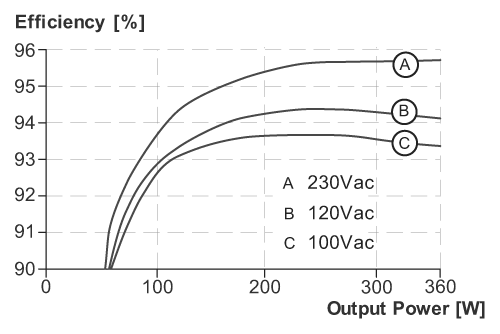

characteristic curve for degree of efficiency / power loss

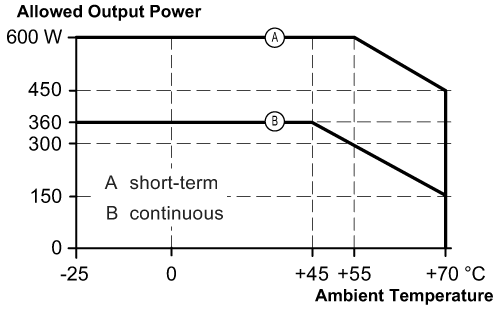

characteristic line for derating

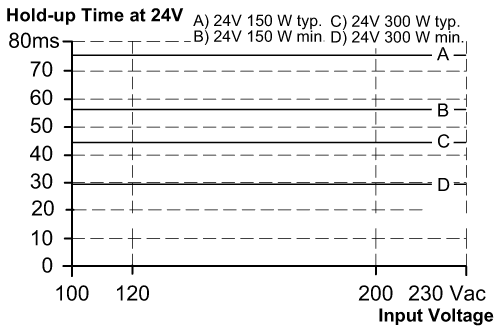

characteristic line for mains buffering time
