- RM6101
Product characteristics
Resolution | 8192 resolution; 8192 steps; 4096 revolutions; 25 bit |
---|---|
Communication interface | SSI data interface |
Shaft design | solid shaft |
Shaft diameter [mm] | 6 |
Application
Function principle | absolute |
---|---|
Revolution type | multiturn |
Electrical data
Operating voltage [V] | 4.75...30 DC |
---|---|
Current consumption [mA] | < 200 |
Outputs
Code | Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
---|---|
Code signal | Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 485; data output; synchronous serial; TTL-compatible signals, data, and data (inv.); incremental signals; 2 sinusoidal incremental signals (A and B) ; phase shifted by 90°; 1 Vss 512 signal periods per revolution |
Measuring/setting range
Resolution | 8192 resolution; 8192 steps; 4096 revolutions; 25 bit |
---|
Interfaces
Communication interface | SSI data interface |
---|
Operating conditions
Ambient temperature [°C] | -40...85 |
---|---|
Max. relative air humidity [%] | 75; (briefly: 95 %) |
Protection | IP 64 |
Tests / approvals
Shock resistance |
|
||
---|---|---|---|
Vibration resistance |
|
||
MTTF [years] | 46 |
Mechanical data
Weight [g] | 459.2 | |
---|---|---|
Dimensions [mm] | Ø 58 / L = 46.7 | |
Materials | aluminium | |
Max. revolution, mechanical [U/min] | 12000 | |
Max. starting torque [Nm] | 1 | |
Reference temperature torque [°C] | 20 | |
Shaft design | solid shaft | |
Shaft diameter [mm] | 6 | |
Shaft material |
|
|
Max. shaft load axial (at the shaft end) [N] | 10 | |
Max. shaft load radial (at the shaft end) [N] | 20 | |
Fixing flange | Ø 58 mm |
Remarks
Remarks |
|
---|
Electrical connection
Cable: 1 m, PUR; Maximum cable length: 100 m; radial, can also be used axially |
Diagrams and graphs

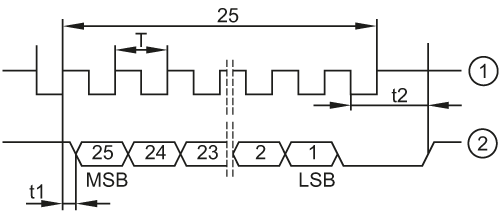

Pulse diagram
|
|
---|
