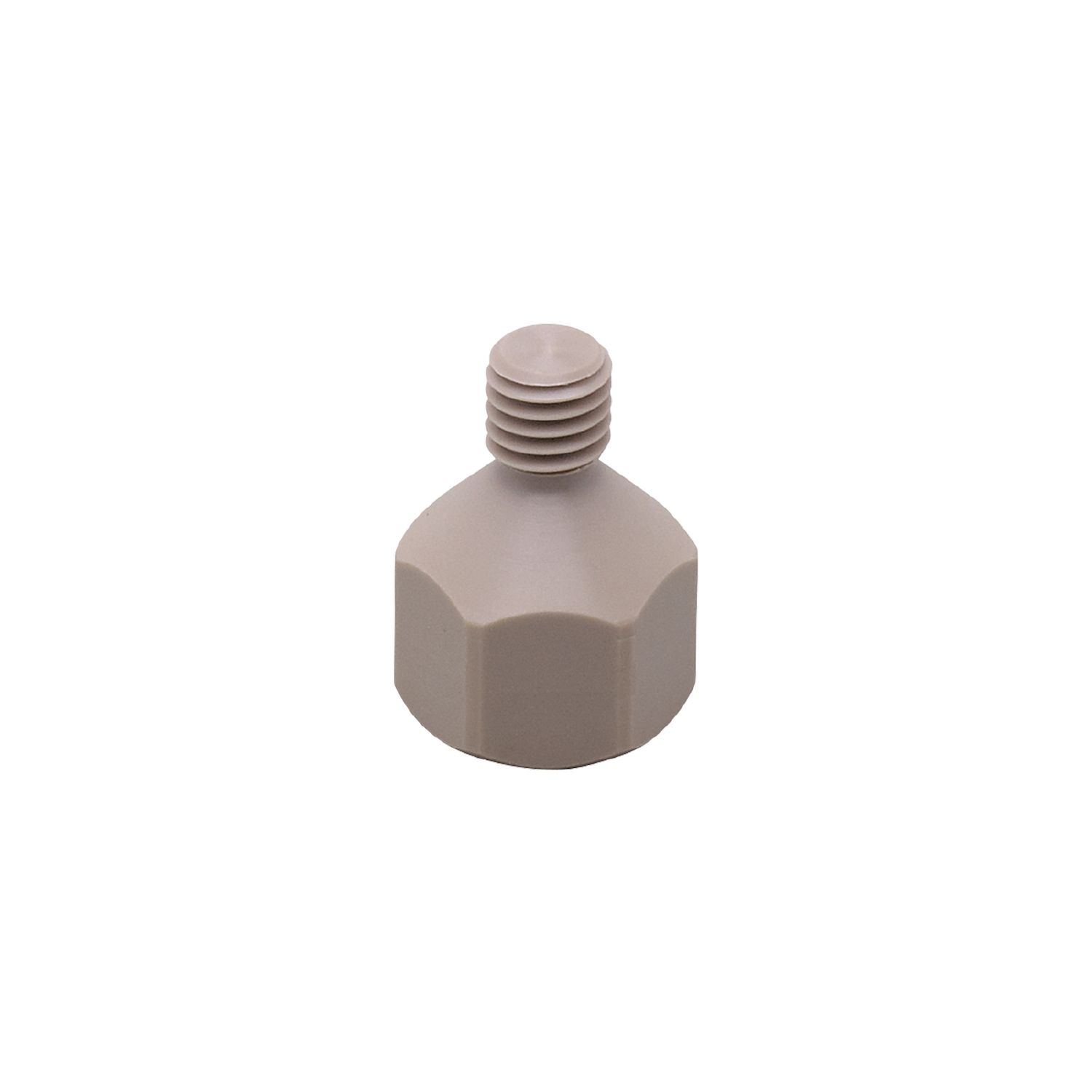

- E30132
Application
| Design | for vibration sensors VSA001, VSA101, VSA201 |
|---|
Operating conditions
| Ambient temperature [°C] | -30...260 | |
|---|---|---|
| Note on ambient temperature |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 8.2 |
|---|---|
| Dimensions [mm] | M8 |
| Thread designation | M8 |
| Materials | PEEK |
| Process connection | threaded connection |
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
