- Products
- E20384

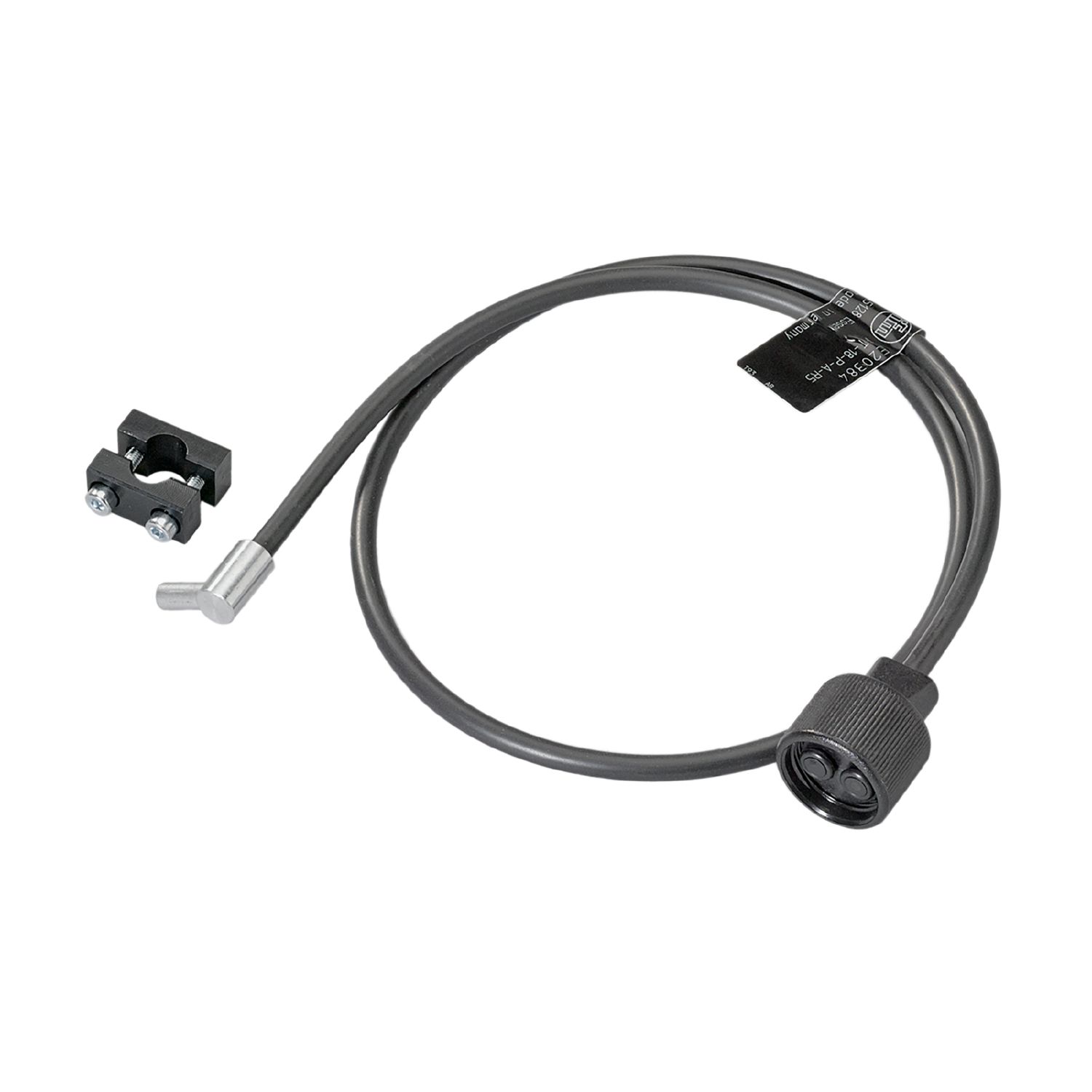

Fibre optic diffuse reflection sensor
E20384
FT-18-P-A-R5
Fibre optic diffuse reflection sensor
E20384
FT-18-P-A-R5
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- For use at short range
- Angled type for use where space is restricted
- Small bending radius
phase-out article
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre optic amplifier type | OGF |
|---|
| Range fibre optics [mm] | 12 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 59.4 |
|---|---|
| Version of sensing head | angled |
| Sensing head diameter [mm] | 5 |
| Sensing head length [mm] | 10 |
| Total length [mm] | 600 |
| Min. bending radius [mm] | 20 |
| Fibre arrangement |
|
| Materials | Adapter: PPE |
| Fibre material | glass |
| Fibre head material | aluminium |
| Fibre sheath material | PVC |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20384-00 — 06.03.2003 —
