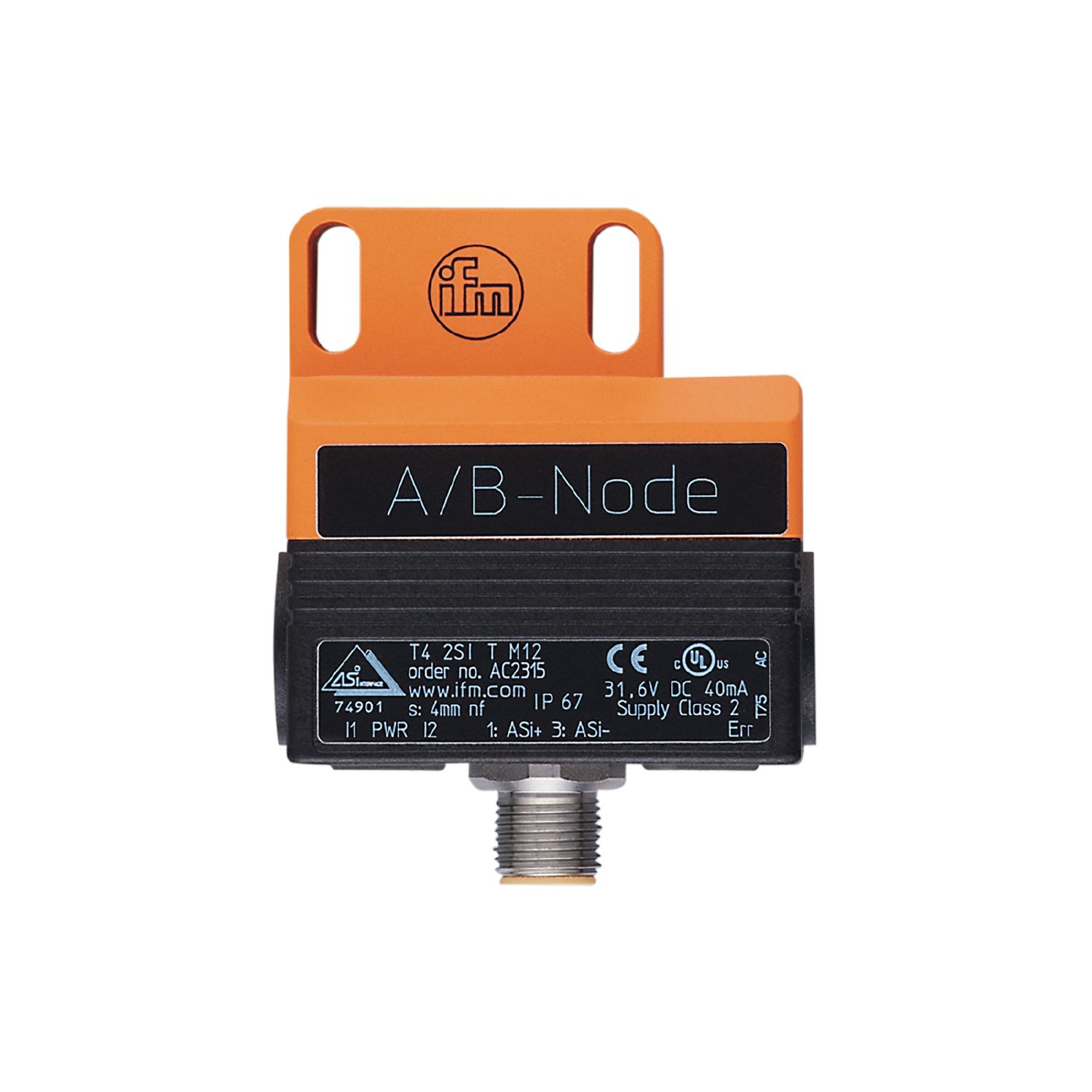

AS-Interface dual sensor for pneumatic valve actuators

AC2315

DUAL SENSOR T4 2SI M12

AS-Interface dual sensor for pneumatic valve actuators

AC2315

DUAL SENSOR T4 2SI M12

  • For monitoring valve positions
  • For reliable position feedback on valve actuators
  • Non-contact and self-cleaning system
  • Quick and secure mounting with only three screws
  • High shock and vibration resistance
  • ce
  • ukca
  • asi
  • cul
Product characteristics
Electrical design AS-i
Sensing range [mm] 4
Dimensions [mm] 55 x 60 x 35
Electrical data
Operating voltage [V] 26.5...31.6 DC; ("supply class 2" to cULus)
Current consumption [mA] < 40
Outputs
Electrical design AS-i
Detection zone
Sensing range [mm] 4
Operating conditions
Ambient temperature [°C] -20...70
Protection IP 67
Tests / approvals
EMC
EN 50295
EN 61000-6-2
MTTF [years] 924
AS-i classification
AS-i version 2.1
Extended addressing mode yes
AS-i I/O configuration [hex] 0
AS-i ID code [hex] A.F
AS-i certificate 74901
Mechanical data
Weight [g] 149.5
Mounting non-flush mountable
Dimensions [mm] 55 x 60 x 35
Materials PBT
Displays / operating elements
Display
switching status 2 x LED, yellow
Accessories
Items supplied
Reinforcement bracket
socket head screws: 2 x M5 x 35
washers: 2
Remarks
Pack quantity 1 pcs.
