Video processing unit (VPU)

OVP800

OVPAA/RO/E0/E1/NJ TX2/4GB

Video processing unit (VPU)

OVP800

OVPAA/RO/E0/E1/NJ TX2/4GB

{{ifmVariantName}}

PDF data sheet
  • ce
  • ukca
Technical details
Application
Application Industrial imaging
Electrical data
Operating voltage [V] 19.2...28.8 DC
Max. current consumption [mA] 2710; (310 + (n x 800) n = number of cameras)
Power consumption [W] 33.2; (7,4 + n x ((FPS x 0,32) + 2,2); n = number of cameras; FPS = camera frame rate)
Interfaces
Number of CAN interfaces 1
Number of Ethernet interfaces 2
Number of USB interfaces 2
CAN
Protocol free protocol
Ethernet
Transmission standard 1GBase-T
Transmission rate 1000 MBit/s
Protocol TCP/IP
Factory settings
IP address: 192.168.0.69
subnet mask: 255.255.255.0 (Class C)
gateway IP address: 192.168.0.201
MAC address: see type label
Sensor interface
Transmission standard FPD-Link
Connector type HFM (Mini-FAKRA)
Note on interfaces
maximum number of cameras: see operating instructions
USB
Connector type Mini-USB; type A
Version 2.0; 3.0
Operating conditions
Ambient temperature [°C] -10...40
Storage temperature [°C] -40...85
Protection IP 50
Tests / approvals
EMC
EN IEC 61000-6-4 radiation of interference / residential, commercial and light-industrial environments
EN IEC 61000-6-2 immunity / industrial environments
Shock resistance
DIN EN 60068-2-27 50 g / (11 ms) not repetitive
DIN EN 60068-2-27 40 g / (6 ms) repetitive
Vibration resistance
DIN EN 60068-2-6 2 g / (10...150 Hz)
DIN EN 60068-2-64 2.3 g RMS / (10...500 Hz)
Electrical protection
DIN EN 61010-2-201 electrical supply only via PELV circuits

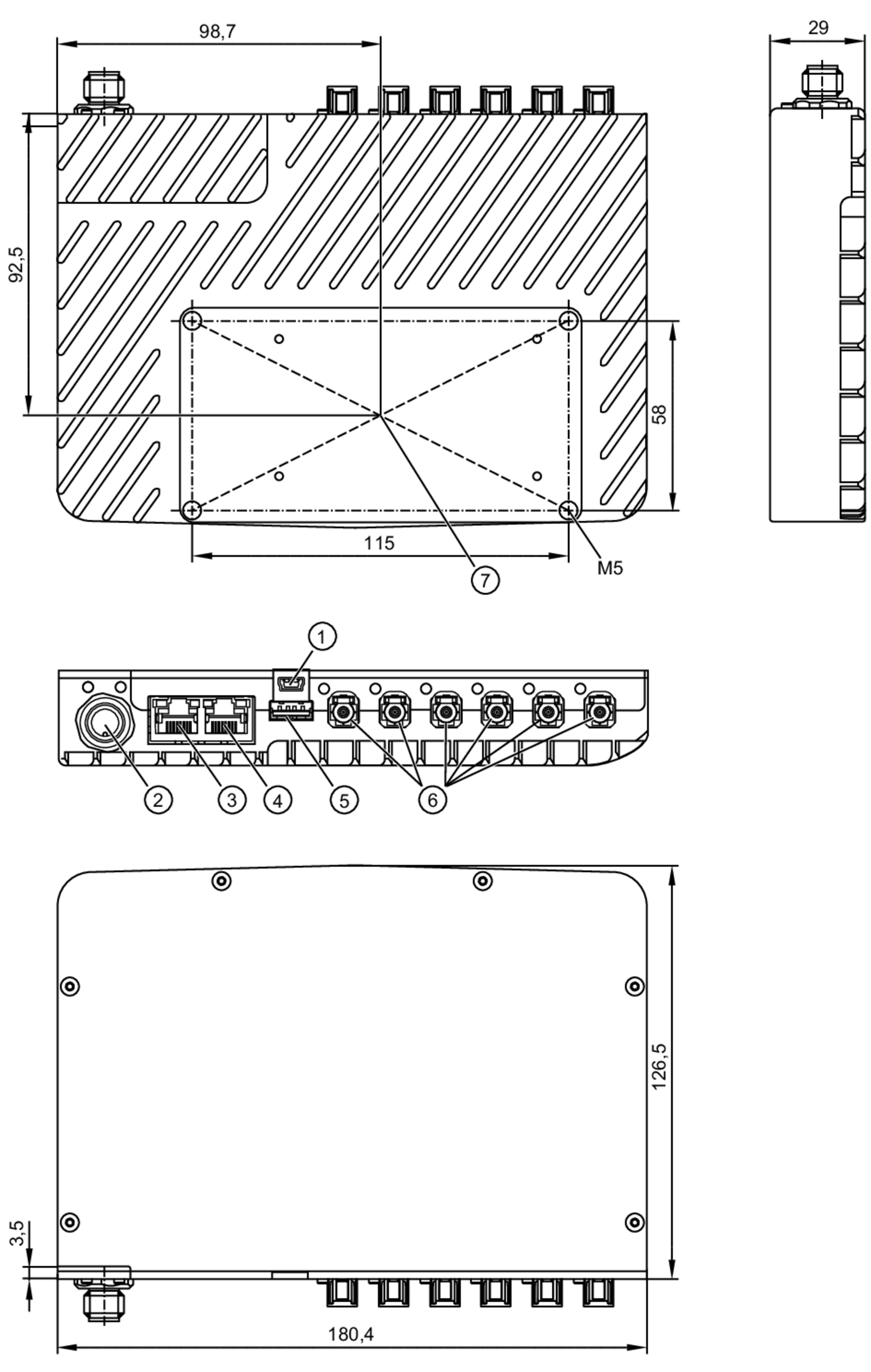

Mechanical data
Weight [g] 1338.3
Dimensions [mm] 126.5 x 29 x 180.4
Materials housing: aluminium
Tightening torque [Nm] < 5.5
Hardware
Processor CPU: Dual-Core NVIDIA Denver 2 64 Bit ; ARM Cortex A57; GPU: NVIDIA Pascal 256 CUDA Cores (1,3 TFLOPs) SOM: Nvidia Jetson TX2 4GB Module
Working memory 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GB/s
Mass storage 16GB eMMC 5.1 Flash
Remarks
Pack quantity 1 pcs.
Electrical connection - USB socket
Connector: 1 x mini USB interface
Electrical connection - USB socket Typ A
Connector: 1 x Typ A
Electrical connection - power supply / CAN
Connector: 1 x M12; coding: A
Electrical connection - sensor interface
Connector: 6 x HFM (Mini-FAKRA) (AMK12A-1M4Z5-A)
Other data
Connection
Port 0 Port 1 Port 2 Port 3 Port 4 Port 5
example 1 camera 1 (3D) camera 2 (3D) camera 1 (2D) camera 2 (2D) camera 3 (3D) camera 4 (3D)
example 2 camera 1 (2D) camera 2 (2D) camera 1 (3D) camera 2 (3D) camera 3 (2D) camera 4 (2D)
example 3 camera 1 (3D) camera 2 (3D) camera 3 (3D) camera 4 (3D) camera 5 (3D) camera 6 (3D)
ports 0 and 1, 2 and 3, 4 and 5 must be assigned to the same type of image sensor.
please note the different 3D image sensor types 38k and VGA when connecting the cameras.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OVP800-00 — 15.03.2023 —
