3D camera

O3R225

O3RIOOKG/2D3D/ZN/O/W/105

3D camera

O3R225

O3RIOOKG/2D3D/ZN/O/W/105

Additional software, firmware and documentation is available at ifm3d.com.

  • ce
  • ukca
Product characteristics
Image resolution [px] 1280 x 800
Image resolution 3D [px] 224 x 172
Angle of aperture [°] 128 x 80
Angle of aperture 3D [°] 105 x 78
Image repetition frequency [Hz] 20
Image repetition frequency 3D [Hz] 20
Electrical data
Operating voltage [V] 19.2...28.8 DC
Max. current consumption [mA] 800
Power consumption [W] 8.6; ((FPS x 0,32) + 2,2; FPS = Framerate Head)
Image sensor PMD 3D ToF-Chip / 2D Chip
Internal lighting yes; (infrared: 940 nm invisible radiation)
Detection zone
Image resolution [px] 1280 x 800
Image resolution 3D [px] 224 x 172
Angle of aperture [°] 128 x 80
Angle of aperture 3D [°] 105 x 78
Image repetition frequency [Hz] 20
Image repetition frequency 3D [Hz] 20
Interfaces
Transmission standard FPD-Link
Connector type HFM (Mini-Fakra)
Operating conditions
Ambient temperature [°C] -10...40
Storage temperature [°C] -40...85
Protection IP 54
Tests / approvals
EMC
EN IEC 61000-64 radiation of interference / residential, commercial and light-industrial environments
EN IEC 61000-6-2 immunity / industrial environments
Shock resistance
EN 60068-2-27 50 g / (11 ms) not repetitive
EN 60068-2-27 40 g / (6 ms) repetitive
Vibration resistance
EN 60068-2-6 2 g / (10...150 Hz)
EN 60068-2-64 2.3 g RMS / (10...500 Hz)
Laser protection class 1
Notes on laser protection
Caution: laser light
laser class: 1
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
Electrical protection
EN 61010-2-201 electrical supply only via PELV circuits
Mechanical data
Weight [g] 170.9

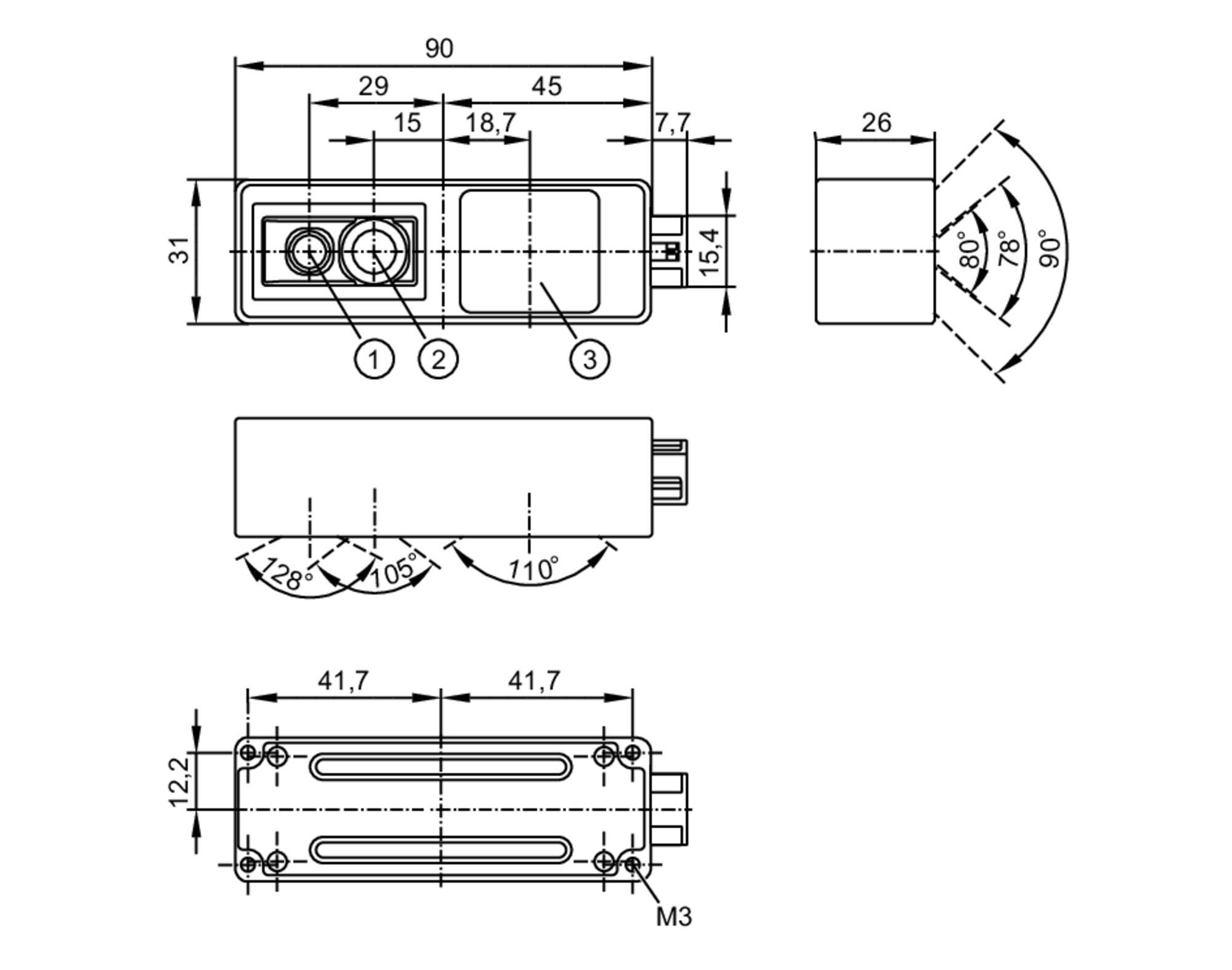

Dimensions [mm] 90 x 31 x 26
Materials housing: diecast zinc coated; Cover: PMMA; window: glass / PMMA; rear of the housing: aluminium coated
Tightening torque [Nm] < 0.8
Remarks
Pack quantity 1 pcs.
Electrical connection
Connector: Dual-HFM
Other data
Field of view size
distance [m] Length [m] Width [m]
1.00 2.60 1.70
2.00 5.20 3.35
3.00 7.80 5.05
4.00 10.40 6.70
repeatability of the distance measurement of an individual pixel
measuring range / distance [m] repeatability of the measured distance values on grey objects (18% reflectivity) [mm] accuracy [mm]
typical value typical value
0...1 ± 7 ± 9
1...2 ± 15 ± 10
2...3 ± 30 ± 12
3...4 ± 51 ± 13
object in centre of the image
Ambient temperature 20° C
measured at a reflectivity of 18% to 90%
The repeatability can be optimised with filter functions
Temperature drift
Temperature range -10...40 °C
Temperature drift [mm/K] 0.1
