| Product characteristics |
| Number of inputs and outputs |
Number of analogue outputs: 1 |
| Process connection |
threaded connection G 1/2 external thread sealing cone optional:hygienic PEEK gasket according to EHEDG |
| Application |
| Special feature |
Gold-plated contacts |
| Media |
conductive liquids |
| Note on media |
|
| Cannot be used for |
See the operating instructions, chapter "Function and features". |
| Medium temperature [°C] |
-25...100; (< 1 h: 150) |
| Pressure rating [bar] |
16 |
| Vacuum resistance [mbar] |
-1000 |
| Electrical data |
| Operating voltage [V] |
18...30 DC |
| Current consumption [mA] |
< 60 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
2 |
| Measuring principle |
konduktiv |
| Inputs / outputs |
| Number of inputs and outputs |
Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
1 |
| Output signal |
analogue signal; IO-Link |
| Output function |
analogue output; scalable; selectable conductivity / temperature |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4...20 |
| Max. load [Ω] |
500 |
| Measuring/setting range |
| Conductivity measurement |
| Measuring range [µS/cm] |
0.04...1000 |
| Temperature measurement |
| Measuring range [°C] |
-25...150 |
| Accuracy / deviations |
| Conductivity measurement |
| Accuracy (in the measuring range) |
3 % MW ± 0,03 µS/cm |
| Resolution [µS/cm] |
| 0,001 |
(0...9,999) |
| 0,01 |
(10…99,99) |
| 0,1 |
(100…1000) |
|
| Drift [%/K] |
0,1 %/K MW |
| Repeatability |
1 % MW ± 0,010 µS/cm |
| Long-term stability |
1,5 % MW ± 0,015 µS/cm |
| Temperature measurement |
| Accuracy [K] |
20...50 °C: < ± 0,5 K;
-25...150 °C: < ± 1,5 K |
| Repeatability [K] |
0,2 |
| Resolution [K] |
0.1 |
| Response times |
| Conductivity measurement |
| Response time [s] |
< 2; (T09; Damping = 0) |
| Temperature measurement |
| Response time [s] |
< 9; (T09) |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Measuring Sensor, Identification and Diagnosis |
| SIO mode |
no |
| Required master port type |
A |
| Process data analogue |
1 |
| Min. process cycle time [ms] |
5.6 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
1455 |
|
| Operating conditions |
| Ambient temperature [°C] |
-40...60 |
| Storage temperature [°C] |
-40...85 |
| Protection |
IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68) |
| Tests / approvals |
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-3 |
|
|
| Shock resistance |
| DIN EN 60068-2-27 |
50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
20 g (10...2000 Hz) |
|
| MTTF [years] |
173 |

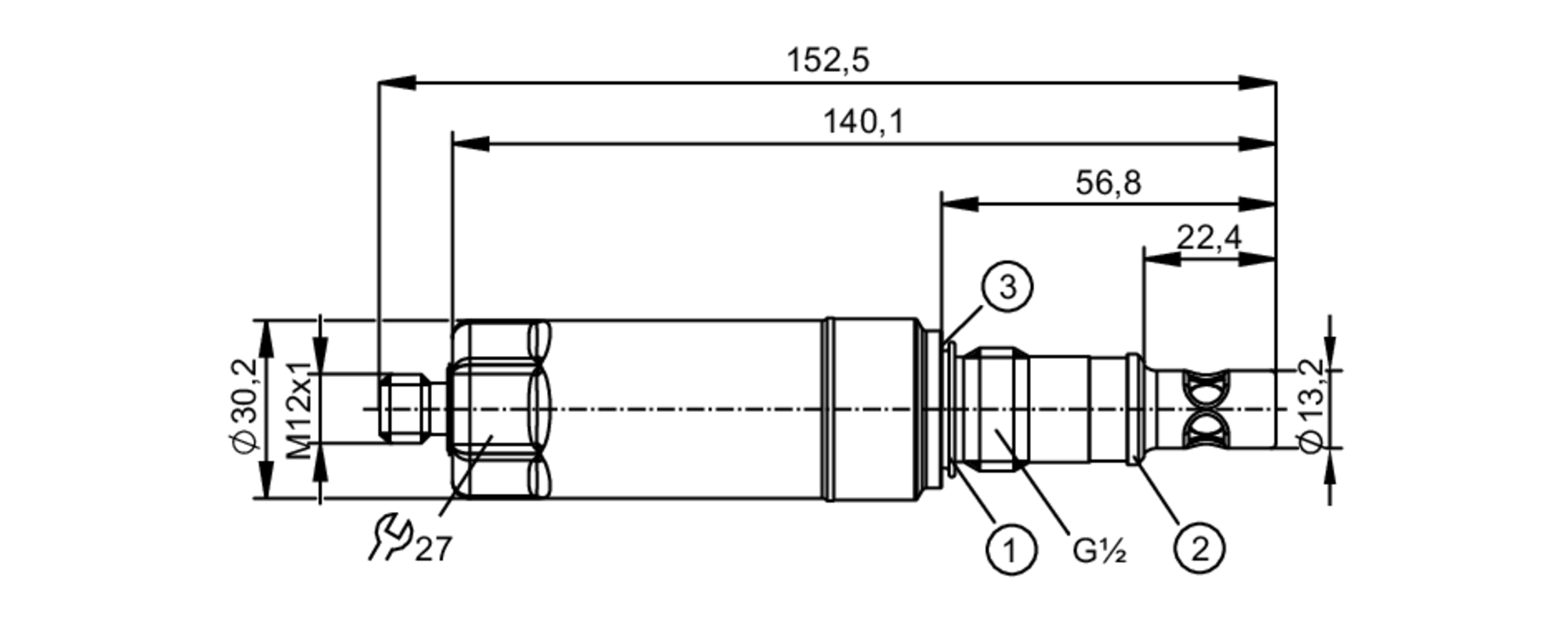

| Mechanical data |
| Weight [g] |
329.9 |
| Materials |
stainless steel (1.4404 / 316L); PEI; FKM |
| Materials (wetted parts) |
stainless steel (1.4435 / 316L); PEEK |
| Process connection |
threaded connection G 1/2 external thread sealing cone optional:hygienic PEEK gasket according to EHEDG |
| Remarks |
| Remarks |
|
| Notes |
Digital meets analogue: integrating modern IO-Link sensors the analogue way. The EIO104 allows you to realise two analogue signals from intelligent IO-Link sensors with several process values. |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12 (EN 61067-2-101); coding: A; Contacts: gold-plated |
