Process adapter Varivent
E33228
ADAPT IFM-VARIV TYP F (D=50)3A
Process adapter Varivent
E33228
ADAPT IFM-VARIV TYP F (D=50)3A
- For the installation of process sensors in pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
{{ifmVariantName}}
| Application | |||
|---|---|---|---|
| Design | with leakage port | ||
| Pressure rating [bar] | 25 | ||
| Tests / approvals | |||
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. | ||
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. | ||
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. | ||
| Mechanical data | |||
| Weight [g] | 225 | ||
| Materials (wetted parts) | stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4 | ||
| Sensor connection | G 1 Aseptoflex Vario | ||
| Process connection | Varivent Form F, DN25 (1"), Ø 50 mm | ||
| Sealing | Gasket | ||
| Hygienic equipment class to DIN 11866 | H4 | ||
| Accessories | |||
| Items supplied |
|
||
| Accessories (optional) |
|
||
| Remarks | |||
| Pack quantity | 1 pcs. | ||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E33228-00 — 16.11.2012 —
|
|||

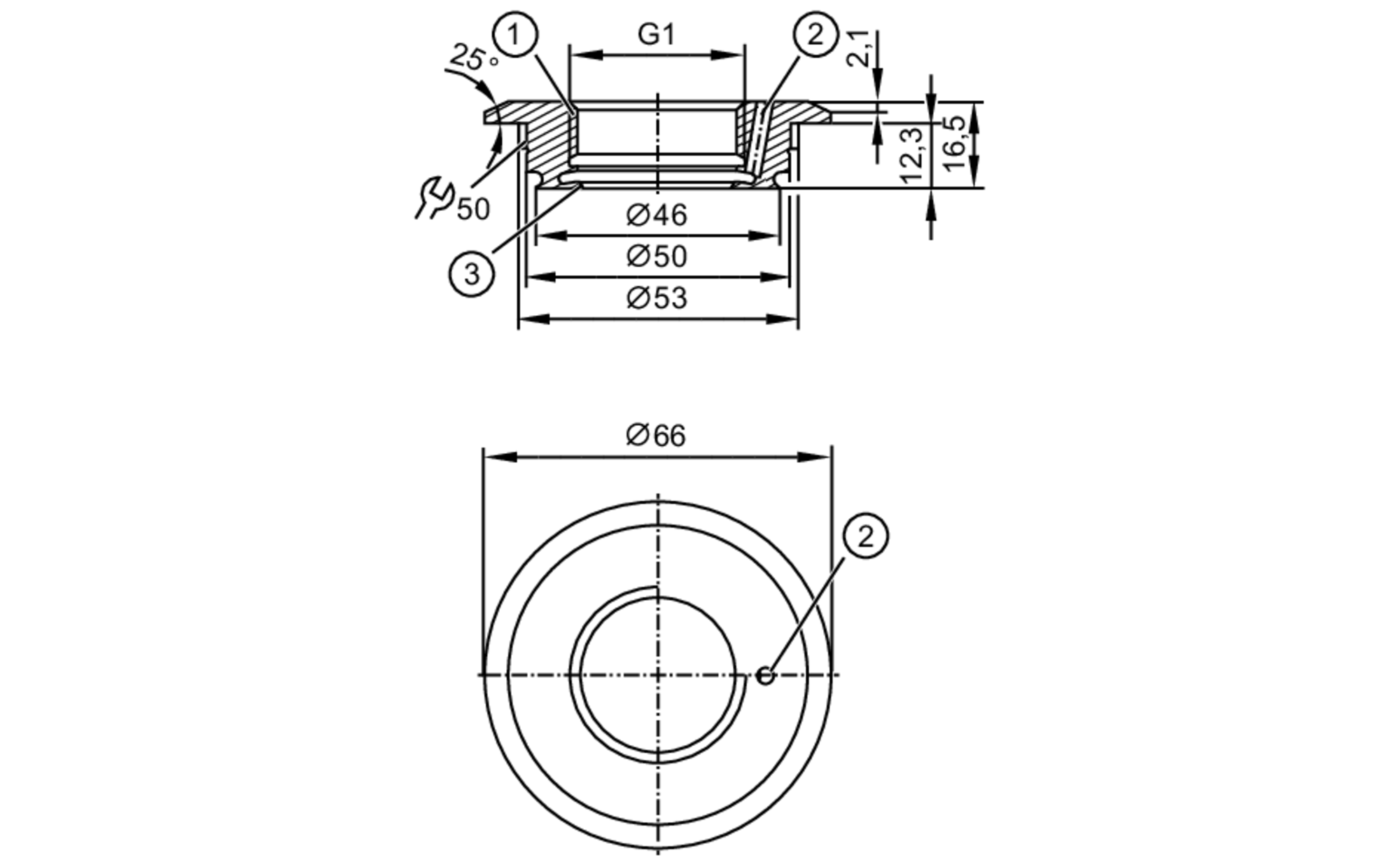

E33228 –
ADAPT IFM-VARIV TYP F (D=50)3A
- 1
- Aseptoflex Vario
- 2
- Leakage port
- 3
- sealing area
