Gasket
E30497
SEAL RING FKM G1
Gasket
E30497
SEAL RING FKM G1
- For reliably sealing tanks, containers and pipes
- For use in combination with process sensors
{{ifmVariantName}}
| Application | |
|---|---|
| Design | for units with process connection G 1 |
| Operating conditions | |
| Ambient temperature [°C] | -15...200 |
| Tests / approvals | |
| Standard | DIN EN ISO 1179-2 |
| Mechanical data | |
| Weight [g] | 6.1 |

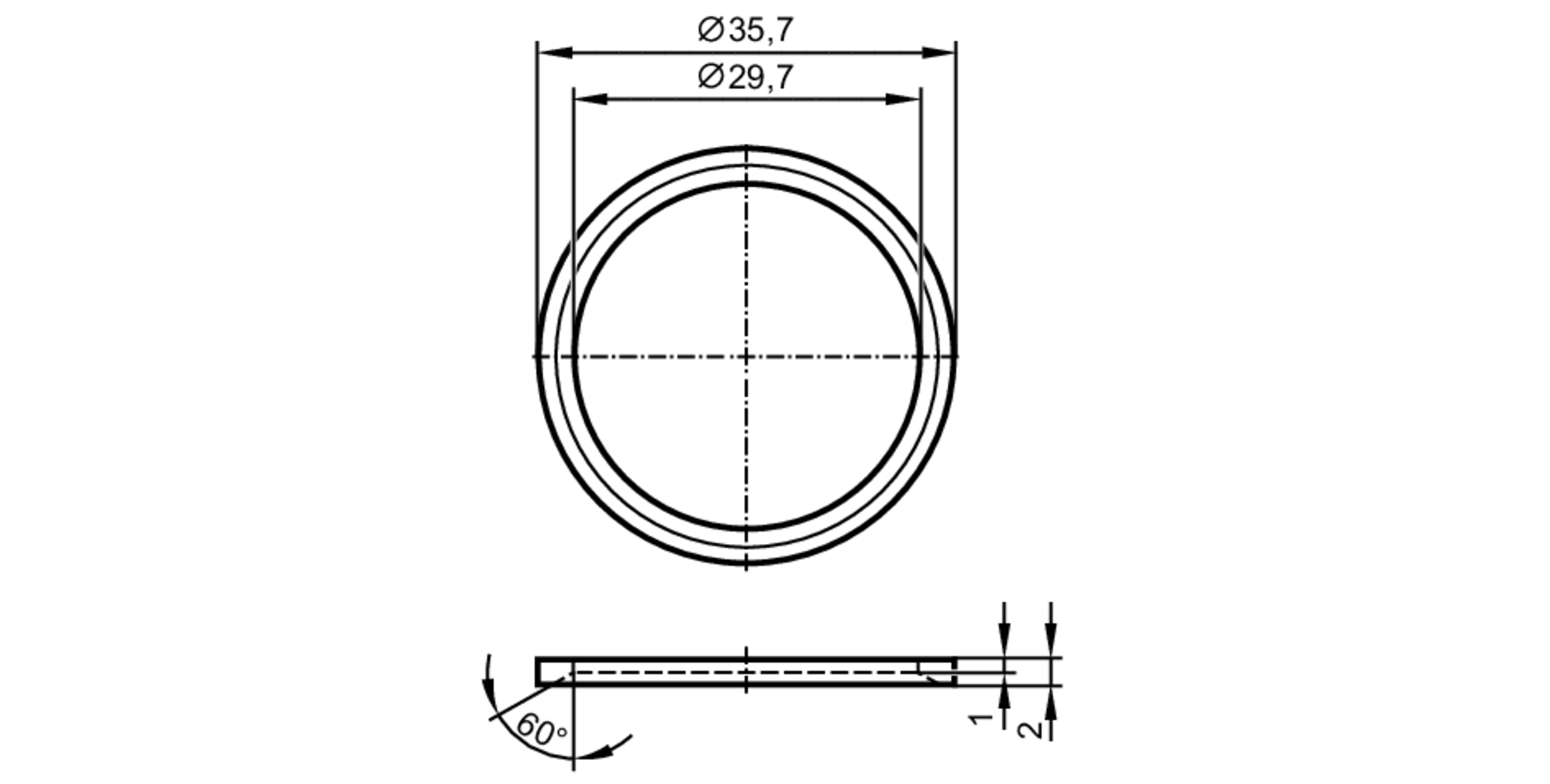

| Inside diameter [mm] | 29.7 |
| External diameter [mm] | 35.7 |
| Materials | FKM |
| Remarks | |
| Pack quantity | 5 pcs. |
