| Electrical data |
| Nominal voltage AC [V] |
230 |
| Nominal voltage DC [V] |
300 |
| Nominal frequency AC [Hz] |
50...60 |
| Input voltage DC [V] |
110...300 |
| Input voltage range AC [V] |
100...240 |
| Output voltage DC [V] |
24...28 |
| Protection class |
I |
| Max. power-on delay time [ms] |
1.3 |
| Max. output current at min. output voltage [A] |
12.5 |
| Max. output current at max. output voltage [A] |
10.7 |
| Output power (permanent) [W] |
300 |
| Output power (peak) [W] |
600 |
| Power factor (nominal voltage 230 V AC / 50 Hz) |
0.97 |
| Number of output circuits |
4 |
| Efficiency (nominal voltage 120 V AC / 60 Hz) [%] |
94.3 |
| Efficiency (nominal voltage 230 V AC / 50 Hz) [%] |
95.7 |
| Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms] |
44 |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] |
44 |
| Input current (nominal voltage 120 V AC / 60 Hz) [A] |
3.2 |
| Input current (nominal voltage 230 V AC / 50 Hz) [A] |
1.68 |
| Interfaces |
| Communication interface |
IO-Link |
| Unterstützte IO-Link Revision |
1.1 |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| SIO mode |
yes |
| Min. process cycle time [ms] |
2.2 |
| Operating conditions |
| Ambient temperature [°C] |
-25...55 |
| Note on ambient temperature |
| the derating of the current load indicated in the operating instructions is to be taken into account at the following ambient temperature: 70 °C |
|
| Storage temperature [°C] |
-40...85 |
| Max. relative air humidity [%] |
95; (relative humidity) |
| Max. height above sea level [m] |
5000 |
| Protection |
IP 65; IP 67 |
| Pollution degree |
3 |
| Tests / approvals |
| EMC |
| EN 61000-4-2 CD |
8 kV / failure criterion A |
| EN 61000-4-2 AD |
15 kV / failure criterion A |
| EN 61000-4-3 |
80 Mhz...2.7 GHz / 20 V/m failure criterion A |
| EN 61000-4-3 |
2.7 GHz...6 GHz kV / 10 V/m failure criterion A |
| EN 61000-4-8 |
50 / 60 Hz / 30 A/m failure criterion A |
| EN 61000-4-4 Burst |
4 kV / failure criterion A |
| EN 61000-4-5 Surge |
2 kV Lx / Ly / failure criterion A |
| EN 61000-4-5 Surge |
4 kV L / PE / failure criterion A |
| EN 61000-4-5 Surge |
1 kV + / - / failure criterion A |
| EN 61000-4-5 Surge |
1 kV + - / PE / failure criterion A |
| EN 61000-4-5 Surge |
1 kV + - / PE / failure criterion A |
| EN 61000-4-5 Surge |
1 kV DC-OK / PE / failure criterion A |
| EN 61000-4-6 |
0.15...80 MHz / 20 V failure criterion A |
| EN 61000-4-11 |
0 V up to 1 cycle / failure criterion A |
| EN 61000-4-11 |
40 % of V / 200 ms failure criterion A |
| EN 61000-4-11 |
70 % of V / 500 ms failure criterion A |
| EN 61000-4-11 |
0 V / 5000 ms failure criterion C |
| VDE 0160 |
1550 V / 1.3 ms failure criterion A |
| EN 55032 |
Class B |
| EN 55032 |
Class B |
| EN 55011 |
Class B |
| EN 61000-3-2 |
|
| EN 61000-3-3 |
|
|
|
|
|
|
| Continuous shock resistance |
| IEC 60068-2-27 |
30 g 6 ms / 20 g 11 ms |
|
| Vibration resistance |
| IEC 600068-2-6 |
2...17.8 Hz ± 1.6mm / 17.8...500 Hz 2 g |
|
| Mechanical data |
| Weight [g] |
1524.5 |
| Dimensions [mm] |
182 x 183 x 59 |
| Materials |
housing: aluminium alloy; housing cap: PC; screws: steel bronzed |
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection - IO-Link |
|
Connector: 1 x M12; coding: A; Locking: brass |
| Electrical connection - Output voltage |
|
Connector: 2 x M12; coding: A; Locking: brass |
| Electrical connection - power supply |
|
Connector: 1 x 7/8"; Locking: brass |
| Diagrams and graphs |

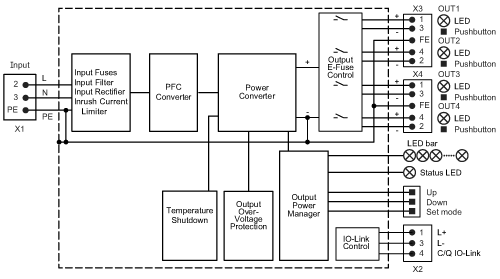

| block diagram |
|

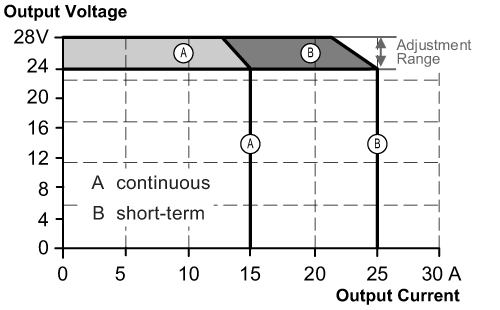

| output characteristics |
|

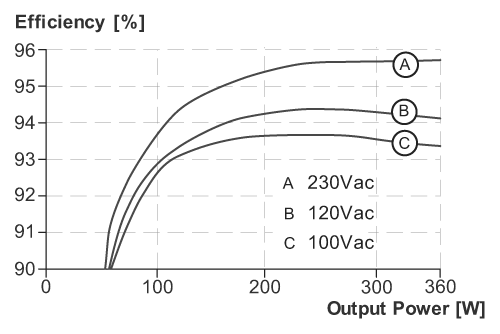

| characteristic curve for degree of efficiency / power loss |
|

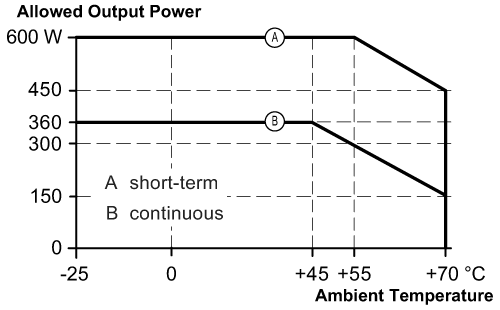

| characteristic line for derating |
|

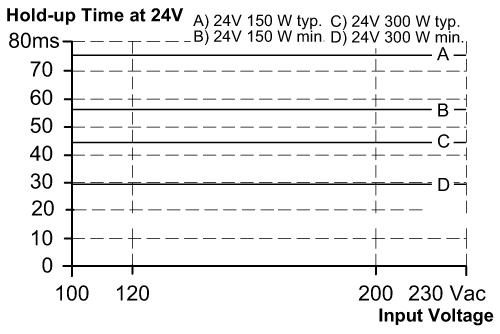

| characteristic line for mains buffering time |
|
