- CR1200
Programmable graphic display for controlling mobile machines
CR1200
R360/PDM360 NG 12"
Programmable graphic display for controlling mobile machines
CR1200
R360/PDM360 NG 12"
- Robust HMIs with backlit function keys with tactile feedback
- High-performance CAN interfaces for various communication tasks
- Freely programmable to IEC 61131-3 with CODESYS 3.5 or CODESYS 2.3
- USB interface for data logging and optional interface for analogue cameras
phase-out article
Alternative articles: CR1204 Product comparison: CR1200 / CR1204 When selecting an alternative article and accessories please note that technical data may differ!
Please do not use for new projects.
{{ifmVariantName}}
| Electrical data | |||||
|---|---|---|---|---|---|
| Operating voltage [V] | 10...32 DC | ||||
| Power consumption [W] | 18 | ||||
| Inputs / outputs | |||||
| Number of inputs and outputs | Number of digital inputs: 1; Number of analogue inputs: 1; Number of digital outputs: 1 | ||||
| Inputs | |||||
| Number of digital inputs | 1 | ||||
| Number of analogue inputs | 1 | ||||
| Analogue input (current) [mA] | 0...20 | ||||
| Analogue input (voltage) [V] | 0...32 | ||||
| Outputs | |||||
| Number of digital outputs | 1 | ||||
| Software / programming | |||||
| PLC function to IEC 61131-3 | yes | ||||
| Interfaces | |||||
| Number of CAN interfaces | 4 | ||||
| Number of Ethernet interfaces | 1 | ||||
| Number of USB interfaces | 2 | ||||
| Number of video interfaces (CVBS) | 2 | ||||
| Mechanical data | |||||
| Weight [g] | 3555 | ||||
| Type of mounting | panel / surface | ||||

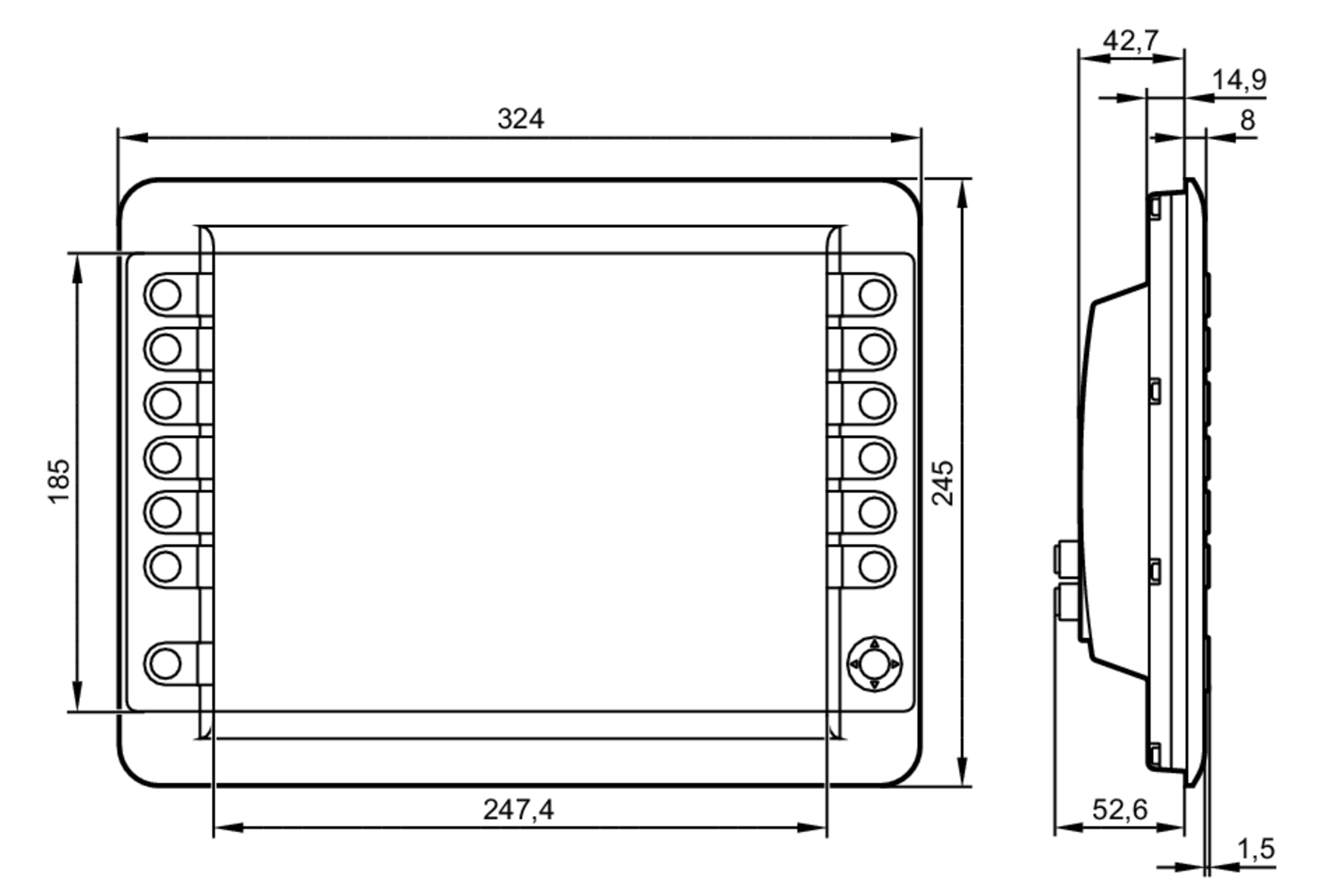

| Dimensions [mm] | 245 x 324 x 62 | ||||
| Displays / operating elements | |||||
| Display |
|
||||
| Operating elements |
|
||||
| Display resolution | 1024 x 768 | ||||
| Display type | colour display | ||||
| Display size | 12" | ||||
| Display background illumination | LED | ||||
| Data memories | |||||
| Real-time clock | yes; | ||||
| Remarks | |||||
| Notes | Please do not use for new projects. | ||||
| Pack quantity | 1 pcs. | ||||
| Electrical connection | |||||
| Connector: 1 x M12 | |||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR1200-00 — 12.05.2022 —
|
|||||
