Y connection cable
EVC854
YSDGHBD0MSS00,1HBDSTGH030MSS
Y connection cable
EVC854
YSDGHBD0MSS00,1HBDSTGH030MSS
Please see the technical note under "Downloads"
{{ifmVariantName}}
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 24 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 53 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Moulded-body material | TPU / TPU | ||||||||||
| Material nut | brass, nickel-plated | ||||||||||
| Sealing material | Viton | ||||||||||
| Connector type | M12 | ||||||||||
| Drag chain suitability | yes | ||||||||||
| Drag chain suitability |
|
Remarks
| Notes | Please see the technical note under "Downloads" |
|---|---|
| Pack quantity | 1 pcs. |

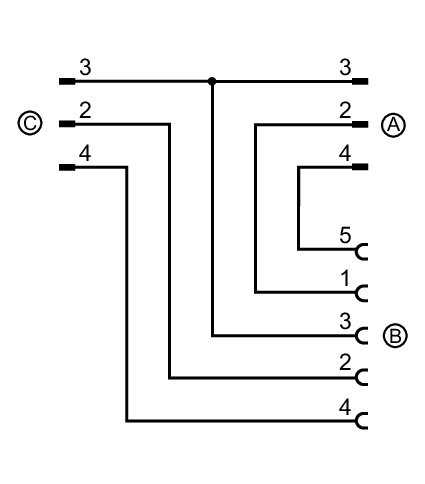

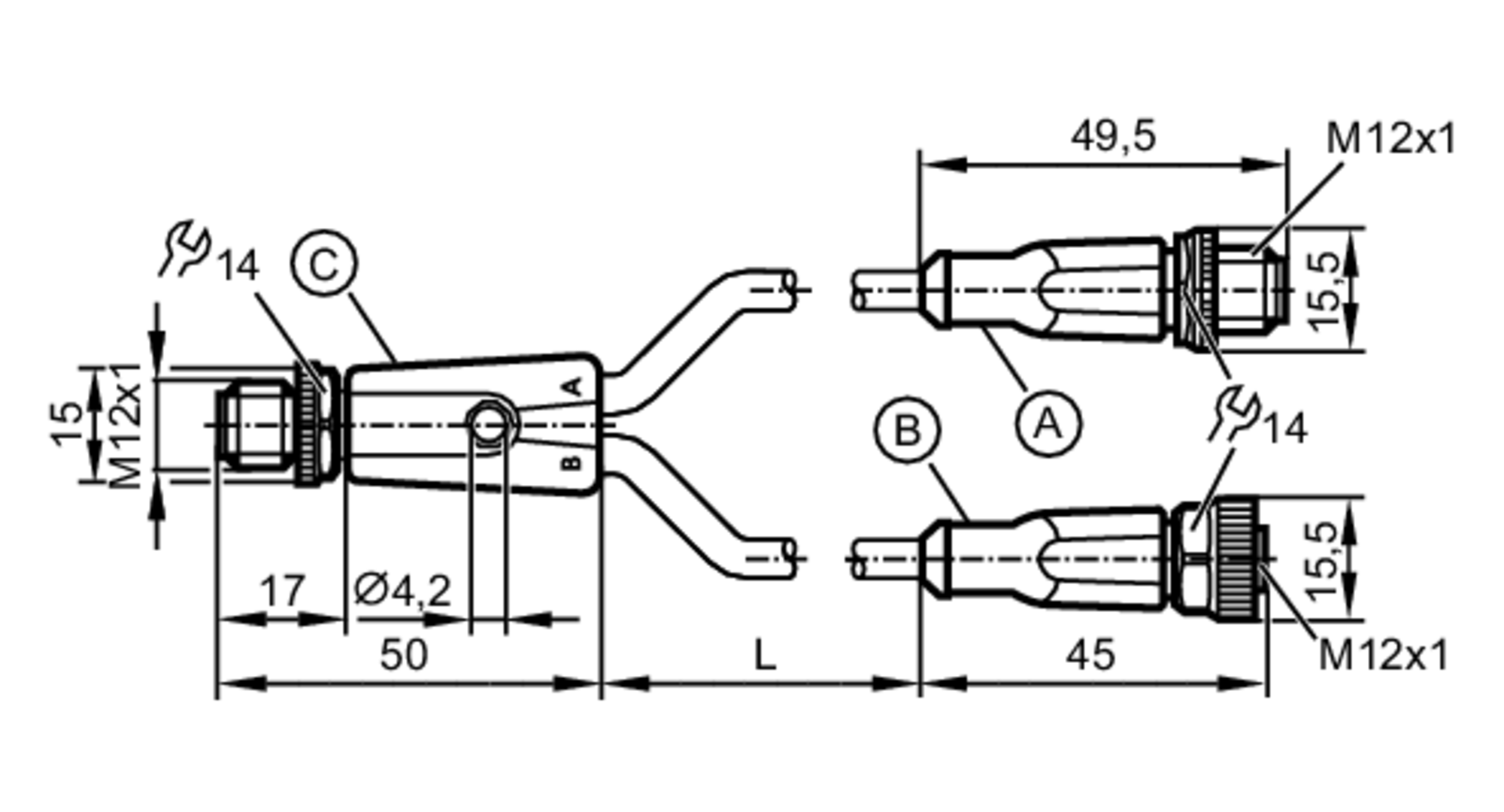

Electrical connection - plug C
| Connector: M12, straight; coding: A; Moulded body: TPU, orange; Locking: Lock nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
Electrical connection
| Connection | Cable: 0.1 m, PUR, Halogen-free, black, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) + 5 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - plug A
| Connector: M12, straight; coding: A; Moulded body: TPU, orange; Locking: Lock nut, brass, nickel-plated; Sealing: Viton; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
Electrical connection - socket B
| Connector: M12, straight; coding: A; Moulded body: TPU, orange; Locking: Lock nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC854-01 — 21.02.2020 —
