process adapter DIN 11864
E33309
ADAPT DIN11864-3-A-BKS-A/DN50
process adapter DIN 11864
E33309
ADAPT DIN11864-3-A-BKS-A/DN50
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
{{ifmVariantName}}
Application
| Design | with leakage port |
|---|---|
| Pressure rating [bar] | 25 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 380.5 |
|---|---|
| Materials (wetted parts) | stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4 |
| Sensor connection | G 1 Aseptoflex Vario |
| Process connection | Clamp DN50 DIN 11864-3-A-BKS |
| Sealing | Gasket |
Accessories
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E33309-00 — 02.03.2017 —

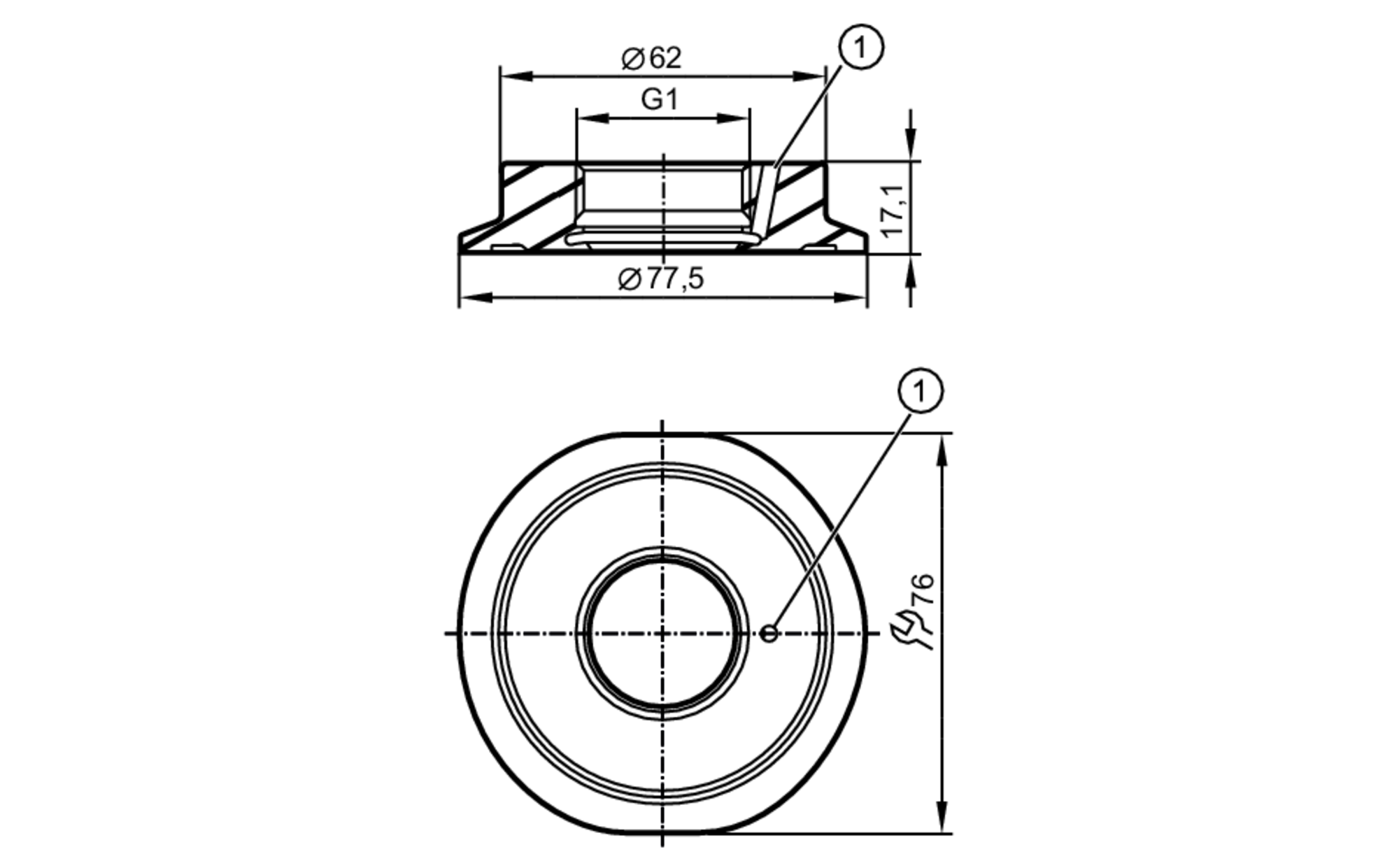

E33309 –
ADAPT DIN11864-3-A-BKS-A/DN50
- 1
- Leakage port
