Welding adapter for process sensors
E30509
ADAPT G1/2-WELDING SLEEVE
Welding adapter for process sensors
E30509
ADAPT G1/2-WELDING SLEEVE
- Welding adapter for process sensors
- Robust stainless steel design for use in harsh industrial environments
- High pressure rating
- For use in industrial environments
{{ifmVariantName}}
Application
| Design | for tanks | ||
|---|---|---|---|
| Pressure rating [bar] | 160 | ||
| Note on pressure rating |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 144.6 |
|---|---|
| Materials | stainless steel (1.4435 / 316L) |
| Sensor connection | G 1/2 |
| Process connection | welding adapter Ø 32 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30509-00 — 26.09.2022 —

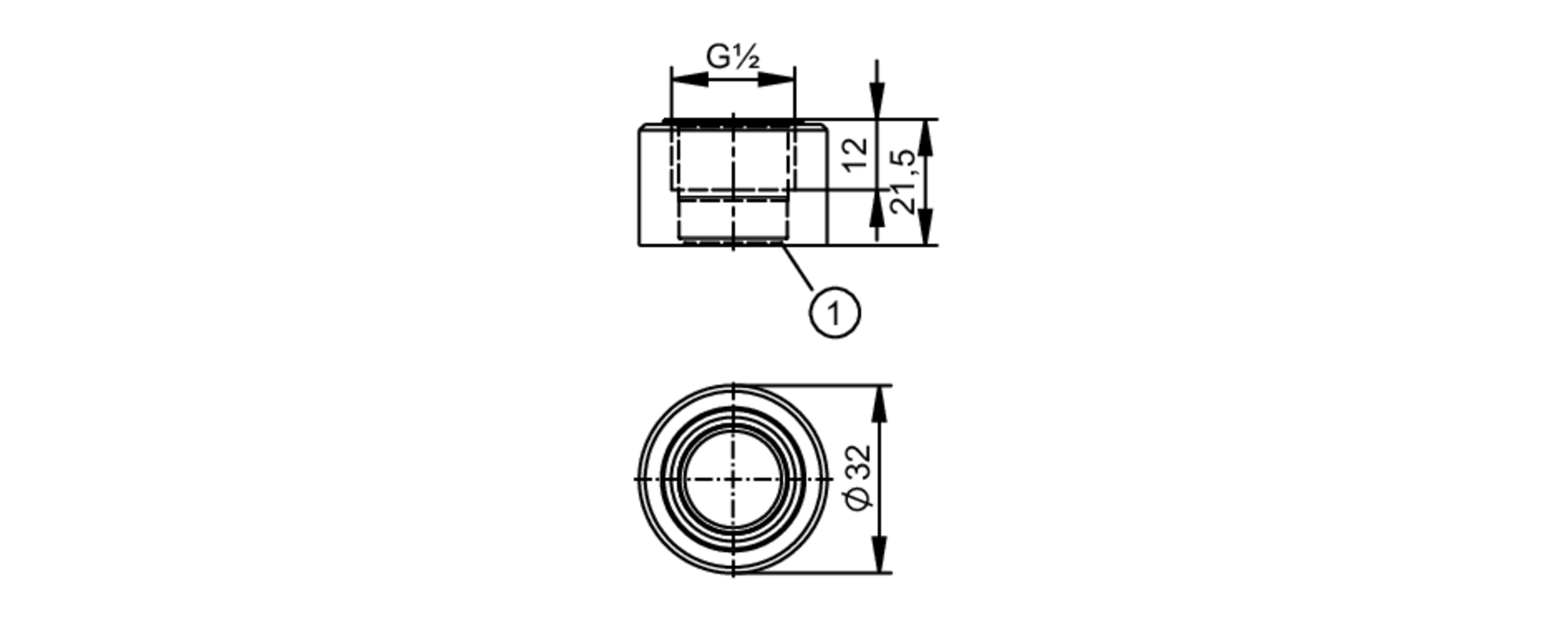

E30509 –
ADAPT G1/2-WELDING SLEEVE
- 1
- sealing edge
