Welding adapter for process sensors
E30130
WELDING ADAPT D50/G1 LEAK PORT
Welding adapter for process sensors
E30130
WELDING ADAPT D50/G1 LEAK PORT
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel design for use in harsh industrial environments
- High pressure rating
{{ifmVariantName}}
Application
| Design | with leakage port | |
|---|---|---|
| Installation | for thin wall thicknesses | |
| Pressure rating [bar] | 50 | |
| Note on pressure rating |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 187 |
|---|---|
| Materials (wetted parts) | stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4 |
| Sensor connection | G 1 Aseptoflex Vario |
| Process connection | welding adapter Ø 50 mm |
| Sealing | Gasket |
Accessories
| Items supplied |
|
|
|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30130-01 — 16.04.2013 —

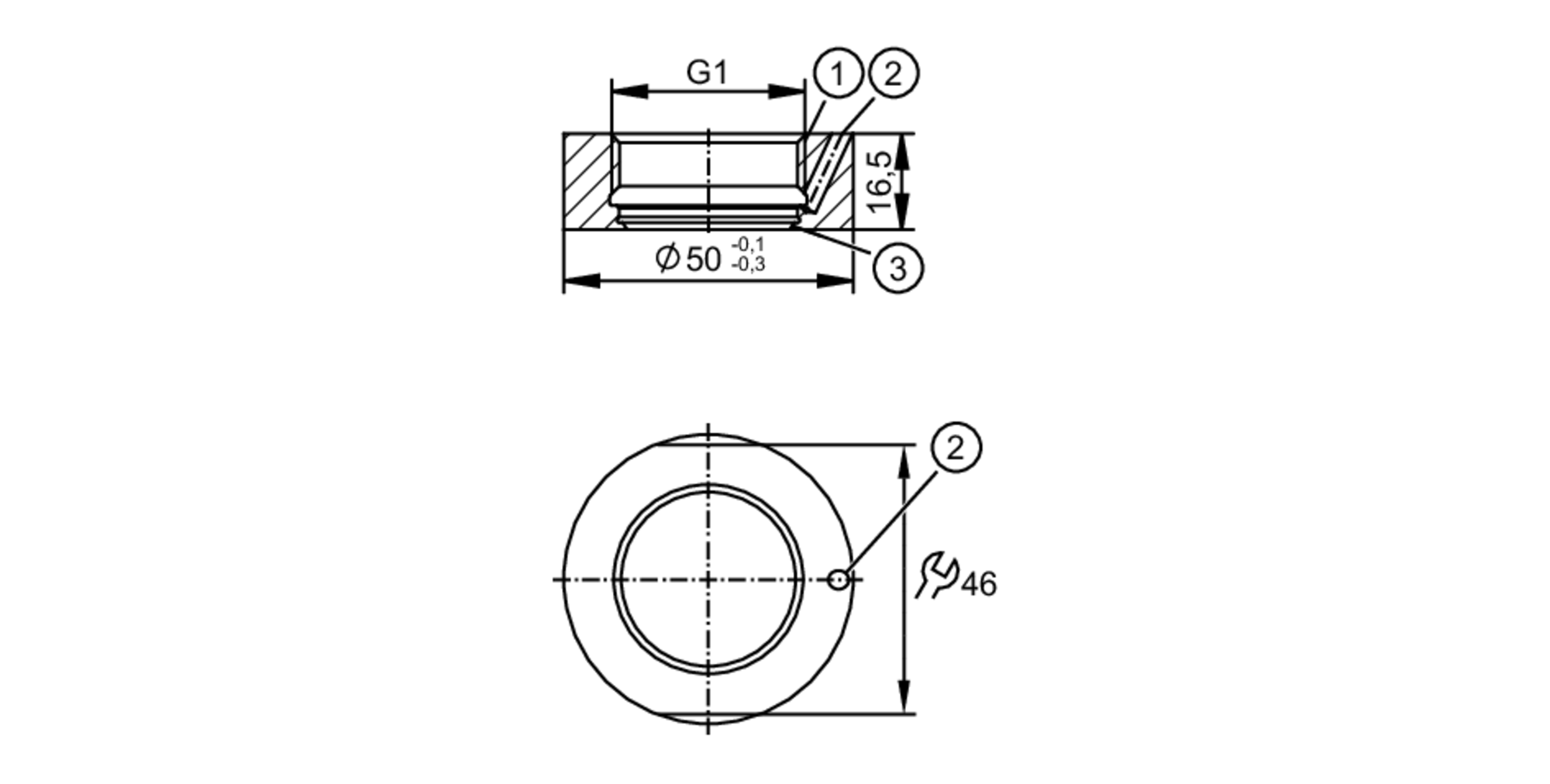

E30130 –
WELDING ADAPT D50/G1 LEAK PORT
- 1
- Aseptoflex Vario
- 2
- Leakage port
- 3
- sealing area
