Protective cap
E12542
Protective cap M12 V4A 4pcs.
Protective cap
E12542
Protective cap M12 V4A 4pcs.
- Protection against penetrating moisture for splitter boxes and modules
- Ensuring the protection rating even if sockets are not used
- For use in hygienic and wet areas in the food industry
- Robust, high-quality stainless steel design
{{ifmVariantName}}
| Application | |
|---|---|
| Design | for hygienic and wet areas in the food industry |
| Installation | Use only with protection class III devices |
| Operating conditions | |
| Ambient temperature [°C] | -25...100 |
| Mechanical data | |
| Weight [g] | 27.3 |
| Materials | end caps: stainless steel (1.4404 / 316L); Sealing: EPDM |
| Tightening torque [Nm] | 0.6; (Take into account the maximum value of the counterpart!) |
| Remarks | |
| Pack quantity | 4 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12542-00 — 26.01.2017 —
|
|

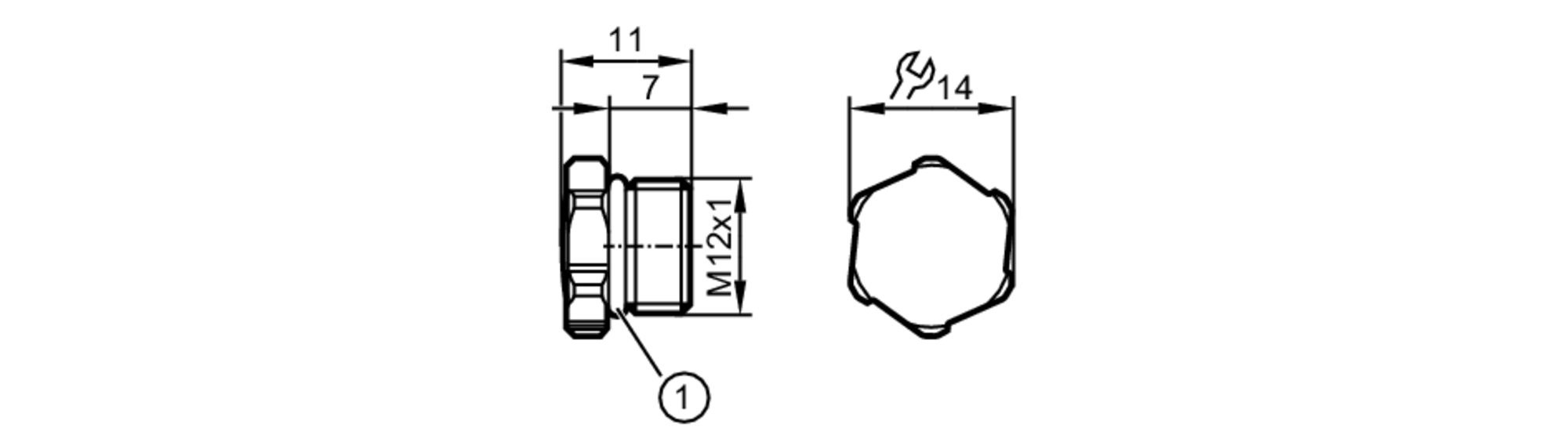

E12542 –
Protective cap M12 V4A 4pcs.
- 1:
- O-ring
