ISOBUS gateway
CR3121
ISOBUS Gateway/VT
ISOBUS gateway
CR3121
ISOBUS Gateway/VT
- Safe communication between attachment and tractor unit
- Pre-loaded ISOBUS object pool for display on the universal terminal (UT)
- Simple configuration via CODESYS using ISOBUS libraries
- Quick and easy implementation without additional licence costs
- Certified by the AEF (Agriculture Industry Electronics Foundation)
{{ifmVariantName}}
| Electrical data | |||||
|---|---|---|---|---|---|
| Operating voltage [V] | 12...27 DC | ||||
| Current consumption [mA] | 11...48 | ||||
| Interfaces | |||||
| Communication interface | CAN | ||||
| Number of CAN interfaces | 2 | ||||
| Terminating resistor | yes; (internal ; 120 Ohm; cannot be deactivated) | ||||
| CAN | |||||
| Transmission rate | 250 (125...1000) kBaud | ||||
| Interface | CAN Interface 2.0 A/B ISO 11898 | ||||
| Note on interfaces |
|
||||
| ISOBUS | |||||
| Transmission rate | 250 kBaud | ||||
| Interface | CAN Interface ISO 11783 | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | -40...80 | ||||
| Protection | IP 67 | ||||
| Mechanical data | |||||
| Weight [g] | 190.1 | ||||
| Type of mounting | panel / surface | ||||
| Dimensions [mm] | 72 x 104 x 29 | ||||
| Materials | housing: PA 12 black | ||||
| Displays / operating elements | |||||
| Display |
|
||||
| Hardware | |||||
| Processor | ARM Cortex M4 32 bit | ||||
| Program memory | 1,5 MB Flash | ||||
| Working memory | RAM: 320 kB FRAM: 16 kB | ||||
| Remarks | |||||
| Pack quantity | 1 pcs. | ||||
| Electrical connection - CAN | |||||
| Connector: 1 x M12; coding: A | |||||
| Electrical connection - ISOBUS | |||||
| Connector: 1 x M12; coding: A | |||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR3121-00 — 23.03.2022 —
|
|||||

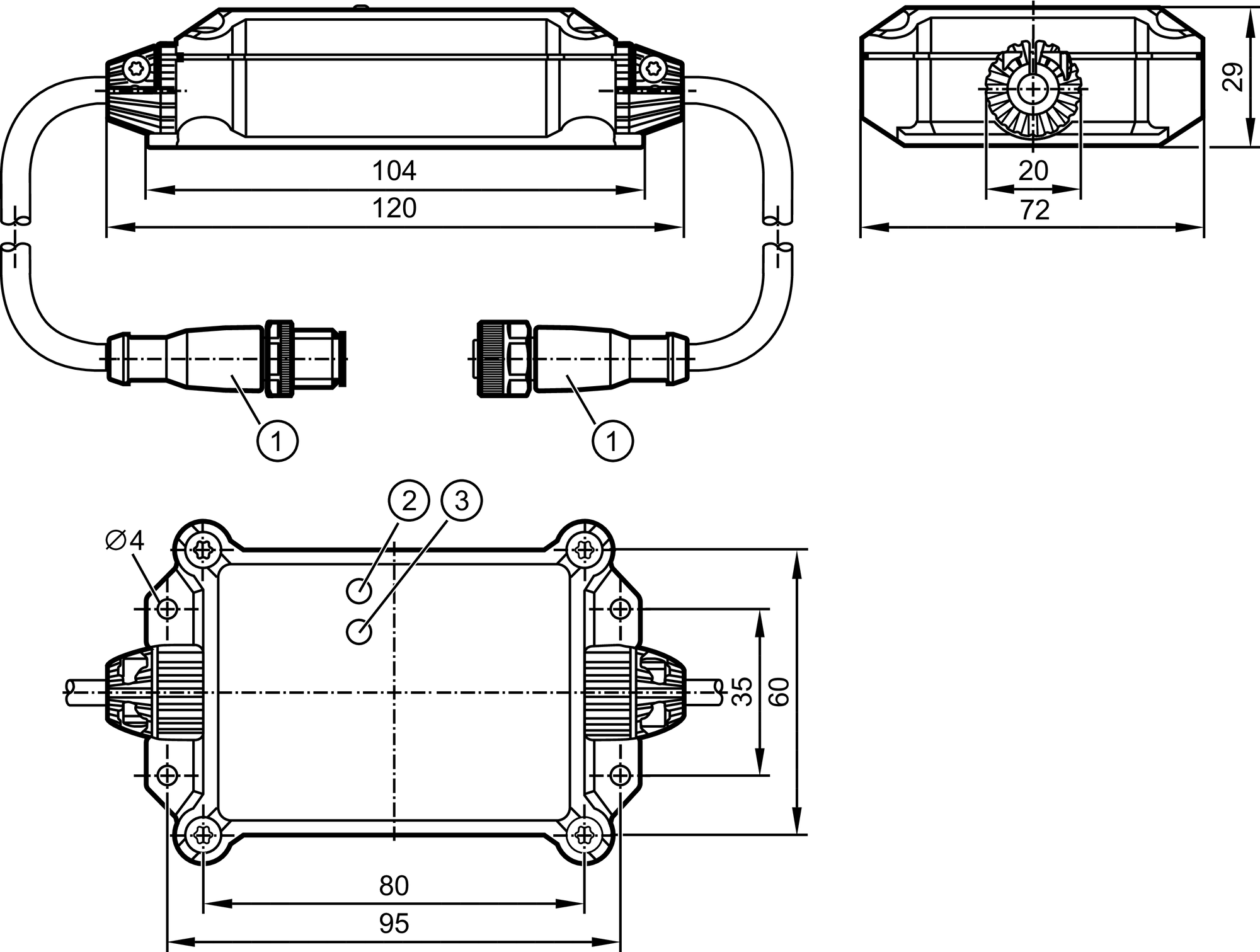

CR3121 –
ISOBUS Gateway/VT
- 1
- connectors M12
- 2
- power LED
- 3
- status LED
Electrical connection - CAN
- 1
- n.c.
- 2
- n.c.
- 3
- n.c.
- 4
- CAN_H
- 5
- CAN_L
Connector: 1 x M12; coding: A
Electrical connection - ISOBUS
- 1
- n.c.
- 2
- VBB
- 3
- GND
- 4
- CAN_H
- 5
- CAN_L
Connector: 1 x M12; coding: A
