Article no longer available - archive entry

Colour sensor

ODC-MNKG/US

OD5014

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

Download
Technische Details
Application
Application colour recognition
Electrical data
Operating voltage [V] 12...30 DC
Max. residual ripple [Vss] 5
Current consumption [mA] 80
Protection class II
Type of light red light; green light; blue light
Typ. lifetime [h] 100000
Reference temperature for service life [°C] 25
Outputs
Electrical design NPN
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 1000
Detection zone
Range [m] 0.002...0.004; (Through-beam sensor)
Range [mm] < 9; (in diffuse reflection mode)
Response times
Response time [s] 0.7
Operating conditions
Ambient temperature [°C] -10...55
Protection IP 67
Max. immunity to extraneous light [klx] 20
Tests / approvals
EMC
EN 60947-5-2
Mechanical data
Housing rectangular
Dimensions [mm] 53 x 30 x 103
Materials diecast zinc
Displays / operating elements
Display
operation 1 x LED, green
function 1 x LED, yellow
Accessories
Accessories (supplied)
Lock nut: 2 x
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

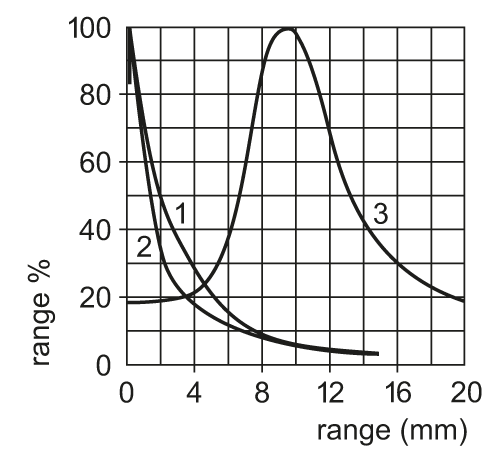

accuracy graph
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
Note : range % = setting in % of the range
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OD5014-00 — 30.11.2006 —
