| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Measuring range |
| 6...1584 gph |
0.1...26.4 gpm |
|
| Process connection |
threaded connection G 1 DN25 flat seal |
| Application |
| Special feature |
Gold-plated contacts |
| Application |
totaliser function; for industrial applications |
| Installation |
connection to pipe by means of an adapter |
| Media |
conductive liquids; water; hydrous media |
| Note on media |
| conductivity: ≥ 20 µS/cm |
| viscosity: < 70 mm²/s (40 °C) |
|
| Medium temperature [°F] |
14...158 |
| Pressure rating [bar] |
16 |
| Pressure rating [psi] |
232 |
| MAWP (for applications according to CRN) [bar] |
11.2 |
| Electrical data |
| Operating voltage [V] |
18...30 DC; (according to EN 50178 SELV/PELV) |
| Current consumption [mA] |
95; (24 V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
5 |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Inputs |
| Inputs |
counter reset |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; pulse signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
200 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4...20; (scalable) |
| Max. load [Ω] |
500 |
| Analogue voltage output [V] |
0...10; (scalable) |
| Min. load resistance [Ω] |
2000 |
| Pulse output |
flow rate meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
| 6...1584 gph |
0.1...26.4 gpm |
|
| Display range |
| -1902...1902 gph |
-31.7...31.7 gpm |
|
| Resolution |
|
| Set point SP |
| 14...1586 gph |
0.25...26.4 gpm |
|
| Reset point rP |
| 6...1578 gph |
0.1...26.25 gpm |
|
| Analogue start point ASP |
| 0...1272 gph |
0...21.2 gpm |
|
| Analogue end point AEP |
| 312...1586 gph |
5.2...26.4 gpm |
|
| In steps of |
|
| Volumetric flow quantity monitoring |
| Pulse value |
0.01...100 000 000 gal |
| Pulse length [s] |
0,0025...2 |
| Temperature monitoring |
| Measuring range [°F] |
-4...176 |
| Resolution [°F] |
0.5 |
| Set point SP [°F] |
-2.5...176 |
| Reset point rP [°F] |
-3.5...175 |
| Analogue start point [°F] |
-4...140.5 |
| Analogue end point [°F] |
31.5...176 |
| In steps of [°F] |
0.5 |
| Accuracy / deviations |
| Flow monitoring |
| Accuracy (in the measuring range) |
± (0,8 % MW + 0,5 % MEW) |
| Repeatability |
± 0,2% MEW |
| Temperature monitoring |
| Accuracy [K] |
± 4,5 (Q > 0,26 gpm) |
| Response times |
| Flow monitoring |
| Response time [s] |
0.15; (dAP = 0, T19) |
| Delay time programmable dS, dr [s] |
0...50 |
| Damping for the switching output dAP [s] |
0...5 |
| Temperature monitoring |
| Dynamic response T05 / T09 [s] |
T09 = 20 (Q > 0,26 gpm) |
| Software / programming |
| Parameter setting options |
Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/pulse output; start-up delay; display can be deactivated; Display unit |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
3 |
| Process data binary |
2 |
| Min. process cycle time [ms] |
5 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
576 |
|
| Operating conditions |
| Ambient temperature [°F] |
14...140 |
| Storage temperature [°F] |
-13...176 |
| Protection |
IP 67 |
| Tests / approvals |
| EMC |
|
| Shock resistance |
| DIN IEC 68-2-27 |
20 g (11 ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 |
5 g (10...2000 Hz) |
|
| MTTF [years] |
145 |
| Pressure Equipment Directive |
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
| Weight [g] |
645 |
| Materials |
stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); PEEK; FKM |
| Process connection |
threaded connection G 1 DN25 flat seal |
| Displays / operating elements |
| Display |
| Display unit |
6 x LED, green (gpm, gph, gal, °F, 10³, 1000 x 10³) |
| switching status |
2 x LED, yellow |
| measured values |
alphanumeric display, 4-digit |
| programming |
alphanumeric display, 4-digit |
|
| Remarks |
| Remarks |
| MW = measured value |
| MEW = Final value of the measuring range |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12; Contacts: gold-plated |
| Diagrams and graphs |

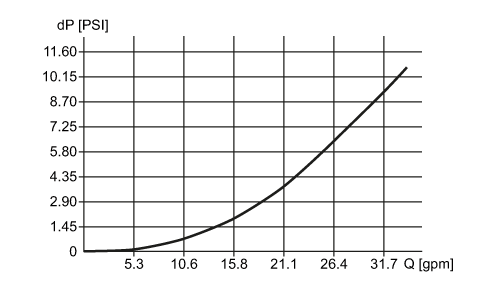

| Pressure loss |
|
dP
|
Pressure loss |
|
Q
|
volumetric flow quantity |
|
