RV6152

Incremental encoder with solid shaft

RV6152

RV-1024-I24/L6

Incremental encoder with solid shaft

RV6152

RV-1024-I24/L6

Defined pulse sequence for the reliable detection of rotational speeds
For precise position determination and linear measurement
Quick and easy mounting
High shock and vibration resistance

Article no longer available - archive entry

Product characteristics

Resolution	1024 resolution
Shaft design	solid shaft
Shaft diameter [mm]	10

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	95; ((max. 150); without load)

Outputs

Electrical design	HTL
Max. current load per output [mA]	50
Switching frequency [kHz]	300
Type of short-circuit protection	< 60 s

Measuring/setting range

Resolution	1024 resolution

Operating conditions

Ambient temperature [°C]	-40...100
Max. relative air humidity [%]	75; (briefly: 95 %; condensation not permissible)
Protection	IP 64; (on the housing: IP 67; on the shaft: IP 64)

Tests / approvals

Shock resistance

200 g (6 ms)

Vibration resistance

30 g (55...2000 Hz)

Mechanical data

Weight [g]

733.8

Dimensions [mm]

Ø 58 / L = 46.7

Materials

aluminium

Max. revolution, mechanical [U/min]

16000

Max. starting torque [Nm]

Reference temperature torque [°C]

Shaft design

solid shaft

Shaft diameter [mm]

Shaft material

steel (1.4104)

Max. shaft load axial (at the shaft end) [N]

Max. shaft load radial (at the shaft end) [N]

Electrical connection

	Cable: 6 m, PUR; radial, can also be used axially

Diagrams and graphs

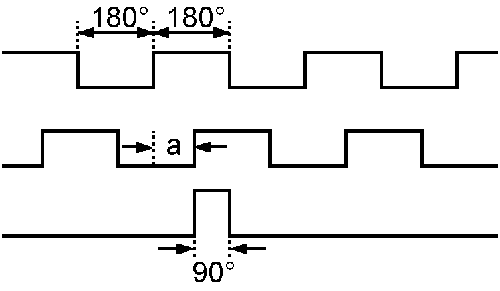

Pulse diagram

	Output A
	Output B
	0 index

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RV6152-01 — 01.09.2010 —
