| Product characteristics |
| Type of light |
red light |
| Housing |
rectangular |
| Dimensions [mm] |
35 x 24 x 11 |
| Application |
| Function principle |
Diffuse reflection sensor |
| Electrical data |
| Operating voltage [V] |
10...30 DC |
| Current consumption [mA] |
< 22 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length [nm] |
660 |
| Outputs |
| Electrical design |
NPN |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
200 |
| Switching frequency DC [Hz] |
2000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Detection zone |
| Range [mm] |
1...600; (white paper 200 x 200 mm 90 % remission) |
| Range adjustable |
yes |
| Max. light spot diameter [mm] |
60 |
| Light spot dimensions refer to |
at maximum range |
| Operating conditions |
| Ambient temperature [°C] |
-25...60 |
| Protection |
IP 67 |
| Tests / approvals |
| EMC |
|
| MTTF [years] |
911 |
| Mechanical data |
| Weight [g] |
40 |
| Housing |
rectangular |
| Dimensions [mm] |
35 x 24 x 11 |
| Materials |
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS |
| Lens material |
|
| Lens alignment |
front lens |
| Displays / operating elements |
| Display |
| switching status |
1 x LED, yellow |
| operation |
1 x LED, green |
| function |
1 x LED, red |
|
| Electronic lock |
yes |
| Accessories |
| Accessories (supplied) |
| Basic clip: 1 x, E20964 |
| screws: 2 x x M3 x 16 |
| spring washers: 2 x |
| Nuts: 2 x |
|
| Remarks |
| Remarks |
| operating voltage "supply class 2" according to cULus |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M8 |
| Diagrams and graphs |

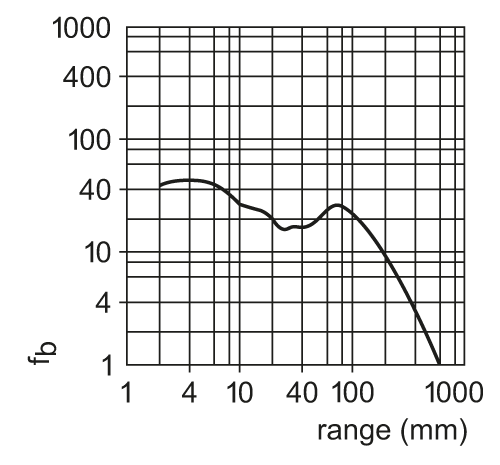

| excess gain graph |
|
