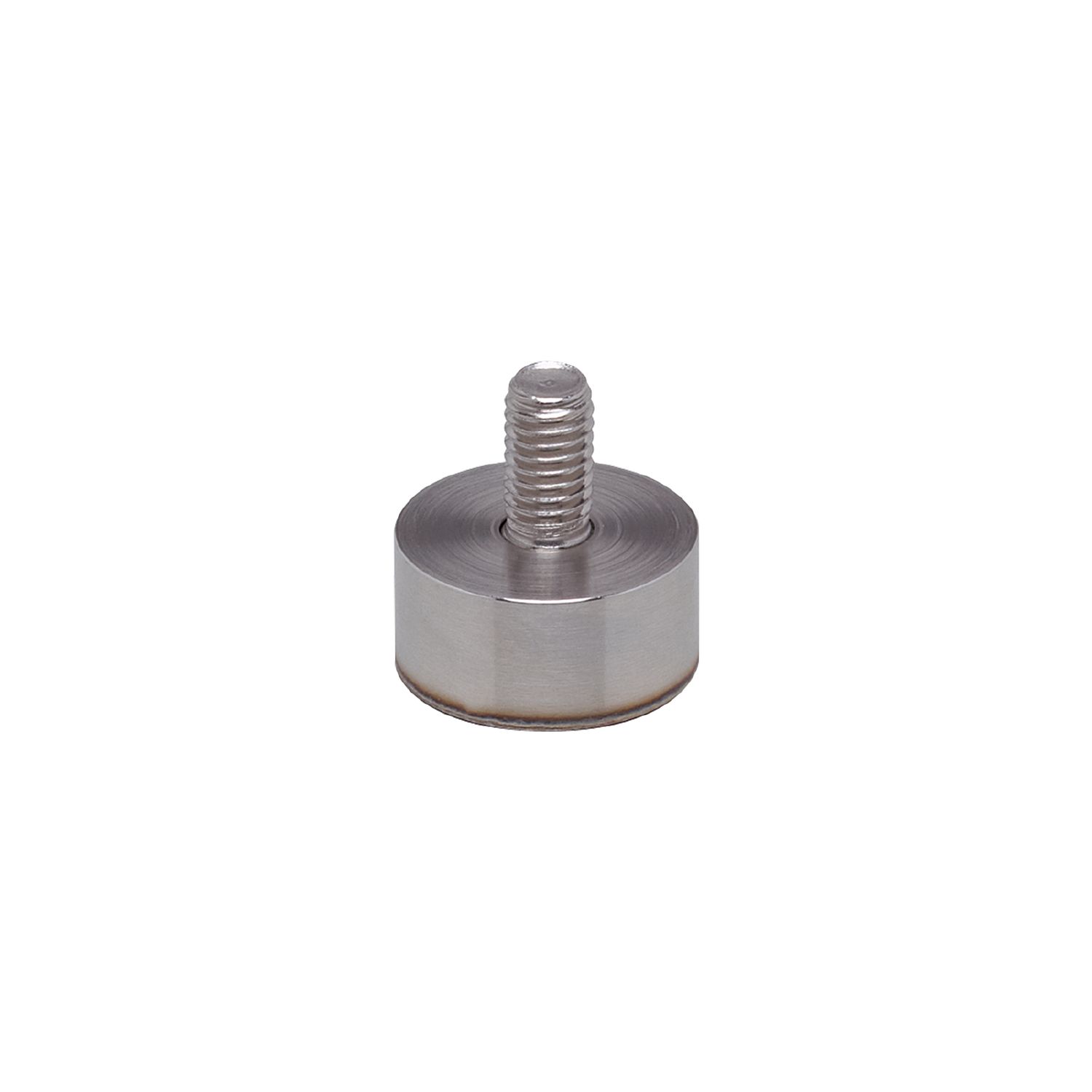

Damping magnet

E12291

MAGNET M3.1/HARD F.STAINLESS

Damping magnet

E12291

MAGNET M3.1/HARD F.STAINLESS

  • For ensuring a long sensing range
  • For use in combination with magnetic sensors
  • hidden installation behind aluminium or stainless steel is possible
  • Wide operating temperature range
{{ifmVariantName}}



Technical details
Operating conditions
Ambient temperature [°C] -25...250
Mechanical data
Weight [g] 22.7
Dimensions [mm] Ø 20
Materials hard ferrite HF 26/22; stainless steel (1.4571/316Ti )
Magnetic field strength [mT] 70
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12291-01 — 10.01.2020 —
