  6. OGE381

OGE381

Through-beam sensor receiver

OGE-HPKG/US/V4A/CUBE

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Robust rectangular stainless steel housing with M18 thread on the side
  • Resistant to high-pressure cleaning with aggressive cleaning agents
  • High protection rating for the requirements of the food and beverage industry
  • Ready for operation immediately thanks to fixed setting
  • Very long range
  • ce
  • eac
  • cul
  • iolink

Download
Technische Details
Product characteristics
Type of light red light
Housing rectangular
Dimensions [mm] M18 x 1
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 16
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 662
Outputs
Electrical design PNP
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Transmitter / receiver receiver
Range [m] < 15
Range adjustable no
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
IO-Link device ID 1144 d / 00 04 78 h
Profiles Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel
SIO mode yes
Required master port type A
Min. process cycle time [ms] 2.5
IO-Link functions (cyclical)
function bit length
device status 4
binary switching information 1
IO-Link functions (acyclical) application specific tag; operating hours counter; switching cycles counter
Note
For further information please see the IODD PDF file at "Downloads"
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...80
Protection IP 65; IP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 961
UL approval
Ta -25... 80 °C
Enclosure type Type 1
voltage supply Class 2
File number UL E174191
Mechanical data
Weight [g] 78
Housing rectangular
Dimensions [mm] M18 x 1
Thread designation M18 x 1
Materials 1.4542 (17-4 PH / 630); PEI
Lens material
PEI
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
Accessories
Accessories (supplied)
lock nut: 1 x, stainless steel
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

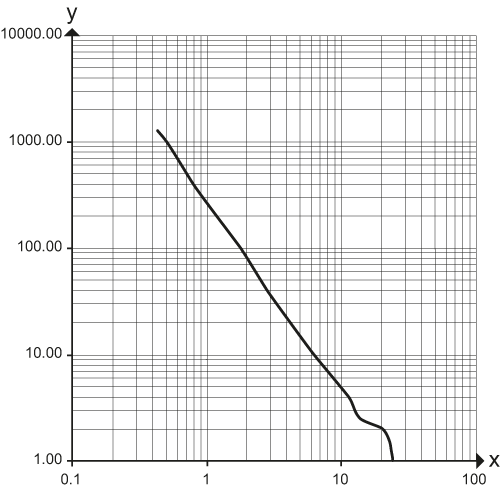

excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGE381-01 — 15.08.2019 —
