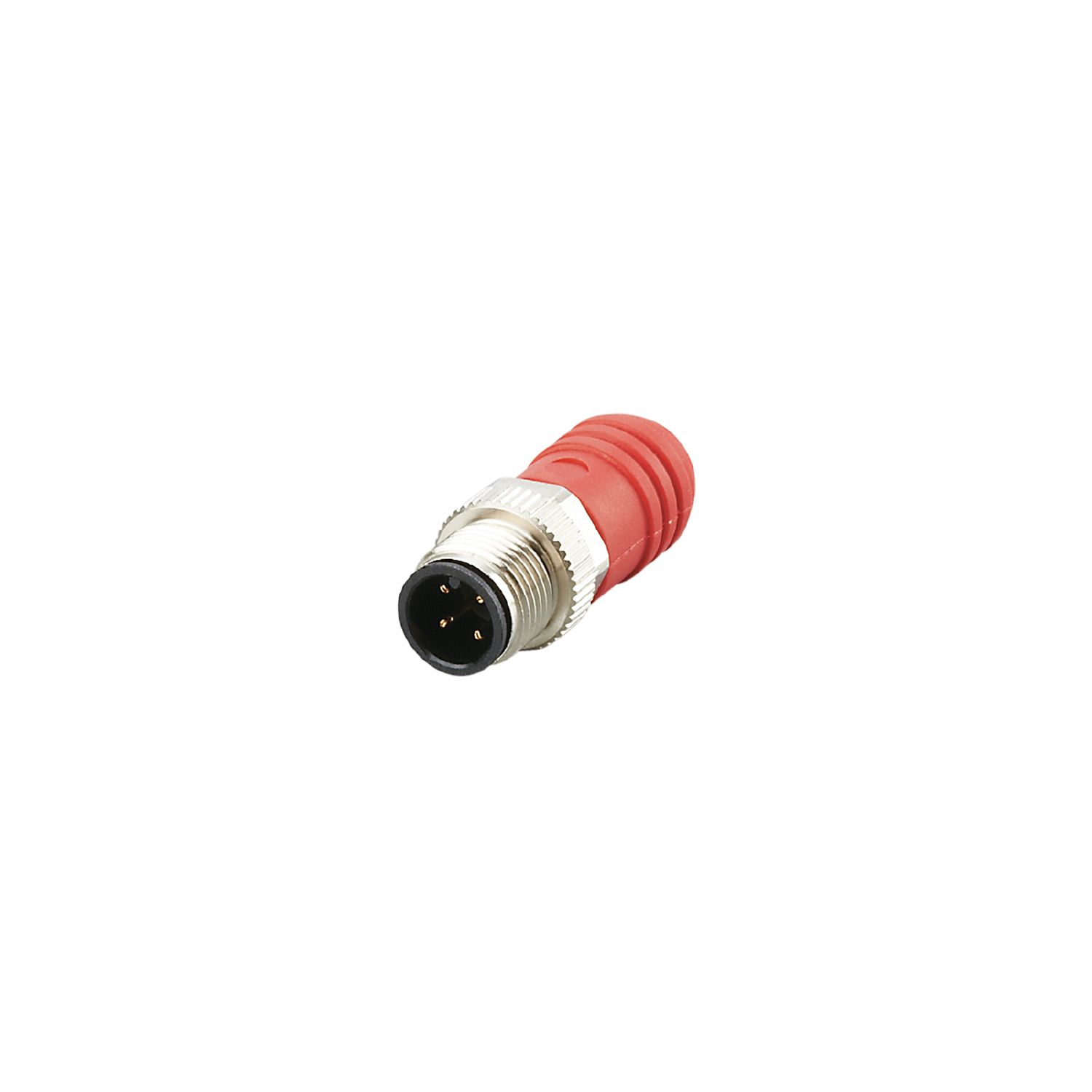

Bridging plug for AS-Interface safety modules

Short-circuit plug f.AC509S

E7008S

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • For use in combination with AS-Interface safety modules
  • For simulating a short circuit
  • High protection rating for the requirements of harsh industrial environments
  • Easy connection via the tried-and-tested M12 connector
  • Wide operating temperature range
Download
Technische Details
Application
Application bridging plug for safe input module
Operating conditions
Ambient temperature [°C] -25...90
Protection IP 67
Mechanical data
Weight [g] 11.3
Dimensions [mm] 15 x 15 x 37
Materials PUR
Material nut brass, nickel-plated
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Connector: 1 x M12; Moulded body: PUR; Locking: brass, nickel-plated
