| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 1 |
| Application |
| Special feature |
Gold-plated contacts |
| Application |
for retrofitting of existing IO-Link systems; for systems without IO-Link capabilities |
| Electrical data |
| Operating voltage [V] |
18...30 DC; (on the master side; on the controller / system: 20...30 DC) |
| Nominal voltage DC [V] |
24 |
| Current consumption [mA] |
< 17; (both sides) |
| Protection class |
III |
| Reverse polarity protection |
yes; (on the master side) |
| Power-on delay time [s] |
< 2; (for communication; response time switching signal: response time device plus IO-Link process cycle time) |

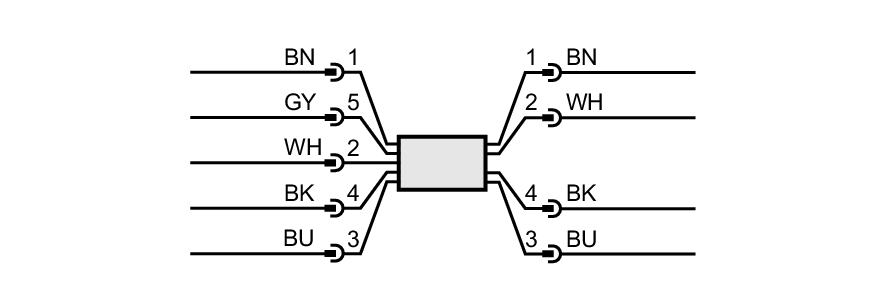

| Inputs / outputs |
| Total number of inputs and outputs |
1; (on the controller / system) |
| Number of inputs and outputs |
Number of digital outputs: 1 |
| Outputs |
| Output signal |
switching signal; IO-Link |
| Electrical design |
PNP |
| Number of digital outputs |
1 |
| Output function |
normally open / normally closed |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
200 |
| Type of short-circuit protection |
pulsed |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Interfaces |
| Communication interface |
IO-Link |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
1107 |
|
| IO-Link Device |
| Note on interfaces |
| connection to IO-Link masters |
|
| Unterstützte Masterportklasse |
A |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Identification and Diagnosis (0x4000) |
| SIO mode |
yes |
| Min. process cycle time [ms] |
4.2 |
| IO-Link Master |
| Note on interfaces |
| connection to IO-Link devices |
|
| Unterstützte Masterportklasse |
A / B |
| Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision |
1.0; 1.1 |
| SDCI standard |
IEC 61131-9 |
| Operating conditions |
| Ambient temperature [°C] |
-25...60 |
| Storage temperature [°C] |
-25...70 |
| Protection |
IP 67 |
| Tests / approvals |
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-4 |
in plastic or open metal tanks |
|
| Shock resistance |
| DIN EN 60068-2-27 |
15 g (6 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
2 g (10...150 Hz) |
|
| MTTF [years] |
307 |
| UL approval |
|
| Mechanical data |
| Weight [g] |
90 |
| Materials |
stainless steel (1.4404 / 316L); brass (2.0401); PBT; PA; Sealing: FKM; |
| Displays / operating elements |
| Display |
| switching output |
1 x LED, yellow |
| operation |
1 x LED, green |
| IO-Link |
1 x LED, yellow |
|
| Accessories |
| Accessory required |
|
| Remarks |
| Remarks |
| For information on the maximum cable length please refer to the operating instructions. |
| To ensure the function according to technical datasheet and operating instructions the use of the following article is imperative: EVC843 |
|
| Pack quantity |
1 pcs. |
