Article no longer available - archive entry

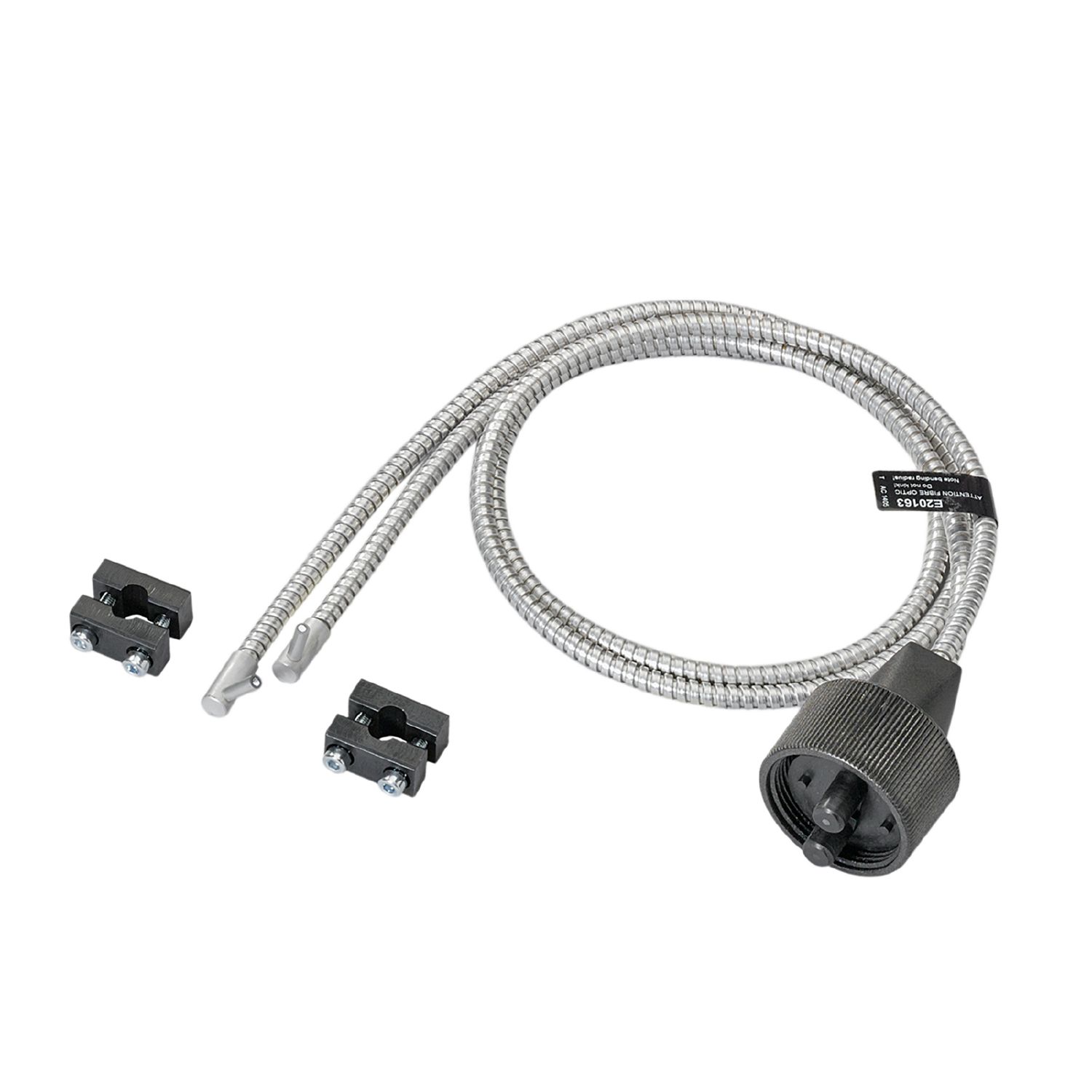

Fibre optic through beam sensor

FE-30-A-A-R3

E20163

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • For applications in high-temperature areas
  • Aluminium sheathing for use up to 290 °C
  • Installation in places where access is difficult
  • Angled type for use where space is restricted
  • Small bending radius
Download
Technische Details
Application
Function principle Through-beam sensor
Detection zone
Range with fibre optic amplifier type OIF
OIF
Range of fibre optics [mm] 100
Operating conditions
Ambient temperature [°C] -40...290
Mechanical data
Weight [g] 88.4
Version of sensing head angled
Sensing head diameter [mm] 3
Total length [mm] 600
Min. bending radius [mm] 30; (for fixed installation)
Fibre arrangement
Materials Adapter: PA
Fibre material glass
Fibre head material aluminium
Fibre sheath material aluminium
Accessories
Accessories (supplied)
E20103
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20163-00 — 04.06.2003 —
