| Application |
| Application |
hygienic and wet areas in the food industry |
| Daisy-chain function |
power supply; fieldbus interface |
| Electrical data |
| Operating voltage [V] |
18...31.6 DC; (AS-i) |
| Current consumption [mA] |
300...1500; (AUX) |
| Max. current consumption from AS-i [mA] |
100 |
| Protection class |
III |
| Max. current load total [A] |
1.1; (ports 1+2: 0,55 (AUX); ports 3+4: 0,55 (AUX)) |
| Additional voltage supply [V] |
20...30 DC; (AUX) |
| Inputs / outputs |
| Total number of inputs and outputs |
8; (configurable) |
| Number of inputs and outputs |
Number of digital inputs: 8; Number of digital outputs: 4 |
| Inputs |
| Number of digital inputs |
8; (IO-Link Port Class A: 4 x 2) |
| Sensor supply of the inputs |
AUX |
| Switching level high [V] |
11...30 |
| Switching level low [V] |
0...5 |
| Digital inputs protected against short circuits |
yes |
| Outputs |
| Number of digital outputs |
4; (IO-Link Port Class A: 4 x 1) |
| Max. current load per output [mA] |
300 |
| Short-circuit proof |
yes |
| Actuator supply outputs |
AUX |
| Interfaces |
| Communication interface |
IO-Link; AS-i |
| IO-Link Master |
| Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| Number of ports class A |
4 |
| Operating conditions |
| Ambient temperature [°C] |
-25...60 |
| Storage temperature [°C] |
-25...85 |
| Max. relative air humidity [%] |
90 |
| Protection |
IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) |
6P |
| Pollution degree |
2 |
| Chemical media |
| ISO 16750-5 |
HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 |
AA |
|
| Tests / approvals |
| EMC |
| EN 61000-6-2 |
|
| EN 61000-6-4 |
|
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 2009-04 |
|
| DIN EN 60068-2-6 2008-10 |
|
|
| MTTF [years] |
161 |
| AS-i classification |
| AS-i version |
2.11; 3.0 |
| Extended addressing mode |
no |
| AS-i profile |
S-7.4.E; (CTT1 input) |
| Number of AS-i devices |
1...5 |
| Further AS-i profiles |
| S-7.3.E |
: |
CTT1 input |
| S-7.3.2 |
: |
CTT1 output |
|

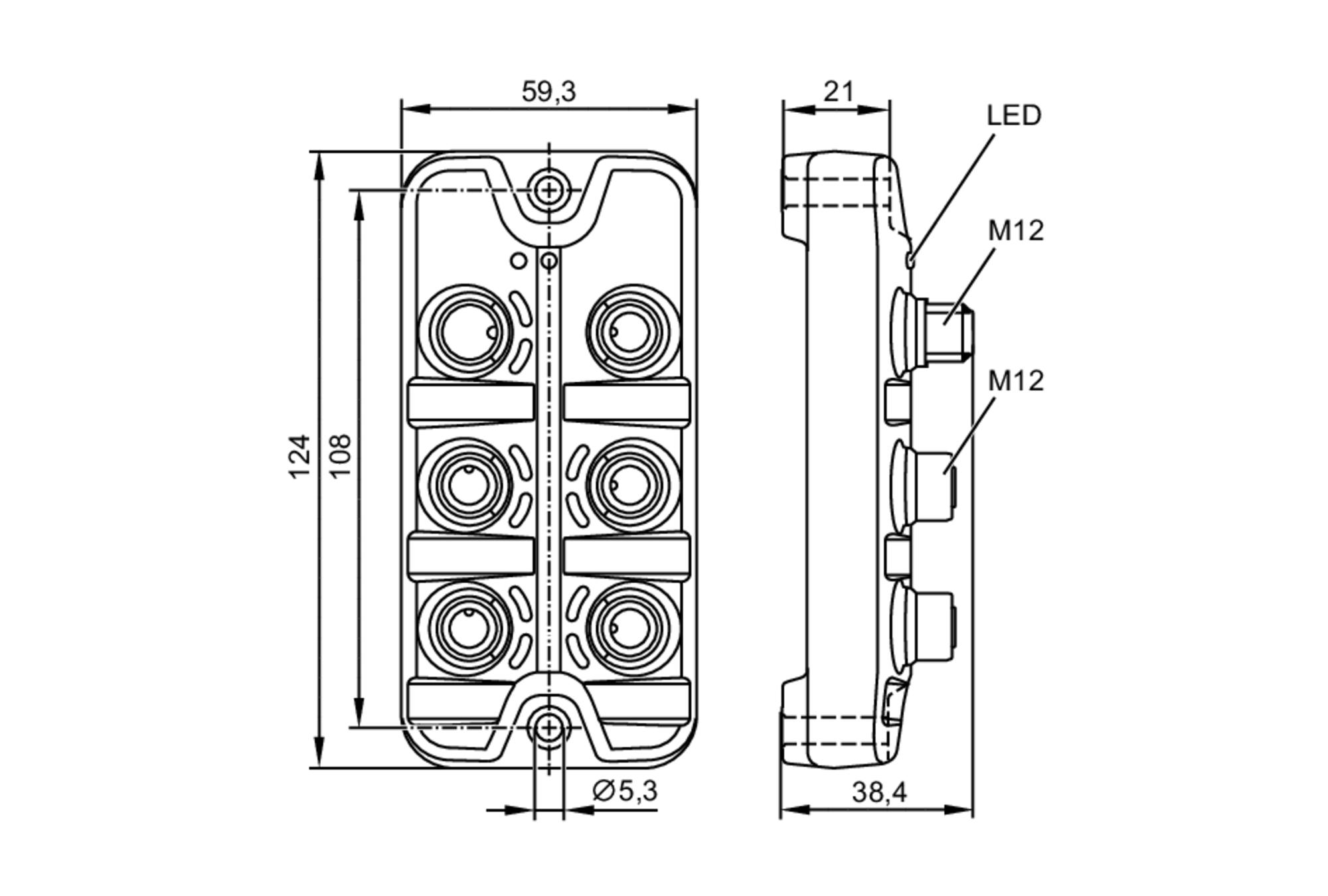

| Mechanical data |
| Weight [g] |
255 |
| Materials |
housing: PA grey; socket: stainless steel (1.4404 / 316L) |
| Electrical connection |
| Module connection |
M12 |
| Remarks |
| Remarks |
| For further information please see the operating instructions. |
|
| Pack quantity |
1 pcs. |
| Electrical connection - Process connection |
| IO-Link Port Class A X01...X04 |
Connector: 4 x M12; coding: A |
| Electrical connection - power supply IN |
| X21 |
Connector: 1 x M12; coding: A |
| Electrical connection - power supply OUT |
| X22 |
Connector: 1 x M12; coding: A |
