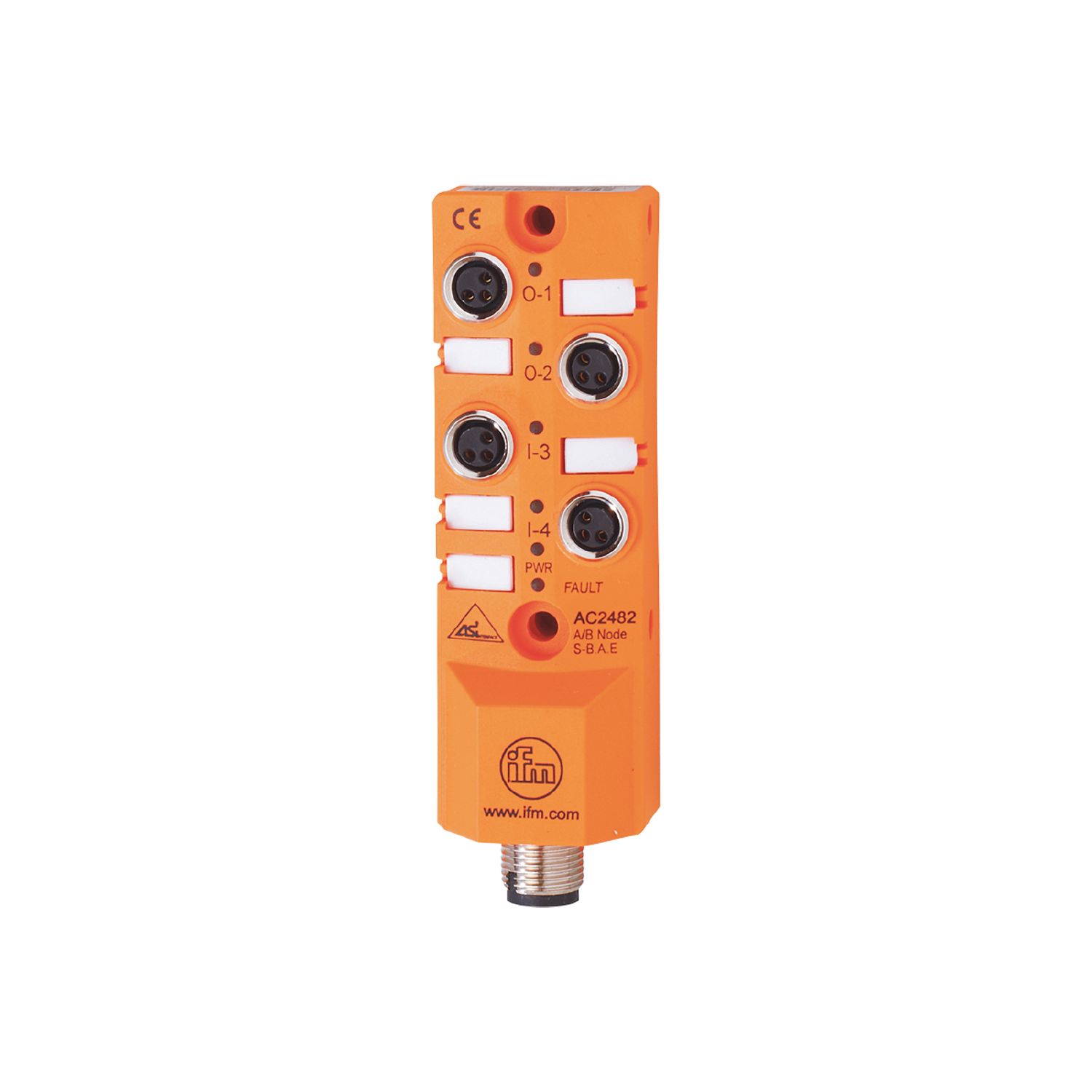

- AC2482
Application
Application | field installation |
---|
Electrical data
Operating voltage [V] | 26.5...31.6 DC |
---|---|
Max. current consumption from AS-i [mA] | 230 |
Integrated watchdog | yes |
Inputs / outputs
Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
---|
Inputs
Number of digital inputs | 2 |
---|---|
Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
Sensor supply of the inputs | AS-i |
Power supply [V] | 18...30; (DC) |
Max. total current rating of inputs [mA] | 180; (current load for all inputs and outputs: 180 mA) |
Switching level high [V] | > 11 |
Digital inputs protected against short circuits | yes |
Outputs
Number of digital outputs | 2 |
---|---|
Voltage range DC [V] | 18...30 |
Max. current load per output [mA] | 180; (current load for all inputs and outputs: 180 mA) |
Short-circuit proof | yes |
Electrically separated | no |
Actuator supply outputs | AS-i |
Operating conditions
Ambient temperature [°C] | -25...60 |
---|---|
Storage temperature [°C] | -25...60 |
Max. relative air humidity [%] | 90; (non condensing) |
Max. height above sea level [m] | 2000 |
Protection | IP 65; IP 67; IP 68 |
Tests / approvals
EMC |
|
||||
---|---|---|---|---|---|
MTTF [years] | 261 | ||||
UL approval |
|
AS-i classification
AS-i version | 2.11; 3.0 | |||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Extended addressing mode | yes | |||||||||||||||||||||||||||||||||||
AS-i master profile | M2; M3; M4 | |||||||||||||||||||||||||||||||||||
AS-i profile | S-B.A.E | |||||||||||||||||||||||||||||||||||
AS-i I/O configuration [hex] | B | |||||||||||||||||||||||||||||||||||
AS-i ID code [hex] | A.E | |||||||||||||||||||||||||||||||||||
AS-i certificate | 100901 | |||||||||||||||||||||||||||||||||||
Assignment of the data bits |
|
|||||||||||||||||||||||||||||||||||
Assignment of the parameter bits |
|
Mechanical data
Weight [g] | 111 |
---|---|
Type of mounting | backplane mounting |
Dimensions [mm] | 90.5 x 30 x 23.5 |
Materials | PBT |
Displays / operating elements
Display |
|
---|
Electrical connection
Module connection | M12 |
---|
Accessories
Items supplied |
|
||||
---|---|---|---|---|---|
Accessories (optional) |
|
Remarks
Remarks |
|
|||
---|---|---|---|---|
Pack quantity | 1 pcs. |
