| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 1 |
| Process connection |
Rp 3/4 |
| Application |
| Media |
Liquids; water; glycol solutions; oils; coolants |
| Medium temperature [°C] |
0...85 |
| Pressure rating [bar] |
40 |
| Electrical data |
| Operating voltage [V] |
10...30 DC; (to SELV/PELV) |
| Current consumption [mA] |
< 15 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 1 |
| Outputs |
| Total number of outputs |
1 |
| Output signal |
switching signal |
| Electrical design |
PNP |
| Number of digital outputs |
1 |
| Output function |
normally open |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
100 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Measuring/setting range |
| Setting range [l/min] |
1...25 |
| Accuracy / deviations |
| Repeatability [% of the final value] |
1 |
| Hysteresis [l/min] |
0,5...2 |
| Measuring error [% of the final value] |
± 5 |
| Response times |
| Response time [s] |
< 0.01 |
| Operating conditions |
| Ambient temperature [°C] |
0...60 |
| Storage temperature [°C] |
-15...80 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-3 |
|
|
| Shock resistance |
| DIN EN 60068-2-27 |
20 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
5 g (10...2000 Hz) |
|
| MTTF [years] |
15.78 |
| Mechanical data |
| Weight [g] |
474.5 |
| Materials |
brass chemically nickel-plated; PP; aluminium anodised; PA |
| Materials (wetted parts) |
stainless steel (1.4310 / 301); stainless steel (1.4301 / 304); PBT; brass chemically nickel-plated; PP; PPS; Polyolefin; O-ring: FKM |
| Process connection |
Rp 3/4 |
| Switching cycles mechanical |
10 million |
| Displays / operating elements |
| Display |
| switching status |
4 x LED, yellow |
|
| Accessories |
| Accessories (supplied) |
|
| Remarks |
| Remarks |
| Caution Do not turn the cap beyond the maximum value of the setting range. |
| All data refer to water (20 °C). |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12 |
| Diagrams and graphs |

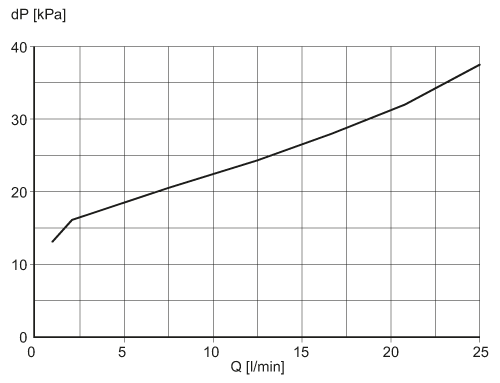

| Pressure loss |
|
dP
|
Pressure loss |
|
Q
|
volumetric flow quantity |
|
