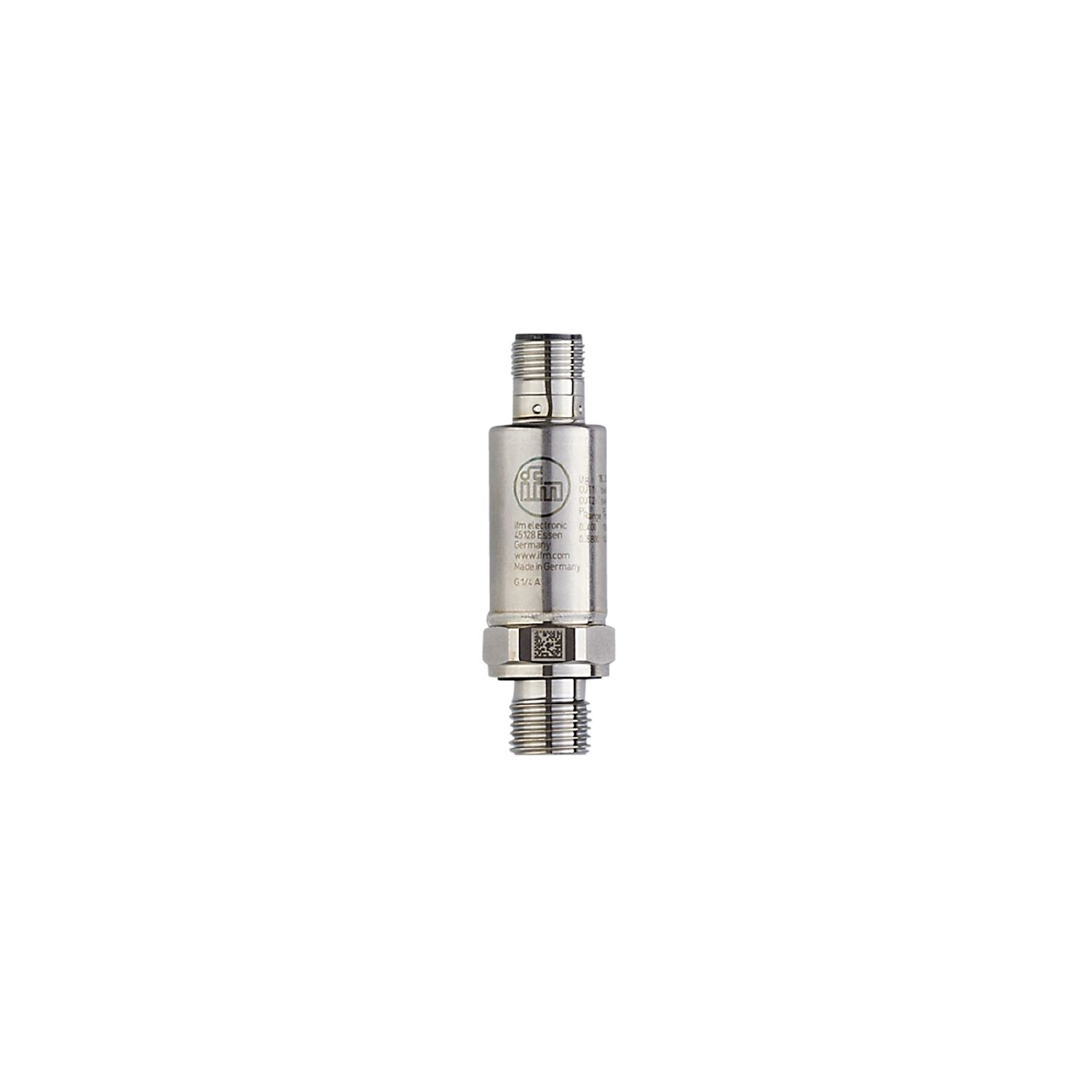

Name: PV8001
Brand: ifm
SKU: PV8001
Price: 174.00 EUR

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

0...250 bar

0...3626 psi

0...25 MPa

Process connection

threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5

Application

Measuring element

metallic thin film cell

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-40...90

Min. bursting pressure

1200 bar

17400 psi

120 MPa

Pressure rating

625 bar

9060 psi

62.5 MPa

Note on pressure rating

static

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 15
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	< 130
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range

0...250 bar

0...3626 psi

0...25 MPa

Set point SP

2.5...250 bar

37...3626 psi

0.25...25 MPa

Reset point rP

1.3...248.8 bar

18...3608 psi

0.13...24.88 MPa

In steps of

0.1 bar

1 psi

0.01 MPa

Factory setting

SP1 = 62.5 bar	rP1 = 57.5 bar	ou1 = Hno;
SP2 = 187.5 bar	rP2 = 182.5 bar	ou2 = Hno;
dS1/dS2 = 0 ms	dr1/dr2 = 0 ms
coF = 0 %	P-n = PnP	dAP= 60 ms

Temperature monitoring

Measuring range

-40...90 °C

-40...194 °F

Set point SP

-38...90 °C

-36.4...194 °F

Reset point rP

-40...88 °C

-40...190.4 °F

In steps of

0.1 °C

0.1 °F

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,5 (nach DIN EN 61298-2)
Repeatability [% of the span]	< ± 0,05; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,5; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation [% of the span]	< ± 0,2
Long-term stability [% of the span]	< ± 0,1; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C)
Temperature coefficient span [% of the span / 10 K]	< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C)

Temperature monitoring

Accuracy [K]	± 2 K + (0.1 x (ambient temperature - medium temperature))
Notes on the accuracy / deviation	temperature range -10 to 80 °C

Response times

Response time [ms]	< 3

Temperature monitoring

Dynamic response T05 / T09 [s]	< 80 / < 210 ( under ifm reference conditions )

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)

SIO mode

yes

Required master port type

A

Process data analogue

5

Process data binary

2

Min. process cycle time [ms]

4.5

IO-Link resolution pressure [bar]

0.1

IO-Link resolution pressure [MPa]

0.01

IO-Link resolution temperature [K]

0.2

IO-Link process data (cyclical)

function	bit length
pressure	16
temperature	16
device status	4
binary switching information	2

IO-Link functions (acyclical)

application specific tag; internal temperature; operating hours counter; switching cycles counter; Pressure peak counter; Temperature peak counter

Supported DeviceIDs

Type of operation	DeviceID
default	1213

Operating conditions

Ambient temperature [°C]	-40...90
Storage temperature [°C]	-40...100
Protection	IP 67; IP 69K

Tests / approvals

EMC

DIN EN 61326-1

Shock resistance

DIN EN 60068-2-27

500 g (1 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10...2000 Hz)

MTTF [years]

668

UL approval

UL Approval no.	J038
File number UL	E174189

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]	56.9
Housing	cylindrical
Dimensions [mm]	Ø 19 / L = 66
Materials	stainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PEI
Materials (wetted parts)	stainless steel (303/1.4305); stainless steel (630/1.4542/17-4 PH)
Min. pressure cycles	60 million; (at 1.2 times nominal pressure)
Tightening torque [Nm]	25...35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
Process connection sealing	FKM (DIN EN ISO 1179-2)
Restrictor element integrated	yes

Remarks

BFSL = Best Fit Straight Line

LS = limit value setting

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
