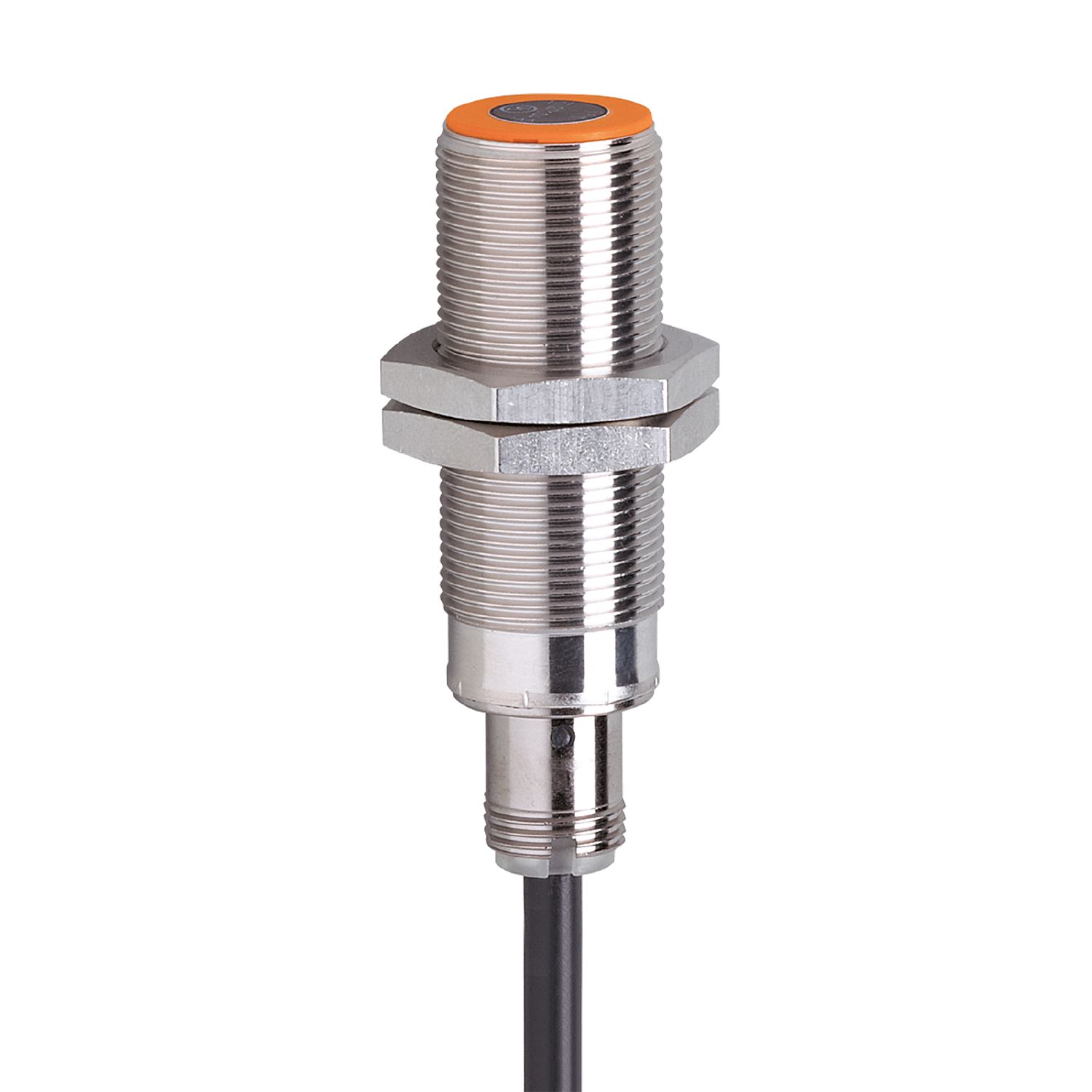

Inductive sensor

IG7106

IGK3005-ANKG/I/2M

Inductive sensor

IG7106

IGK3005-ANKG/I/2M

  • Excellent price/performance ratio
  • Robust metal housing for use in harsh industrial environments
  • Very high switching frequency
  • Clearly visible indication of the switching status
discontinued article
Alternative articles: IGS246 Product comparison: IG7106 / IGS246 When selecting an alternative article and accessories please note that technical data may differ!
{{ifmVariantName}}

{{accessory.headline}}
{{'SHOW_ALL' | translate}}

{{'DID_YOU_KNOW' | translate}}

{{productContentTeaser[0].headline}}

{{productContentTeaser[0].summary}}

PDF data sheet
  • ce
  • eac
  • ul
Technical details
Product characteristics
Electrical design NPN
Output function normally open
Sensing range [mm] 5
Housing threaded type
Dimensions [mm] M18 x 1 / L = 61
Electrical data
Operating voltage [V] 15...30 DC
Current consumption [mA] < 15
Protection class III
Reverse polarity protection yes
Outputs
Electrical design NPN
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 400
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range [mm] 5
Real sensing range Sr [mm] 5 ± 10 %
Operating distance [mm] 0...4.05
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr] 1...20
Switch point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 3 V
EN 55011 emission class B
MTTF [years] 1288
UL approval
Ta -25...70 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current
File number UL E174191
Mechanical data
Weight [g] 118.7
Housing threaded type
Mounting flush mountable
Dimensions [mm] M18 x 1 / L = 61
Thread designation M18 x 1
Materials housing: brass nickel-plated; sensing face: PBT; lock nuts: brass
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²
