AS-Interface flat cable insulation displacement connector
E75471
FC Quick Connect M12 stainless
AS-Interface flat cable insulation displacement connector
E75471
FC Quick Connect M12 stainless
Electrical data
| Operating voltage [V] | < 42 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Storage temperature [°C] | -25...75 |
| Protection | IP 67 |
Tests / approvals
| UL approval |
|
|---|
Mechanical data
| Weight [g] | 18.45 |
|---|---|
| Materials | housing: PA; O-ring: EPDM; Lock nut: stainless steel (303/1.4305); contact pins: bronze tin-plated |
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector: M12; coding: A; Tightening torque: 0.4...0.6 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E75471-00 — 02.05.2022 —
E75471 –
FC Quick Connect M12 stainless
- 1

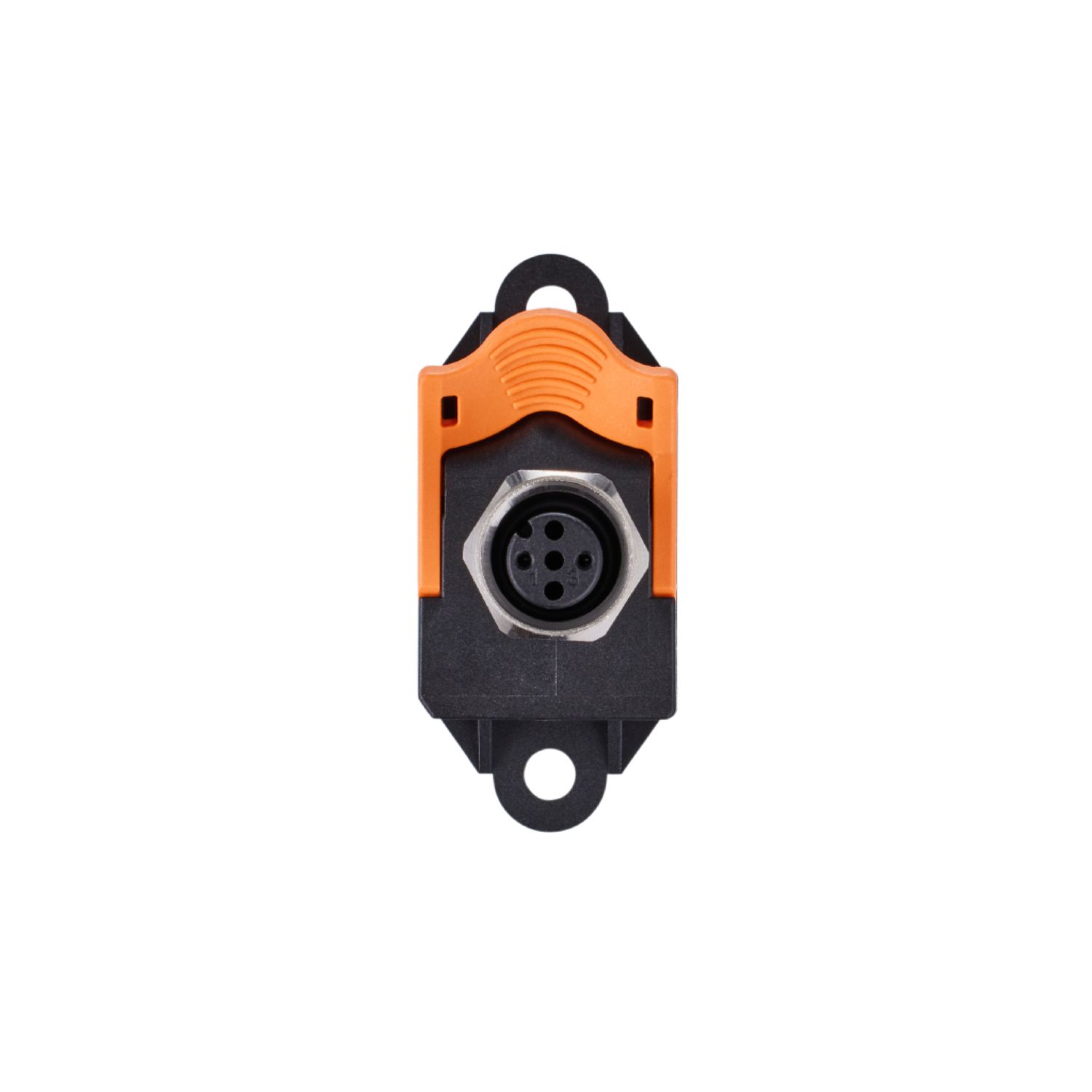

- hole for cable ties
Electrical connection
- when connected to yellow AS-i flat cable
- 1
- AS-i +
- 2
- n.c.
- 3
- AS-i -
- 4
- n.c.
- 5
- n.c.
- when connected to black flat cable
- 1
- AUX +
- 2
- n.c.
- 3
- AUX -
- 4
- n.c.
- 5
- n.c.
Connector: M12; coding: A; Tightening torque: 0.4...0.6 Nm
