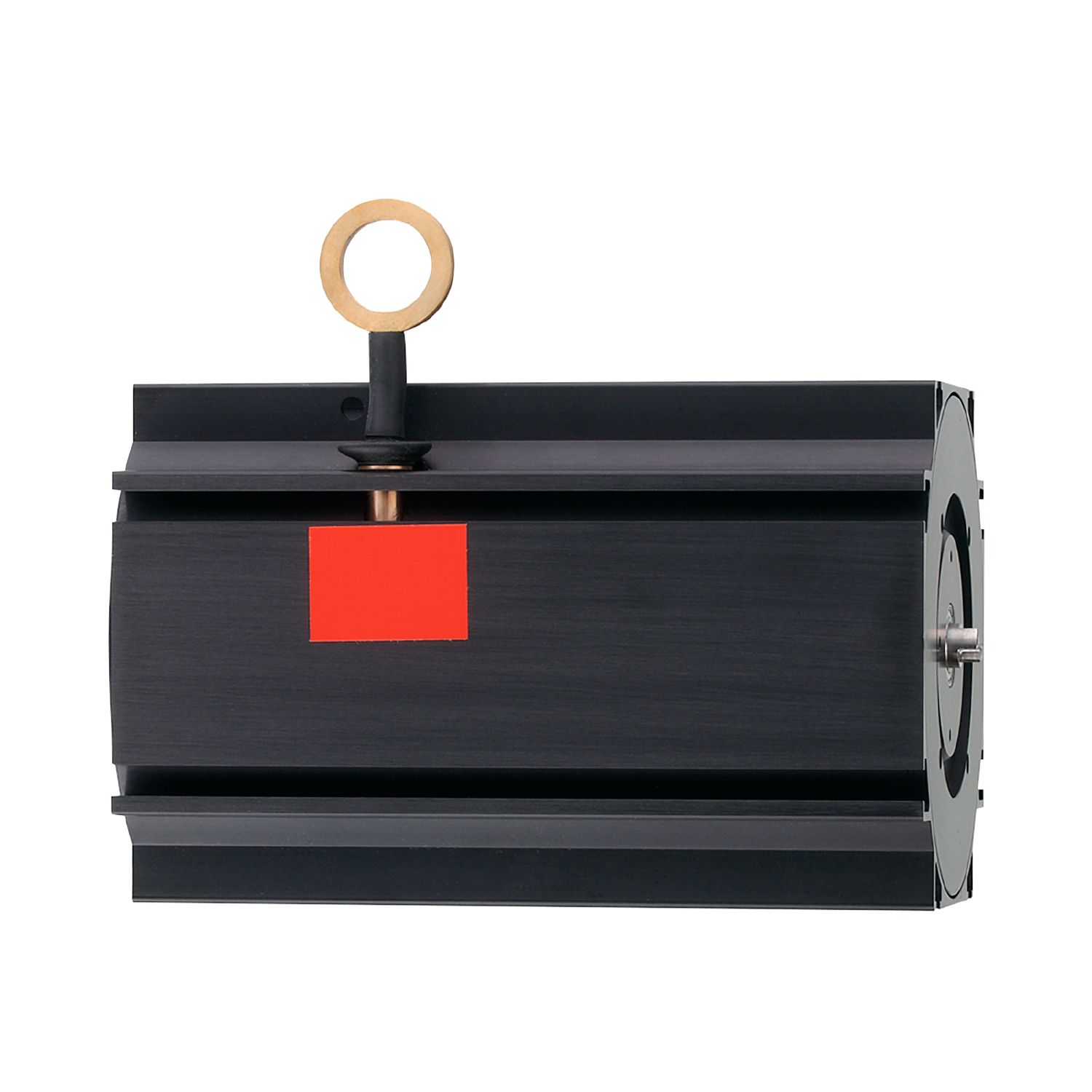

- E61444
draw-wire mechanism for encoders
E61444
DRAW WIRE 15000
draw-wire mechanism for encoders
E61444
DRAW WIRE 15000
Product characteristics
| Shaft design | solid shaft |
|---|---|
| Shaft diameter [mm] | 6 |
Application
| Design | for encoders with 58 mm synchro flange and 6 mm solid shaft |
|---|
Accuracy / deviations
| Accuracy | ± 0.01 % FSO |
|---|---|
| Repeatability | ± 0,001 % FSO |
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Storage temperature [°C] | -40...80 |
| Storage humidity [%] | 5...95; (non condensing) |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
Mechanical data
| Weight [g] | 3824.8 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 115 x 180.7 x 115 | ||||||||||||
| Top flange diameter [mm] | 58 | ||||||||||||
| Materials | housing: aluminium anodised; wire: stainless steel polyamide coated | ||||||||||||
| Shaft design | solid shaft | ||||||||||||
| Shaft diameter [mm] | 6 | ||||||||||||
| Max. measuring length [mm] | 15000 | ||||||||||||
| Wire drum circumference [mm] | 315 | ||||||||||||
| Wire diameter [mm] | 1 | ||||||||||||
| Wire connection | 20,2; (eyelet) | ||||||||||||
| Wire properties |
|
||||||||||||
| Fixing flange | synchro-flange |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Diagrams and graphs
|
|
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E61444-00 — 20.08.2021 —
